LC (Male) to LC (Male), OM3, LSZH, Duplx, Aqua

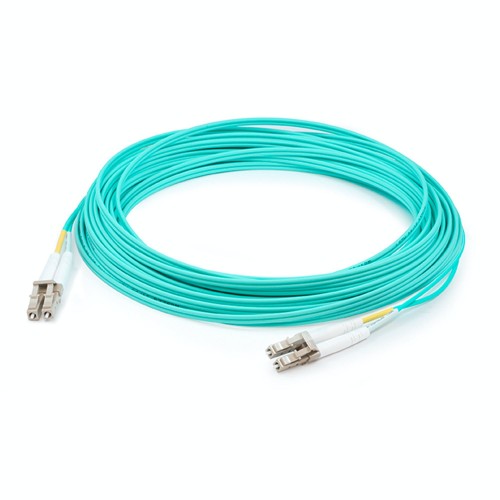

AddOn Networks ADD-LC-LC-7M5OM3LZ InfiniBand/fibre optic cable 7 m Aqua colour
Sale price
£11.12
Regular price
£19.74
Taxes included.
Shipping calculated at checkout.
Details
Description
This is LC (male) to LC (male) aqua duplex LSZH fiber patch cable. An OM3 cable has a core size of 50 microns that supports 10 Gigabit Ethernet at lengths measuring up to 300 meters, and 40 Gigabit or 100 Gigabit Ethernet measuring up to 100 meters. This optical fiber, nonconductive, LSZH cable is best suited for use in interior fiber-optic applications. A duplex cable is a two-strand fiber optic patch cable that works best with transceivers that both transmit and receive. Our patch cables are 100% compliant for all of your networking needs. Our products are guaranteed by federal law to not affect or void OEM warranties.Specifications
| Features | |
|---|---|
| Connector material | Ceramic |
| Compressive strength | 10 |
| Fibre optic type | OM3 |
| Return loss | 30 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 7 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.35 dB |
| Data transfer rate | 100 Gbit/s |
| Ethernet interface type | 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Wavelengths supported | 1310,1550 nm |
| Product colour | Aqua colour |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Certification | CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 |
| Sustainability | |
| Doesn't contain | Halogen |
| Certificates | |
| Certification | CE, ISO/IEC 11801, TIA/EIA-568-C.3, TIA-604-5 (FOCIS-5), TIA/EIA-568-C.1, GR-409-CORE, ICEA S-83-596 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Weight & dimensions | |
| Cable diameter | 1.6 mm |
| Cable length | 7 m |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 7 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.35 dB |
| Doesn't contain | Halogen |
| Compliance certificates | RoHS |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
