24-port GbE, Total 26, 100/1000 Mbps, SFP 100/1000 Mbps 2, 52 Gbps, 39 Mpps, 525 K byte, 8 K MAC, 9 K byte, 100 - 240 V AC, 50/60 Hz, 16 W, 440 x 131 x 44 mm, 2.09 kg, GB
The GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.

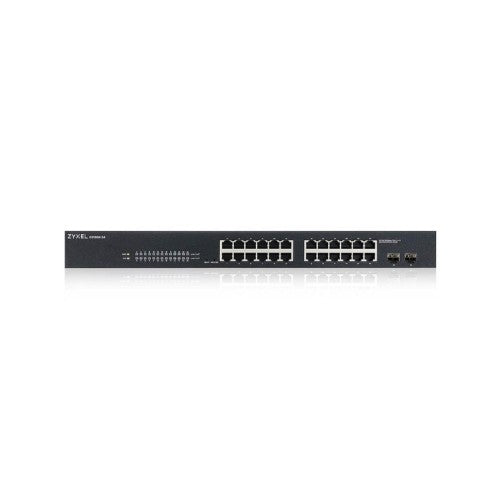

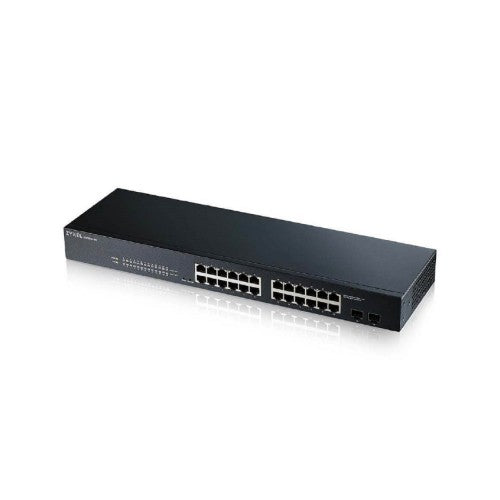

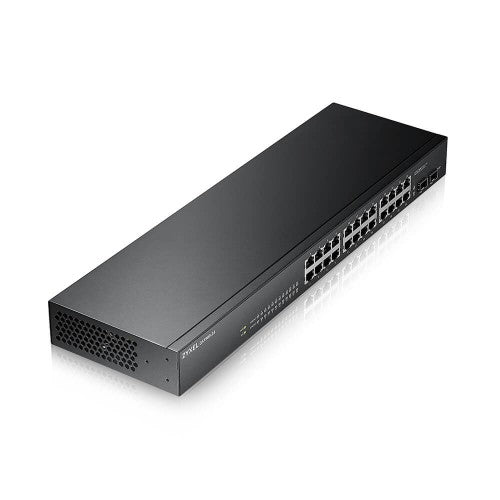

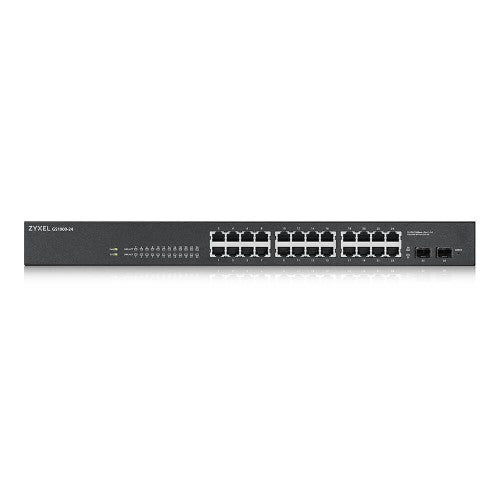

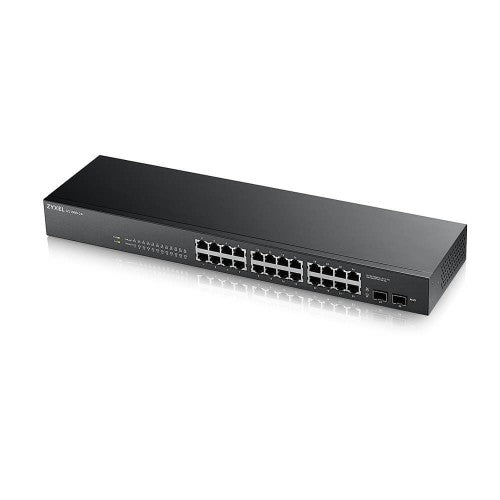

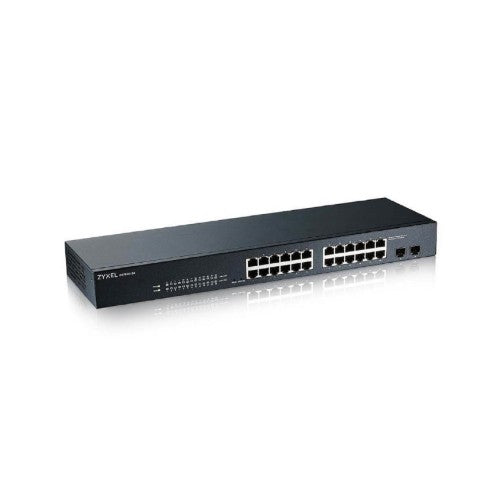

Zyxel GS-1900-24 v2 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black
£101.77
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Start up button
- VLAN
- QoS
- Link aggregation
Description
Near silent operationThe GS1900 Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating. It is ideal for your office environment.
Intelligent PoE+ powers more devices
PoE models (8HP/10HP/24EP/24HPv2/48HPv2) come with default PoE consumption mode which delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. All of them support the IEEE 802.3at providing a maximum of 30W per port.
Speedy Gigabit performance—built for SMBs
The GS1900 is a series of switches with full non-blocking bandwidth of up to 1 Gbps per port. An ideal upgrade from an unmanaged switch, it’s a great choice for SMBs that want to enjoy high-speed business network applications at full wired non-blocking speed.
Easy and intuitive management
The Smart Managed GS1900 Series switch feature with web-based interface to manage advanced functions such as VLAN, QoS, IGMP Snooping, Link Aggregation (LAG), IPv6 and DoS prevention easily. Also, the user-friendly wizard helps to walk through setup, configuration and even advanced settings quickly.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| MIB support | RFC 1213 MIB II, RFC 2819 RMON (group 1, 2, 3, 9), RFC 1215, RFC 1493 |
| Switch layer | L2 |
| Network | |
| IGMP snooping | Yes |
| MAC address auto-learning supported | Yes |
| Networking standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| 10G support | No |
| Virtual LAN features | Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN, VLAN Identifier ( VLAN ID), Voice VLAN |
| Performance | |
| Packet buffer memory | 0.525 MB |
| Stackable | Yes |
| Mean time between failures (MTBF) | 432.673 h |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power connector | AC-in jack |
| Power consumption (max) | 16 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Mean time between failures (MTBF) | 432.673 h |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.525 MB |
| MAC address table | 8000 entries |
| Switching capacity | 52 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 39 Mpps |
| Security | |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| Authentication type | RADIUS, TACACS+ |
| DHCP features | DHCP client |
| Certificates | |
| Certification | EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant |
| Memory | |
| Packet buffer memory | 0.525 MB |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Certification | EMC ■ CE, FCC, C-Tick, Class A (GS1900-24/24EP/24HPv2/48/ 48HPv2) ■ CE, FCC, C-Tick, Class B (GS1900-8/8HP/10HP/16/24E) ■ BSMI CNS13438 • Safety ■ LVD EN60950-1 ■ BSMI CNS14336-1 ■ CB IEC60950-1 (GS1900-8HP/10HP/16/24E/24) • RoHS compliant |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 55 BTU/h |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 131 mm |
| Height | 44 mm |
| Weight | 2.09 kg |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Package width | 561 mm |
| Package depth | 217 mm |
| Package height | 82 mm |
| Package weight | 2.85 kg |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
