31.5'', TFT LCD (LED), PCAP, clear, 16:9, 1920 x 1080 @ 60hz, 8 ms, HDMI, VGA, 747.3x452.7x55 mm
Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Brilliant, interactive TouchPro PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Designed for easy integration.
Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

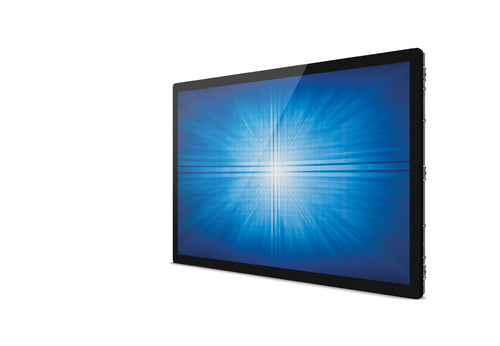

Elo Touch Solutions 3263L 80 cm (31.5") LED 500 cd/m² Full HD Black Touchscreen
£679.81
Taxes included.
Shipping calculated at checkout.
Details
Description
The perfect touchscreen for any enclosure.Elo's 3263L 32-inch full HD open-frame delivers a state-of-the-art slim form factor designed for easy integration into enclosures and kiosks. Whether for self-order and self-checkout kiosks or industrial controls, operating room control boards and wayfinding solutions, Elo’s commercial-grade interactive displays offer the versatility to add touch to your solution.
Brilliant, interactive TouchPro PCAP display.
The 3263L offers anti-glare or anti-friction models with edge-to-edge glass and up to 40 simultaneous touches for an enhanced, tablet-like experience.
Designed for easy integration.
Mount the 3263L touchscreen monitor in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design.
Get the viewing experience you want to see.
Whether viewing straight on or at an angle, close-up or from a distance, Elo’s touchscreen displays offer optimal clarity for the viewing experience.
Place your touchscreen behind an extra layer of protection.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo’s TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.
Specifications
| Display | |
|---|---|
| Panel type | TFT |
| Display number of colours | 16.78 million colours |
| Number of simultaneous touchpoints | 40 |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 500 cd/m² |
| HD type | Full HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Native aspect ratio | 16:9 |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Projected capacitive system |
| Ports & interfaces | |
| HDMI version | 1.4 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 400 x 200 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Power | |
| Power consumption (off) | 0.2 W |
| Power consumption (typical) | 44.3 W |
| Power consumption (standby) | 0.61 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 26 kWh |
| Packaging data | |
| Package width | 1000 mm |
| Package depth | 306 mm |
| Package height | 680 mm |
| Package weight | 17 kg |
| Cables included | AC, HDMI, USB, VGA |
| Packaging content | |
| Cables included | AC, HDMI, USB, VGA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
| VESA mounting | Yes |
| Panel type | TFT |
| Depth (without stand) | 55 mm |
| Number of simultaneous touchpoints | 40 |
| Weight (without stand) | 11 kg |
| Height (without stand) | 452.7 mm |
| Features | |
| Wall mountable | Yes |
| Other features | |
| Panel type | TFT |
| Depth (without stand) | 55 mm |
| Number of simultaneous touchpoints | 40 |
| Weight (without stand) | 11 kg |
| Height (without stand) | 452.7 mm |
| Viewable size, vertical | 39.3 cm |
| Viewable size, horizontal | 69.8 cm |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LED |
| Digital vertical frequency | 47 - 63 Hz |
| Digital horizontal frequency | 31.5 - 80 kHz |
| Built-in microphone | No |
| Built-in camera | No |
| Maximum refresh rate | 60 Hz |
| Energy efficiency scale | A to G |
