10G, 60W PoE, RJ-45, 176x67x38.3 mm

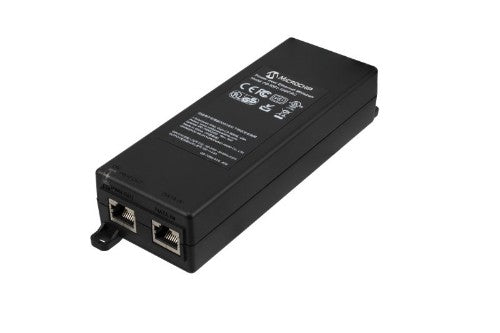

Microchip Technology PD-9501-10GC/AC 10 Gigabit Ethernet
MPN:
PD-9501-10GC/AC-UK
Out of stock
Price excluding VAT:
Exc Vat £74.13
Price including VAT:
Inc Vat £88.96
Shipping calculated at checkout.
Details
Key Features
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps & 10G
- Power input: AC
- Power cord options: US, EU (Europe), UK, EK (Europe and UK), BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3bt Type 3 (PoE), RoHS compliant, WEEE compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/EN/IEC 60950-1 (Ed.2)
Description
The single port PoE midspan is a high-power solution for remote powering of current and emerging high power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac Access Points, pan-tilt zoom (PTZ) cameras and videophones. The PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compatible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 GbE devices such as wireless IEEE 802.11ac access points.Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
| Product colour | Black |
| Networking standards | IEEE 802.3bt |
| LED indicators | Yes |
| Certification | CE, WEEE FCC 15,B EN 55032 B EN 55024 VCCI |
| Mean time between failures (MTBF) | 200000 h |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Total Power over Ethernet (PoE) budget | 60 W |
| Power over Ethernet (PoE) power per port | 60 W |
| Technical details | |
| Number of products included | 1 pc(s) |
| Power over Ethernet (PoE) | Yes |
| Operating altitude | -304.8 - 2000 m |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | -304.8 - 2000 m |
| Weight & dimensions | |
| Weight | 330 g |
| Width | 176 mm |
| Depth | 67 mm |
| Height | 38.3 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Certificates | |
| Certification | CE, WEEE FCC 15,B EN 55032 B EN 55024 VCCI |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
