9SX UPS, Double conversion, 700 VA, 630 W, C14 In, 6 x C13 Out, Tower, with BS input cord

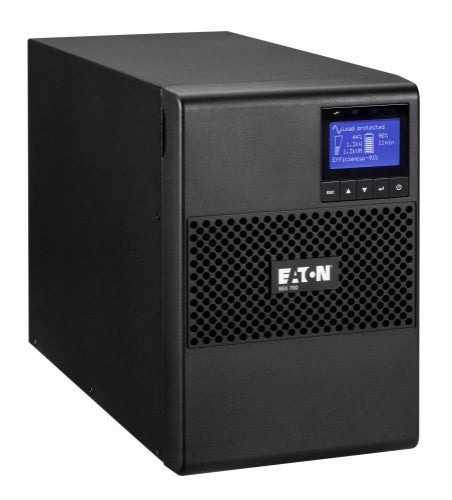

Eaton 9SX700IBS uninterruptible power supply (UPS) Double-conversion (Online) 0.7 kVA 630 W 6 AC outlet(s)
Sale price
£572.32
Regular price
£797.00
Taxes included.
Shipping calculated at checkout.
Details
Description
Specifications
| Power | |
|---|---|
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 630 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 87.4% |
| Power factor | 0.9 |
| Output power capacity | 0.7 kVA |
| Efficiency (ECO mode) | 93% |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Output power | 630 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 87.4% |
| Power protection features | Overdischarge |
| Power factor | 0.9 |
| Noise level | 40 dB |
| Output power capacity | 0.7 kVA |
| Efficiency (ECO mode) | 93% |
| ECO mode | Yes |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| USB port type | USB Type-B |
| Battery | |
| Number of batteries supported | 2 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 5 min |

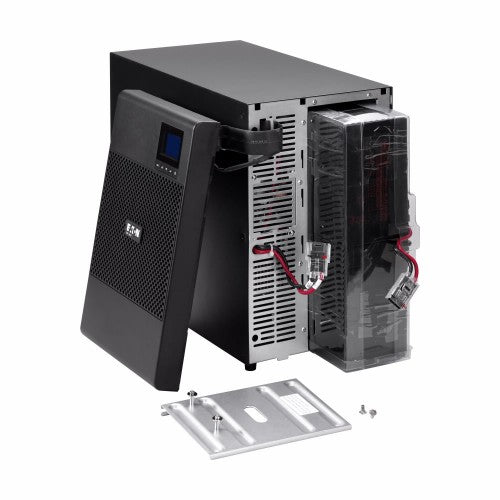

| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Storage relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 11.9 kg |
| Width | 296 mm |
| Height | 377 mm |
| Depth | 570 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | No |
| Certificates | |
| Certification | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | No |
