9PX UPS, Double conversion, 3000 VA, 3000 W, Input C20, Outputs 8 x C13 & 2 x C19, Rack/tower, 2U, with BS input cord
Eaton 9PX3000IRT2UBS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 10 AC outlet(s)
Sale price
£2,155.77
Regular price
£2,865.47
Taxes included.
Shipping calculated at checkout.
Details
Description
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.Specifications
| Power | |
|---|---|
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 3000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 98% |
| Ports & interfaces | |
| Cable length | 1.8 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

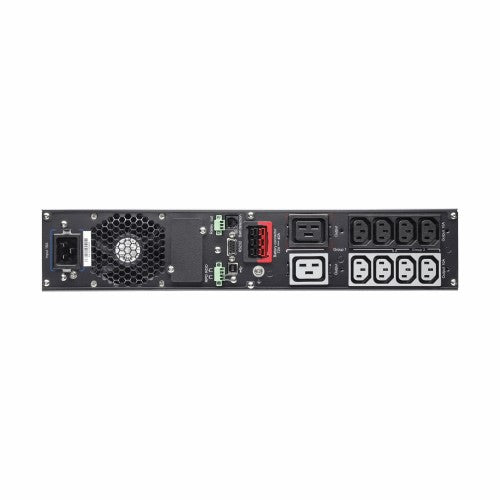

| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Power protection features | Overdischarge |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 3000 W |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Power protection features | Overdischarge |
| Power factor | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 40 dB |
| Output power capacity | 3 kVA |
| Efficiency (On-line mode) | 98% |
| Input frequency | 40/70 Hz |
| Battery | |
| Number of batteries supported | 6 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 3 min |
| Automatic battery test | Yes |
| Design | |

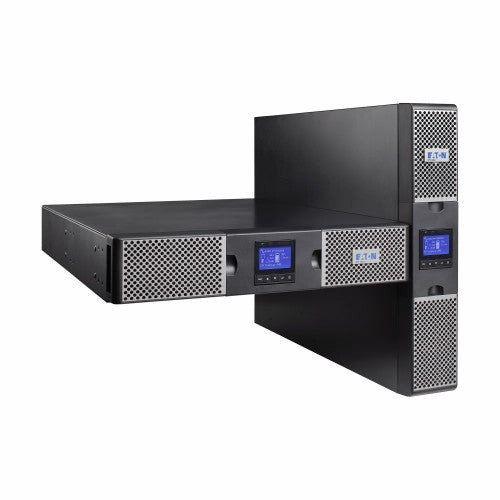

| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |
| Certification | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC |
| Cable length | 1.8 m |

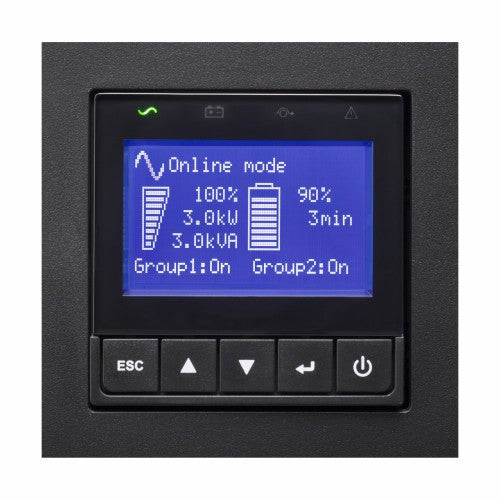

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 26.3 kg |
| Width | 580 mm |
| Height | 290 mm |
| Depth | 770 mm |
| Packaging data | |
| Quick installation guide | Yes |
| Cables included | Input power cable, USB cable |

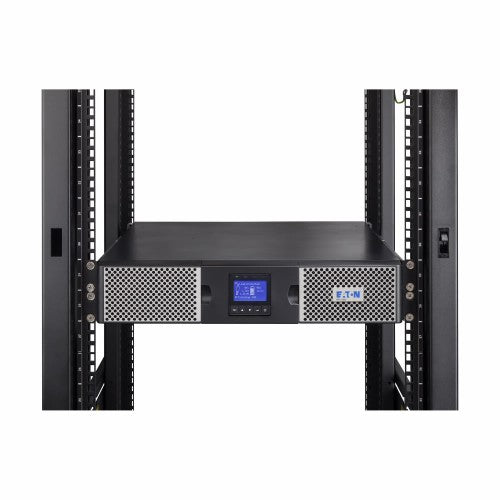

| Rack mount kit | Yes |
| Certificates | |
| Certification | IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 cULus EAC |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | Input power cable, USB cable |
| Rack mount kit | Yes |
