100Mbps, 18dBi, PoE, MIMO, DFS, 1G LAN, 215x215x77 mm
It can be used in a Point to Point or Point to MultiPoint system.
The SIL LITE is a highly dependable radio that, due to being enclosed within a metal shell, offers enhanced protection from external electromagnetic interference and other environmental factors, such as lightening strikes and power surges. The SIL LITE is designed for long range wireless links and proven to operate in extremely harsh conditions.
The SIL LITE uses the highly secure 256 AES encryption method for data transmission and has a built in dual-polarised 18dBi antenna. It is available in 100Mbps, 240Mbps or 500Mbps Full Duplex versions.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.

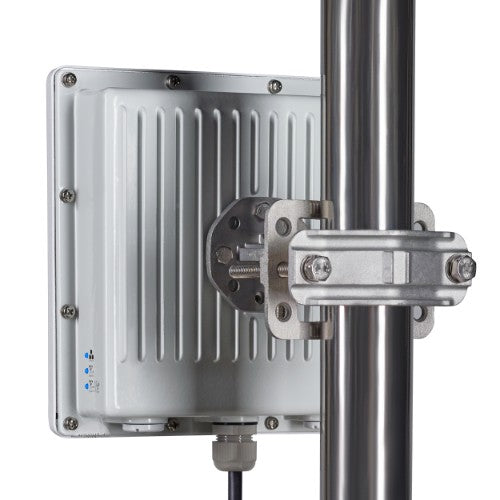

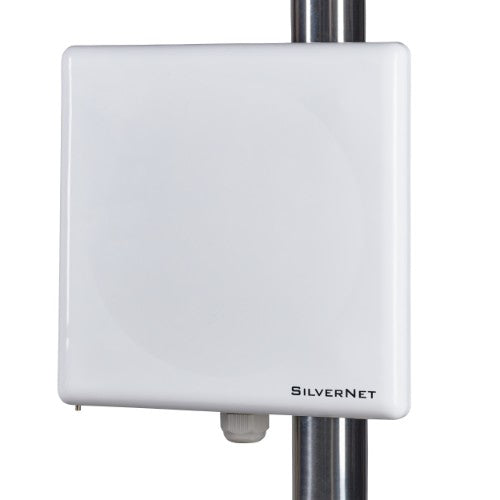

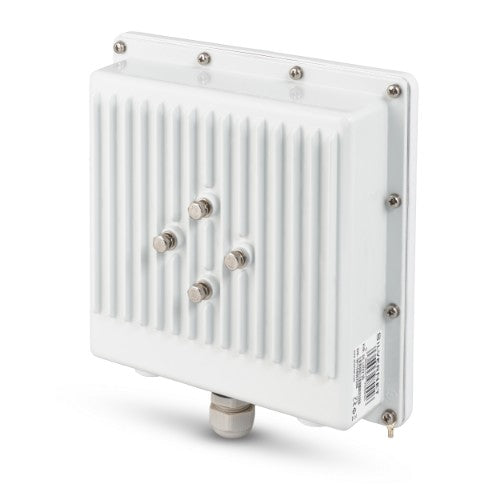

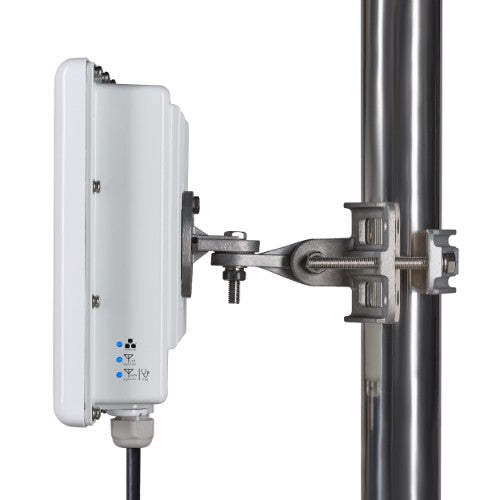

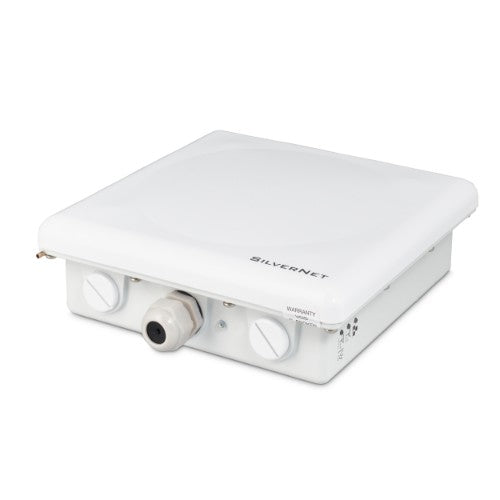

SilverNet SIL LITE bridge/repeater Network bridge 100 Mbit/s White
MPN:
SIL LITE
Out of stock
Price excluding VAT:
Exc Vat £629.38
Price including VAT:
Inc Vat £755.26
Shipping calculated at checkout.
Details
Key Features
- Point-to-Point Outdoor Wireless Bridge Up to 6KM
- Point-to-MultiPoint Client
- Up to 100Mbps
- Integrated 18dBi Antenna
- Designed for Outdoor applications
- SNMP
- AES Encryption up to 256bit
- MIMO with spatial multiplexing
- DFS (Dynamic Frequency Selection)
- TPC (transmit Power Control)
- PoE 802.3af
- Software Upgradeable to 240Mbps or 500Mbps
Description
The SIL LITE is a single radio offering up to 100Mbps at distances up to 6km.It can be used in a Point to Point or Point to MultiPoint system.
The SIL LITE is a highly dependable radio that, due to being enclosed within a metal shell, offers enhanced protection from external electromagnetic interference and other environmental factors, such as lightening strikes and power surges. The SIL LITE is designed for long range wireless links and proven to operate in extremely harsh conditions.
The SIL LITE uses the highly secure 256 AES encryption method for data transmission and has a built in dual-polarised 18dBi antenna. It is available in 100Mbps, 240Mbps or 500Mbps Full Duplex versions.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
Specifications
| Data transmission | |
|---|---|
| Supported data transfer rates | 100, 240, 500Mbps |
| Maximum data transfer rate | 100 Mbit/s |
| Maximum transfer distance | 6000 m |
| Antenna | |
| Antennas quantity | 1 |
| Antenna gain level (max) | 18 dBi |
| Pan/tilt-axis range | 180° |
| Antenna design | Internal |
| Wireless LAN features | |
| Transmission gain | 0 - 18 dB |
| Signal strength | -40 dBm |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Outdoor range | 6000m |
| Frequency band | 5.1 - 5.8 GHz |
| Indoor range | 6000m |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Channels quantity | 25 channels |
| Antenna gain level (max) | 18 dBi |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Output power (dBm) | 26 |
| Network | |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Static IP | Yes |
| Dynamic IP | Yes |
| Full duplex | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN interface type | Gigabit Ethernet |
| Outdoor range | 6000m |
| Frequency band | 5.1 - 5.8 GHz |
| Supported data transfer rates | 100, 240, 500Mbps |
| Channels quantity | 25 channels |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Security | |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMPv2, SSH |
| MAC address filtering | Yes |
| Authentication method | WPA2 AES |
| Management features | |
| Management protocols | SNMP V2 |
| Web-based management | Yes |
| DHCP client | Yes |
| LED indicators | LAN, Signal strength |
| Features | |
| Product type | Network bridge |
| Product colour | White |
| Reset button | Yes |
| Surge protection | Yes |
| Quality of Service (QoS) support | Yes |
| Network Time Protocol (NTP) client | Yes |
| International Protection (IP) code | IP67 |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 60000 h |
| LED indicators | LAN, Signal strength |
| Country of origin | United Kingdom |
| Remote control function | Yes |
| Automatic Transmit Power Control (ATPC) | Yes |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Power | |
| AC input voltage | 100-240 V |
| Power plug type | Type G |
| Power consumption (max) | 16 W |
| Power source type | DC, PoE |
| DC input voltage | 24-48/48-56 V |
| Power supply | 15.4 W |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 6 W |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -4 - 158 °F |
| Endurance | |
| Mean time between failures (MTBF) | 60000 h |
| Certificates | |
| Certification | CE, FCC |
| Technical details | |
| Product colour | White |
| Wall mountable | Yes |
| Operating temperature (T-T) | -4 - 158 °F |
| Quantity per pack | 1 pc(s) |
| Country of origin | United Kingdom |
| Weight & dimensions | |
| Weight | 1.6 kg |
| Width | 215 mm |
| Depth | 215 mm |
| Height | 77 mm |
| Antenna diameter | 30 cm |
| Packaging content | |
| Quick installation guide | Yes |
| Grounding | Yes |
| PoE+ Injector(s) | Yes |
| Mounting bracket(s) included | Yes |
| Antenna included | Yes |
| Power supply included | Yes |

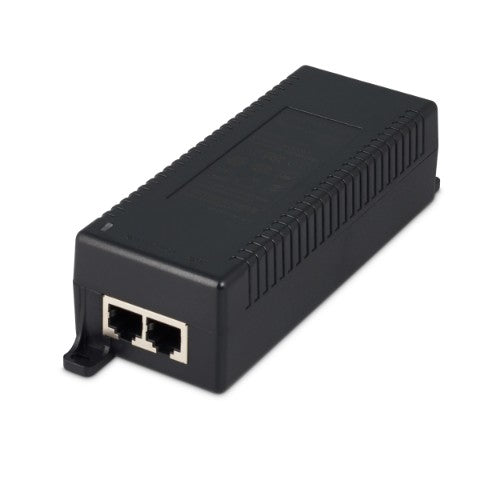

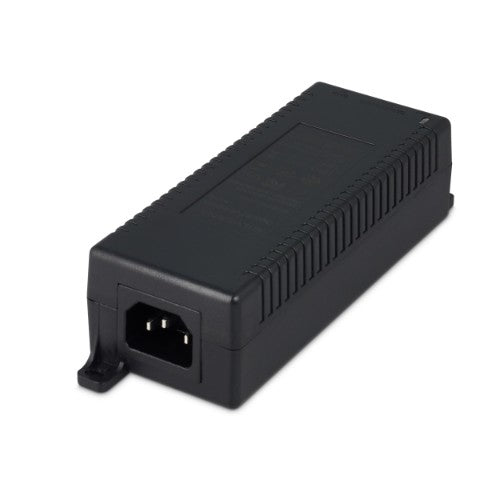

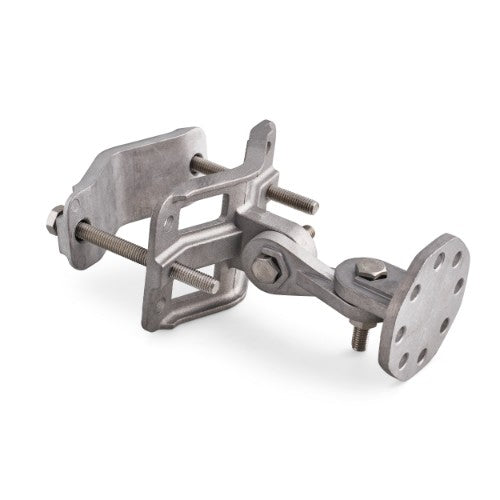

| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Packaging data | |
| Package width | 307 mm |
| Package weight | 2.74 kg |
| Package type | Box |
| Package height | 100 mm |
| Package depth | 395 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
