3x 1G RJ-45, SFP, 60W PoE, 80x36x160 mm
The media converter offers unique solution to power long-range installations where the data input comes over fiber. Standard SFP modules can be used (SM or MM modules).
The 9501GCS complies with IEEE 802.3bt type 3 and will provide PoE after detection, the PoE port will provide the power level needed by the end device offering a safe solution for all types of applications starting with IEEE 802.3af loads and up to IEEE 802.3bt 4-pairs loads.

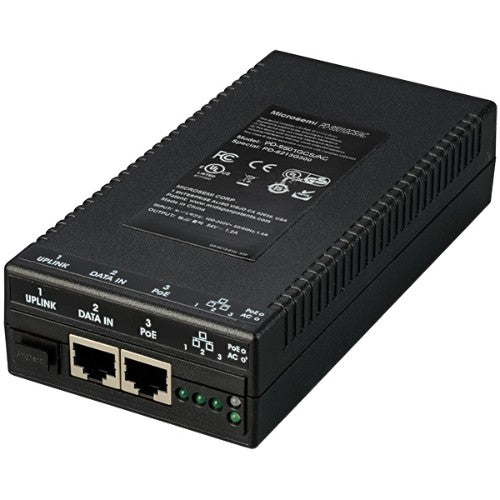

Microchip Technology PD-9501GCS/AC-EU PoE adapter Gigabit Ethernet 54 V
MPN:
PD-9501GCS/AC-EU
Out of stock
Price excluding VAT:
Exc Vat £193.33
Price including VAT:
Inc Vat £232.00
Shipping calculated at checkout.
Details
Key Features
- Media converter – SFP to PoE
- IEEE 802.bt type 3 compliant
- IEEE 802.3af/at backward
- compatible
- All 3 ports can be active
- simultaneously
- Output power of 60W over 4-pairs
- is guaranteed
- Supports 10/100/1000Base-T
- Safe: low-power devices receive
- only the power they need
Description
The Microchip PD-9501GCS is a Media converter with PoE functionality. It has total of 3 ports that can be active simultaneously. Data input can be via SFP module or via the RJ45 port, the output will be data and power up to 60W.The media converter offers unique solution to power long-range installations where the data input comes over fiber. Standard SFP modules can be used (SM or MM modules).
The 9501GCS complies with IEEE 802.3bt type 3 and will provide PoE after detection, the PoE port will provide the power level needed by the end device offering a safe solution for all types of applications starting with IEEE 802.3af loads and up to IEEE 802.3bt 4-pairs loads.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power over Ethernet (PoE) voltage | 54 V |
| Features | |
| Product colour | Black |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| LED indicators | Yes |
| Certification | CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI |
| Mean time between failures (MTBF) | 150000 h |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Power over Ethernet (PoE) power per port | 60 W |
| Power over Ethernet (PoE) voltage | 54 V |
| Input current | 1.4 A |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Technical details | |
| Number of products included | 1 pc(s) |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.4 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Weight | 400 g |
| Width | 160 mm |
| Depth | 80 mm |
| Height | 36 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Certificates | |
| Certification | CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
