1x 10G RJ-45, 30W PoE, 55.8x33.3x167 mm
Microchip Technology PD-9001-10GC 10 Gigabit Ethernet 55 V
MPN:
PD-9001-10GC/AC-UK
Out of stock
Price excluding VAT:
Exc Vat £40.61
Price including VAT:
Inc Vat £48.73
Shipping calculated at checkout.
Details
Key Features
- Number of ports: 1
- PoE output: 30W
- Data rates: 10/100/1000 Mbps & 10G
- Power input: AC
- Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/EN/IEC 60950-1 (Ed.2)
- Compact design
Description

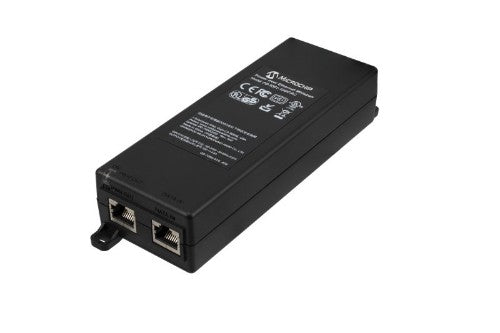

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power indoor applications. The PD-9001-10GC enables remote power for a new range of applications including 802.11ac access points, pan-tilt-zoom (PTZ) cameras and videophones. It is backward compatible to IEEE 802.3af PoE standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10G devices such as wireless IEEE 802.11ac access points.Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Power over Ethernet (PoE) voltage | 55 V |
| Features | |
| Product colour | Black |
| Networking standards | IEEE 802.3at |
| Certification | CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) voltage | 55 V |
| Input current | 0.67 A |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Technical details | |
| Number of products included | 1 pc(s) |
| Power over Ethernet (PoE) | Yes |
| Input current | 0.67 A |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Weight | 400 g |
| Width | 167 mm |
| Depth | 55.8 mm |
| Height | 33.3 mm |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Certificates | |
| Certification | CE, WEEE FCC 15, B EN 55032 B EN 55024 VCCI |
| Logistics data | |
| Harmonized System (HS) code | 85044095 |
