DIN Rail - Panel Mount UPS-without Battery-500VA 230V

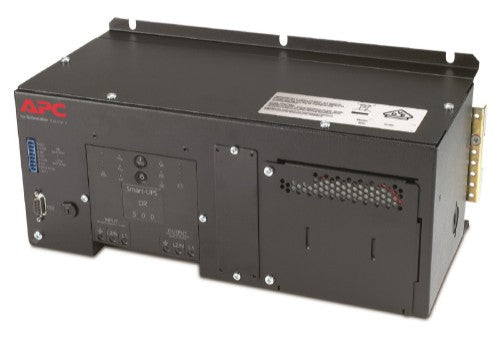

APC DIN Rail - Panel Mount UPS-without Battery-500VA 230V
Sale price
£388.91
Regular price
£528.27
Taxes included.
Shipping calculated at checkout.
Details
Description
Proven Industrial UPS power protection for control applications and harsh environments.Specifications
| Power | |
|---|---|
| Output power | 325 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 94% |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Output power capacity | 0.5 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Surge protection | Yes |
| Noise level | 55 dB |
| Features | |
| UPS topology | Line-Interactive |
| Output power | 325 W |
| Input operation voltage (min) | 151 V |
| Input operation voltage (max) | 302 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 540 J |
| Efficiency | 94% |
| Surge protection | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 55 dB |
| Output power capacity | 0.5 kVA |
| Input frequency | 47/53 Hz |
| Ports & interfaces | |
| AC outlets quantity | 0 AC outlet(s) |
| RS-232 ports | 1 |
| Battery | |
| Number of batteries supported | 1 |
| Design | |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | CE, VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 441.6 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 297 mm |
| Package depth | 481 mm |
| Package height | 297 mm |
| Width | 362 mm |
| Height | 148 mm |
| Depth | 171 mm |
| Packaging data | |
| Manual | Yes |
| Package width | 297 mm |
| Package depth | 481 mm |
| Package height | 297 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | CE, VDE |
| Packaging content | |
| Manual | Yes |
