15.6" 16:9 RK3288 2G ram/16G eMMC, FHD, Android 10, WIFI, PoE

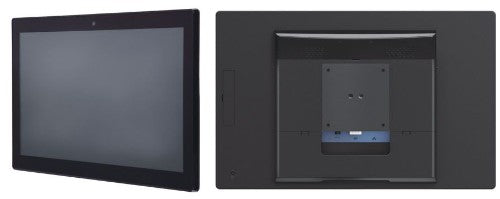

Advantech USC-160AP-BC111 POS system RK3288 All-in-One 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen Black
£633.33
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Equipped with DeviceOn/iService software for remote device management
- 15.6" TFT display with LED backlight
- Flat bezel-less panel with PCAP touch
- Reserved side hatch for optional peripherals
- Embedded RFID/NFC reader, Barcode scanner and camera (optional)
- Supports VESA (75 x 75 mm) and wall mounting
- IP65-rated front panel
- Supports Power over Ethernet
- 12 ~ 36V wide input range
Description
Advantech USC-160 - LED monitor - 15.6 - open frame - touchscreen - 1920 x 1080 Full HD (1080p) - 400 cd/m² - 1000:1 - speakers - blackSpecifications
| Display | |
|---|---|
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Touchscreen technology | Capacitive |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Display brightness | 400 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Processor | |
| Processor cores | 4 |
| Processor family | Rockchip |
| Processor model | RK3288 |
| Processor manufacturer | Rockchip |
| Processor boost frequency | 1.8 GHz |
| Memory | |
| Internal memory | 2 GB |
| Storage | |
| Total storage capacity | 16 GB |
| Storage media | eMMC |
| Graphics | |
| Graphics card | Mali T764 |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Hard drive | |
| Total storage capacity | 16 GB |
| Ports & interfaces | |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Near Field Communication (NFC) | Yes |
| Video | |
| Graphics card | Mali T764 |
| Design | |
| Product colour | Black |
| Chassis type | All-in-One |
| Software | |
| Operating system installed | Android 10 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Ergonomics | |
| VESA mounting | Yes |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| Printing | |
| Built-in barcodes | 1D, 2D |
| Audio | |
| Built-in speaker(s) | Yes |
| Weight & dimensions | |
| Width | 382.6 mm |
| Depth | 244.1 mm |
| Height | 34.9 mm |
| Weight | 3.5 kg |
| Technical details | |
| Product colour | Black |
| Panel mounting interface | 75 x 75 mm |
| Compliance certificates | BSMI, CB, CCC, CE, Federal Communications Commission (FCC), UL, VCCI |
| Other features | |
| Chassis type | All-in-One |
