11.6" 16:9 RK3399 2G ram/16G eMMC, 1366 x 768 HD, Android 10, WIFI, PoE, EU Only Model

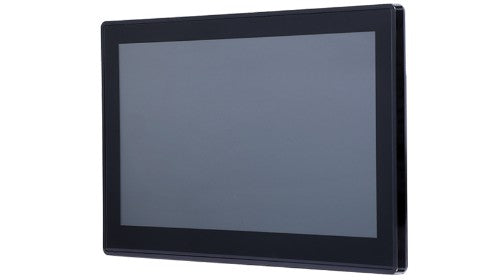

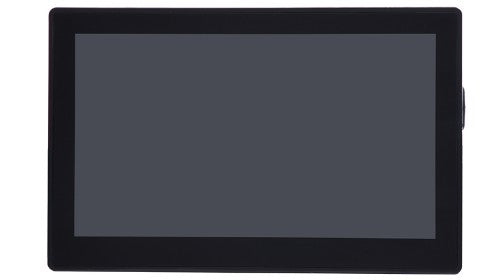

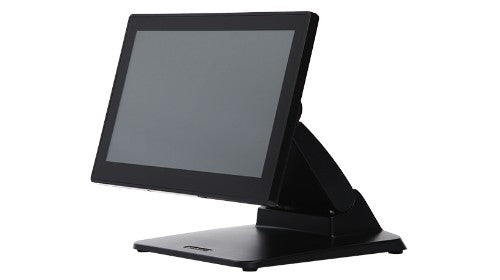

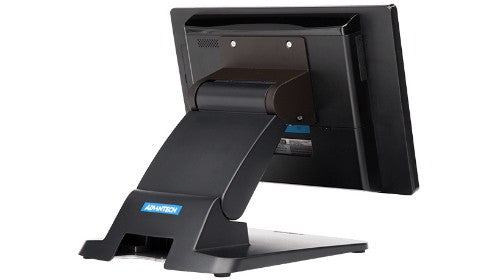

Advantech USC-130AP-BC201 POS system RK3399 1.8 GHz All-in-One 29.5 cm (11.6") 1366 x 768 pixels Touchscreen Black
£461.27
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 11.6" TFT display with LED backlight
- Flat bezel-less panel with PCAP touch
- Reserved side hatch for optional peripherals
- Embedded RFID/NFC reader and camera
- Supports VESA (75 x 75 mm) and wall mounting
- IP65-rated front panel
- Supports Power over Ethernet
- 12 ~ 36V wide input range
Description
Advantech’s DeviceOn/iService is a next-generation unified device management solution based on the WISE-DeviceOn platform. Designed to enable centralized monitoring and remote management, DeviceOn/iService supports Advantech devices equipped with Windows, Linux, or Android operating systems. The software also supports the management of applications and integrated peripherals, such as a barcode scanner, card reader, camera, and printer. Users can remotely access and control connected devices, take screenshots, rollout OTA upgrades, and use remote desktop capabilities for troubleshooting from any location at any time. Moreover, DeviceOn/iService supports batch operations to facilitate the management of multiple devices simultaneously for easy and convenient device configuration and deployment.Specifications
| Display | |
|---|---|
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Touchscreen technology | Projected capacitive system |
| Touchscreen | Yes |
| Display resolution | 1366 x 768 pixels |
| Display diagonal | 29.5 cm (11.6") |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 500:1 |
| Aspect ratio | 16:9 |
| Display type | TFT |
| Second display | No |
| Processor | |
| Processor cores | 2 |
| Processor frequency | 1.8 GHz |
| Processor model | RK3399 |
| Processor manufacturer | Rockchip |
| Memory | |
| Internal memory | 2 GB |
| Maximum internal memory | 16 GB |
| Storage | |
| Total storage capacity | 16 GB |
| Storage media | eMMC |
| Graphics | |
| Graphics card | Mali T764 |
| Features | |
| Certification | IP65 FCC, CCC, BSMI, VCCI, UL, CB |
| Harmonized System (HS) code | 84715000 |
| Multimedia | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Card reader integrated | Yes |
| Built-in speaker(s) | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Hard drive | |
| Total storage capacity | 16 GB |

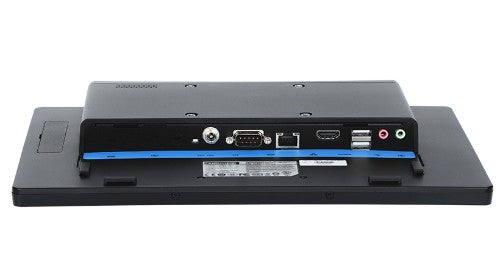

| Ports & interfaces | |
| DVI port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| Microphone in | Yes |
| Line-out | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Near Field Communication (NFC) | Yes |
| Video | |
| Graphics card | Mali T764 |
| Design | |
| Product colour | Black |
| Chassis type | All-in-One |
| Software | |
| Operating system installed | Android 10 |
| Power | |
| Power supply | 36 W |
| AC adapter output voltage | 12 - 36 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | IP65 FCC, CCC, BSMI, VCCI, UL, CB |
| Ergonomics | |
| VESA mounting | Yes |
| Product colour | Black |
| Wall mountable | Yes |
| Panel mounting interface | 75 x 75 mm |
| Audio | |
| Built-in speaker(s) | Yes |
| Weight & dimensions | |
| Width | 296 mm |
| Depth | 34.9 mm |
| Height | 189 mm |
| Weight | 2 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Card reader integrated | Yes |
| Product colour | Black |
| Wall mountable | Yes |
| Panel mounting interface | 75 x 75 mm |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Chassis type | All-in-One |
