9PX Lithium UPS Netpack, 3000 VA, 3000 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U, Network card included

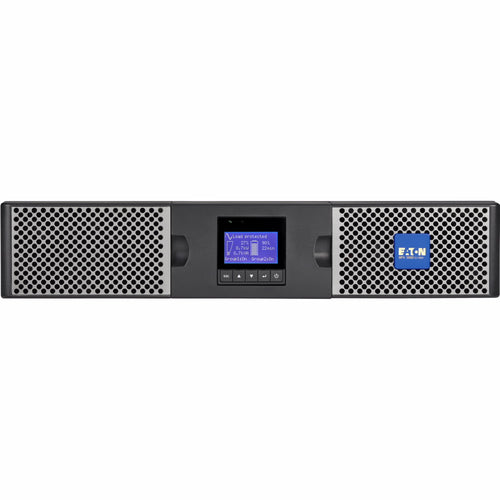

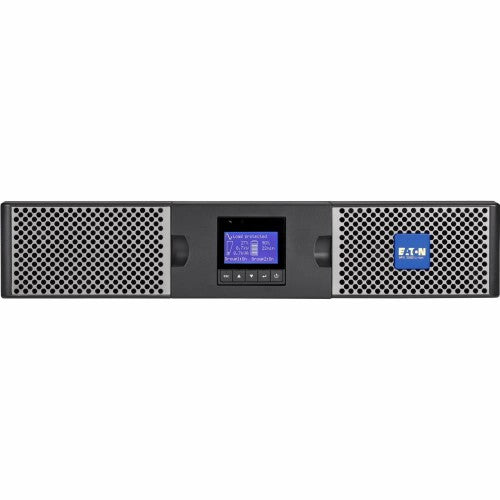

Eaton 9PX 3000i RT2U Netpack Li-Ion uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2400 W 10 AC outlet(s)
MPN:
9PX3000IRTN-L
Out of stock
£2,820.76 GBP
VAT included.
Shipping calculated at checkout.
Details
Description
Reliable. Versatile. Powerful. Efficient. With double-conversion topology for constant power conditioning and up to 93 percent efficiency, the Eaton 9PX 700-3000 VA models support your overall goal of business continuity. It’s built for scalable deployment, features a graphical LCD for local status updates and integrates with virtualized environments.Specifications
| Power | |
|---|---|
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 2400 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Output power capacity | 3 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| LED indicators | Yes |
| Power protection features | Battery discharge |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 2400 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 94% |
| Power protection features | Battery discharge |
| Noise level | 40 dB |
| Output power capacity | 3 kVA |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | C20 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| USB port type | USB Type-B |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Typical backup time at full load | 10 min |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | CE |
| Weight & dimensions | |
| Weight | 22.9 kg |
| Width | 440 mm |
| Height | 86.5 mm |
| Depth | 605 mm |
| Packaging data | |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star |
| Packaging content | |
| Rack mount kit | Yes |
