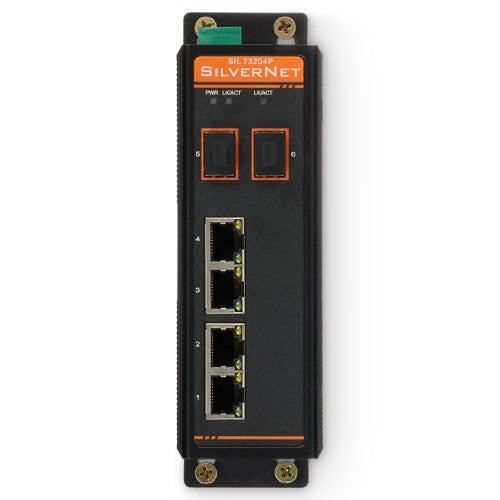

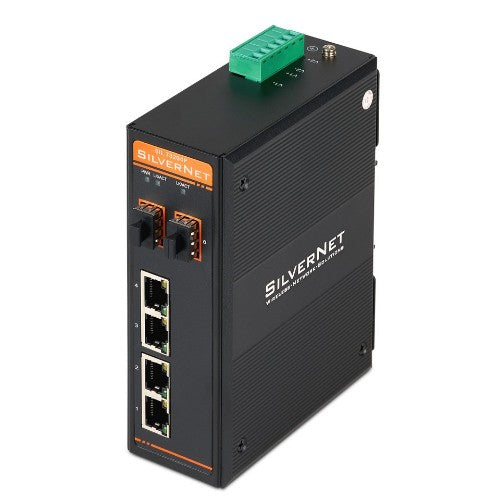

Series 7 - Industrial Unmanaged 4 Port RJ45 + 2 SFP Gigabit PoE Switch
The switch requires no configuration and is operational immediately upon powering up. It offers versatile installation options, including DIN rail and wall mounting via the included bracket, enhancing its flexibility.
Designed for harsh environments, the switch boasts a rugged industrial build and an extended temperature range, making it a perfect fit for demanding conditions.
Complying with the IEEE802.3af/at standard, the SIL 73204P delivers Power-Over-Ethernet (requiring a minimum input of 48-56VDC) through CAT 5 / CAT 6 cables. Its fibre optic ports come equipped with a modular SFP slot that accommodates any MSA-compliant 1.25Gbps SFP Transceiver.
SilverNet SIL 73204P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Sale price
£108.94
Regular price
£114.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 4 x 10/100/1000Base-T
- 2 x 1000Base-FX
- 20Gbps bandwidth
- IEEE803.af/at compliant PoE+
- RJ45 supports auto MDI/MDI-X function
- Auto negotiation speed, half/full-duplex
- Store and forward
- Max packet size: 10kbytes
- Wide range power design ( 12~56VDC )
- Operating temperature (-40 ̊C ~ +75 ̊C)
- Reverse polarity protection
- Resettable fuse to protect against overcurrent
- IP-40 protection
- EFT protection for power line
- Ethernet ESD protection

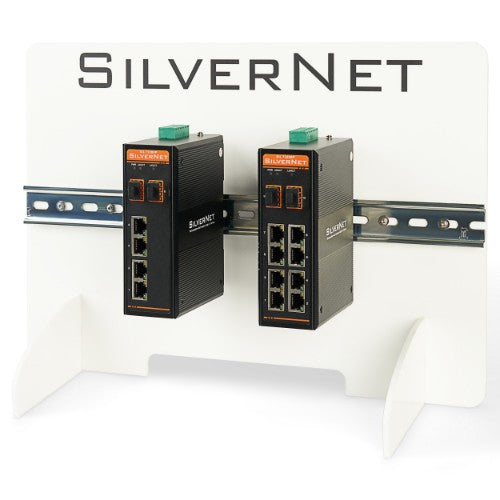

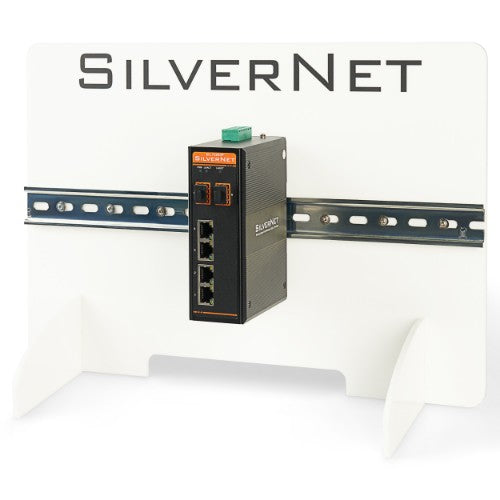

- DIN rail and Wall mounted installation
- Dual 48vDC input for power supply redundancy
- Low power consumption
Description
The SIL 73204P is an Industrial Gigabit PoE+ Ethernet Switch featuring four 10/100/1000Mbps RJ45 ports with PoE+ (30w) capabilities, alongside two 100/1000Mbps SFP (Fibre) uplink ports. It's a high-performance, high-specification, and cost-effective device, ideal for network operations in challenging industrial settings.The switch requires no configuration and is operational immediately upon powering up. It offers versatile installation options, including DIN rail and wall mounting via the included bracket, enhancing its flexibility.
Designed for harsh environments, the switch boasts a rugged industrial build and an extended temperature range, making it a perfect fit for demanding conditions.
Complying with the IEEE802.3af/at standard, the SIL 73204P delivers Power-Over-Ethernet (requiring a minimum input of 48-56VDC) through CAT 5 / CAT 6 cables. Its fibre optic ports come equipped with a modular SFP slot that accommodates any MSA-compliant 1.25Gbps SFP Transceiver.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Copper ethernet cabling technology | 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber |
| Copper ethernet cabling technology | 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| 10G support | No |
| Optical fiber | |
| Fiber type | Multi-mode |
| Fiber ethernet cabling technology | 1000BASE-FX |
| Fiber optic connector | SFP |
| Data transmission | |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 10 µs |
| Latency (1 Gbps) | 10 µs |
| Packet buffer memory | 2 MB |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP40 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Data, LAN, Power |
| Housing material | Aluminium |
| Rack mounting | No |
| Certification | UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV/2KV) IEC 61000-4-6 (RF coupling): (10V/m) IEC61000-4-8 (Power Frequency Magnetic Field):Level 4 (30A/m) UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 IEC 60068-2-27 IEC 60068-2-32 0.5m IEC 60068-2-6 |
| Power | |
| Power supply included | No |
| Power consumption (typical) | 15 W |
| Number of power supply units | 1 |
| DC input voltage | 12 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 90 mm |
| Height | 120 mm |
| Weight | 430 g |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 225 mm |
| Package depth | 166 mm |
| Package height | 80 mm |
| Package weight | 600 g |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Performance | |
| Packet buffer memory | 2 MB |
| Stackable | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | Yes |
| Housing material | Aluminium |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 2 MB |
| Certificates | |
| Certification | UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV/2KV) IEC 61000-4-6 (RF coupling): (10V/m) IEC61000-4-8 (Power Frequency Magnetic Field):Level 4 (30A/m) UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 IEC 60068-2-27 IEC 60068-2-32 0.5m IEC 60068-2-6 |
| Indication | |
| LED indicators | Data, LAN, Power |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
