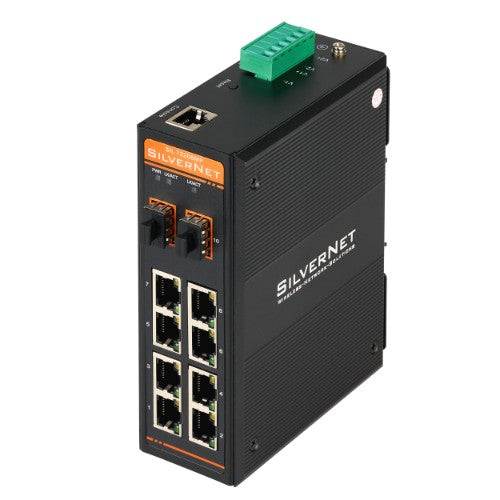

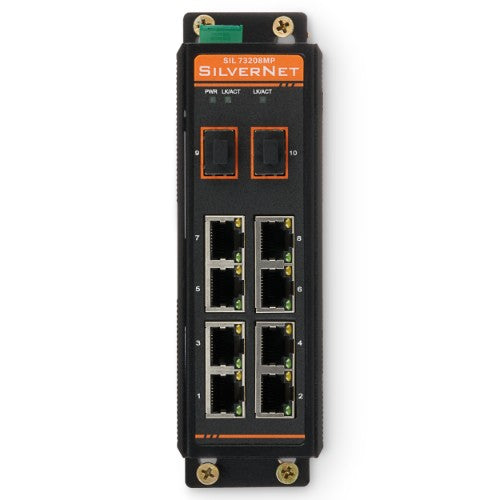

Series 7 - Industrial Managed 8 Port RJ45 + 2 SFP Gigabit PoE+ Switch
SilverNet SIL 73208MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Sale price
£266.28
Regular price
£278.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- IEEE803.af/at compliant PoE+
- RJ45 supports auto MDI/MDI-X function
- Auto negotiation speed, half/full-duplex
- Store and forward
- Reverse polarity protection
- Resettable fuse to protect against overcurrent
- IP-40 protection
- EFT protection for power line
- Ethernet ESD protection

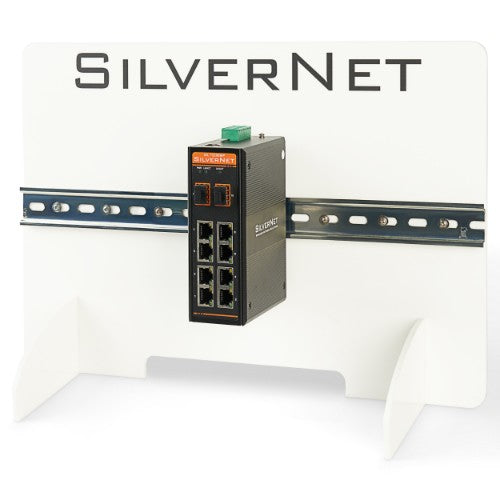

- DIN rail and Wall mounted installation
Description
The SIL 73208MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, crafted for use in harsh environments thanks to its robust industrial design. It is equipped with eight 10/100/1000Base-T ports and two 1000Base-FX SFP slots. The switch features a host of intelligent attributes, including a dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability. It offers a flexible solution for extending Ethernet over distances through fiber daisy chaining, thus removing the need for separate power sources for IP video cameras and wireless access points. It also functions within an extended temperature range, making it ideal for outdoor cabinets and challenging industrial environments. Complying with the IEEE802.3af/at standard, it facilitates Power-over-Ethernet delivery via twisted pair cables. Moreover, the switch incorporates two fiber optic ports with a modular SFP slot that supports any MSA-compliant pluggable 1.25Gbps SFP transceiver.Specifications
| Management features | |
|---|---|
| Traffic classification | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| User operation log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Network | |
| Cable types supported | Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4095 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Throughput | 20000 Mpps |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 14.88 Mpps |
| Number of VLANs | 4095 |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP40 |
| Reset button | Yes |
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | LAN, PoE, Power |
| Housing material | Aluminium |
| Rack mounting | No |
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 |
| Performance | |
| Minimum system requirements | Internet Browser |
| Packet buffer memory | 4 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 15 W |
| Power supply included | No |
| Power protection features | Overload, Reverse polarity |
| Power consumption (typical) | 7 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) voltage | 48 V |
| Power protection features | Overload, Reverse polarity |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4095 |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Multiple VXLAN (MUX VLAN), Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 120 mm |
| Height | 40 mm |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 166 mm |
| Package depth | 225 mm |
| Package height | 80 mm |
| Package weight | 890 g |
| Quick start guide | Yes |
| Optical fiber | |
| Fiber optic connector | SFP |
| Technical details | |
| Product colour | Black |
| Stackable | Yes |
| Housing material | Aluminium |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 4 MB |
| Certificates | |
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 |
| Indication | |
| LED indicators | LAN, PoE, Power |
| System requirements | |
| Minimum system requirements | Internet Browser |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
