Series 7 - Industrial Unmanaged 8 Port RJ45 + 2 SFP Gigabit PoE Switch
This switch is plug-and-play, requiring no configuration, and becomes operational as soon as it is powered on. It provides flexible installation options, such as DIN rail and wall mounting with the provided bracket, adding to its versatility.
Built for tough conditions, the switch features a robust industrial design and an extended temperature range, making it ideal for demanding settings.
Adhering to the IEEE802.3af/at standard, the SIL 73208P facilitates Power-Over-Ethernet (with a required minimum input of 48-56VDC) via CAT 5 / CAT 6 cables. The fibre optic ports are equipped with a modular SFP slot that is compatible with any MSA-compliant 1.25Gbps SFP Transceiver.

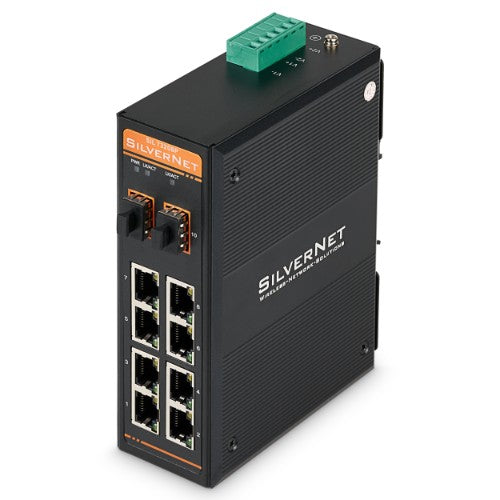

SilverNet SIL 73208P network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Sale price
£133.14
Regular price
£139.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 8 x 10/100/1000Base-T
- 2 x 1000Base-FX
- 20Gbps bandwidth
- IEEE803.af/at compliant PoE+
- RJ45 supports auto MDI/MDI-X function
- Auto negotiation speed, half/full-duplex
- Store and forward
- Max packet size: 10kbytes
- Wide range power design ( 12~56VDC )
- Operating temperature (-40 ̊C ~ +75 ̊C)
- Reverse polarity protection
- Resettable fuse to protect against overcurrent
- IP-40 protection
- EFT protection for power line
- Ethernet ESD protection

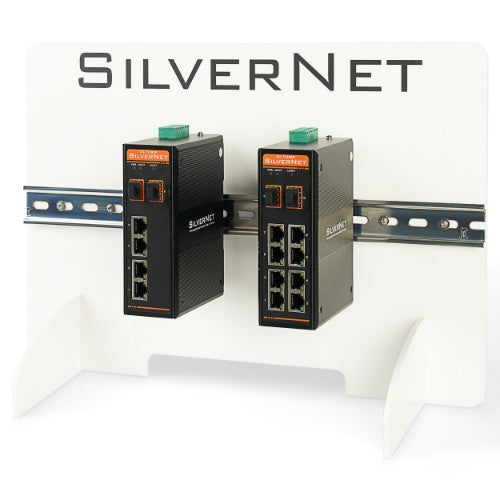

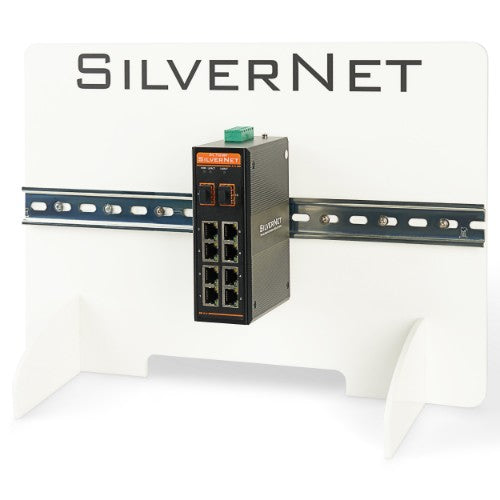

- DIN rail and Wall mounted installation
- Dual 48vDC input for power supply redundancy
- Low power consumption
Description
The SIL 73208P is an industrial-grade Gigabit PoE+ Ethernet Switch that includes eight 10/100/1000Mbps RJ45 ports with PoE+ (30w) support, and two 100/1000Mbps SFP (Fibre) uplink ports. This high-performance, high-specification, and cost-effective unit is well-suited for network operations in challenging industrial environments.This switch is plug-and-play, requiring no configuration, and becomes operational as soon as it is powered on. It provides flexible installation options, such as DIN rail and wall mounting with the provided bracket, adding to its versatility.
Built for tough conditions, the switch features a robust industrial design and an extended temperature range, making it ideal for demanding settings.
Adhering to the IEEE802.3af/at standard, the SIL 73208P facilitates Power-Over-Ethernet (with a required minimum input of 48-56VDC) via CAT 5 / CAT 6 cables. The fibre optic ports are equipped with a modular SFP slot that is compatible with any MSA-compliant 1.25Gbps SFP Transceiver.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Copper ethernet cabling technology | 1000BASE-T |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6+, Cat6a, Cat6e, Cat7, Cat7e, Cat8.1, Fiber |
| Copper ethernet cabling technology | 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| 10G support | No |
| Optical fiber | |
| Fiber type | Multi-mode |
| Fiber ethernet cabling technology | 1000BASE-FX |
| Fiber optic connector | SFP |
| Data transmission | |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 10 µs |
| Latency (1 Gbps) | 10 µs |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP40 |
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Data, LAN, Power |
| Housing material | Aluminium |
| Rack mounting | No |
| Certification | CE FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV/2KV) IEC 61000-4-6 (RF coupling): (10V/m) IEC61000-4-8 (Power Frequency Magnetic Field):Level 4 (30A/m) IEC 60068-2-27 IEC 60068-2-32 0.5m IEC 60068-2-6 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 |
| Power | |
| Power supply included | No |
| Power consumption (typical) | 15 W |
| Number of power supply units | 1 |
| DC input voltage | 12 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 49 mm |
| Depth | 108 mm |
| Height | 138 mm |
| Weight | 685 g |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Packaging data | |
| Package type | Box |
| Package width | 166 mm |
| Package depth | 220 mm |
| Package height | 80 mm |
| Package weight | 890 g |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Performance | |
| Stackable | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | Yes |
| Housing material | Aluminium |
| Rack mounting | No |
| Certificates | |
| Certification | CE FCC Part 15 Class A IEC 61000-4-2 (ESD): Level 4 (8K/15K) IEC 61000-4-3 (RS): Level 3 (10V/m) IEC 61000-4-4 (EFT): Level 3 (1V/2V) IEC 61000-4-5 (surge): Level 3 (4KV/2KV) IEC 61000-4-6 (RF coupling): (10V/m) IEC61000-4-8 (Power Frequency Magnetic Field):Level 4 (30A/m) IEC 60068-2-27 IEC 60068-2-32 0.5m IEC 60068-2-6 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 |
| Indication | |
| LED indicators | Data, LAN, Power |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
