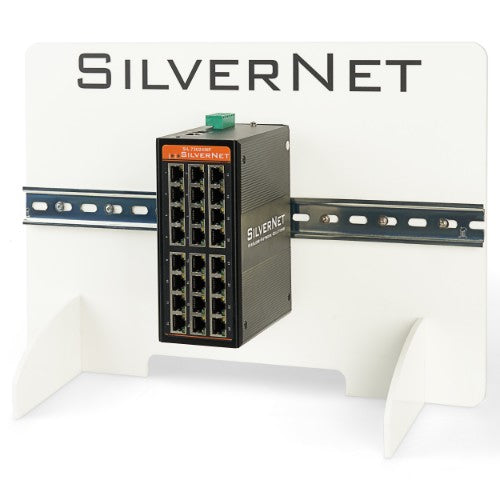

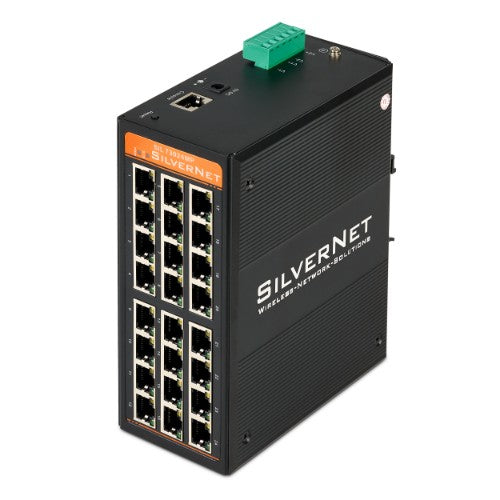

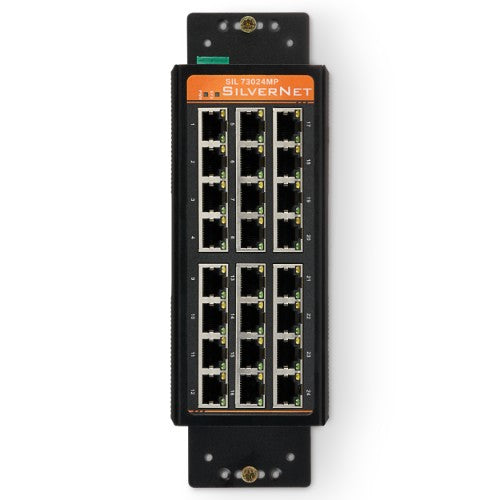

Series 7 - Industrial Managed 24 Port Gigabit PoE Switch
Like its Series 7 counterparts, this switch offers smart features such as a dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability.
It serves as a flexible solution for extending Ethernet across distances through fiber daisy chaining, thus removing the need for individual power supplies for IP video cameras and wireless access points. Additionally, it functions within a broad temperature range, making it ideal for outdoor cabinets and challenging industrial environments.
Complying with the IEEE802.3af/at standard, the switch facilitates Power-over-Ethernet delivery via twisted pair cables.
SilverNet SIL 73024MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Sale price
£556.75
Regular price
£581.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 24 x 10/100/1000Base-T
- 16 x 30W PoE ports
- 40Gbps bandwidth
- IEEE803.af/at compliant PoE+
- RJ45 supports auto MDI/MDI-X function
- Auto negotiation speed, half/full-duplex
- Store and forward
- Max table size: 16K
- Wide range power design ( 10~58VDC )
- Operating temperature (-40 ̊C ~ +85 ̊C)
- Reverse polarity protection
- Resettable fuse to protect against overcurrent
- IP-40 protection
- EFT protection for power line
- Ethernet ESD protection
- DIN rail and Wall mounted installation
- Dual 48vDC input for power supply redundancy
Description
The SIL 73024MP is an industrial Gigabit PoE+ Managed Layer 2 Switch, boasting 24 x 10/100/1000Base-T ports, with 16 capable of providing PoE+.Like its Series 7 counterparts, this switch offers smart features such as a dual input design, fanless operation, low power consumption, overcurrent protection, and high reliability.
It serves as a flexible solution for extending Ethernet across distances through fiber daisy chaining, thus removing the need for individual power supplies for IP video cameras and wireless access points. Additionally, it functions within a broad temperature range, making it ideal for outdoor cabinets and challenging industrial environments.
Complying with the IEEE802.3af/at standard, the switch facilitates Power-over-Ethernet delivery via twisted pair cables.
Specifications
| Management features | |
|---|---|
| Traffic shaping | Yes |
| Traffic classification | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2 |
| User operation log | Yes |
| Configuring Location Settings (CLI) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Network | |
| Cable types supported | Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4095 |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Policy-based routing | Yes |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Packet buffer memory | 4 MB |
| MAC address table | 8000 entries |
| Switching capacity | 56 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 29.76 Mpps |
| Number of VLANs | 4095 |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP40 |
| Reset button | Yes |
| DIN rail mounting | Yes |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Data, LAN, PoE, Power |
| Housing material | Aluminium |
| Rack mounting | No |
| Temperature sensor | Yes |
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 |
| Performance | |
| Minimum system requirements | Web Browser |
| Firmware upgradeable | Yes |
| Packet buffer memory | 4 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 30 W |
| Power supply included | No |
| Power protection features | Overload, Reverse polarity |
| Power consumption (typical) | 7 W |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Total Power over Ethernet (PoE) budget | 480 W |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) voltage | 48 V |
| Power protection features | Overload, Reverse polarity |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4095 |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 140 mm |
| Height | 160 mm |
| Weight | 1.15 kg |
| Packaging content | |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Cables included | RS-232 |
| Packaging data | |
| Package type | Box |
| Package width | 215 mm |
| Package depth | 205 mm |
| Package height | 95 mm |
| Package weight | 1.4 kg |
| Quick start guide | Yes |
| User guide | Yes |
| Manual | Yes |
| Cables included | RS-232 |
| Technical details | |
| Product colour | Black |
| Stackable | Yes |
| Housing material | Aluminium |
| Firmware upgradeable | Yes |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 4 MB |
| Certificates | |
| Certification | CE FCC 15 A IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 EN50121-4 UKCA BS EN 55032:2015/A11:2020 UKCA BS EN IEC 61000-3-2:2019+A1:2021 UKCA BS EN 61000-3-3:2013/A2:2021 UKCA BS EN 55035:2017/A11:2020 UKCA BS EN IEC 62368-1:2020+A11:2020 UKCA BS IEC 62321-1:2013, IEC 62321-3-1:2013 UKCA BS IEC 62321-4:2013+AMD1:2017, IEC 62321-5:2013 UKCA BS IEC 62321-6:2015, IEC 62321-7-1:2015 UKCA BS IEC 62321-7-2:2017, IEC 62321-8:2017 |
| Indication | |
| LED indicators | Data, LAN, PoE, Power |
| System requirements | |
| Minimum system requirements | Web Browser |
| Other features | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Logistics data | |
| UK Trade Tariff code | 85176200 |
