Unmanaged, 24x Gigabit Ethernet, 48 Gbps
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Support PoE+
The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.
Flexible choices for your office
The GS1100 Series switch offers multiple options including 8-port, 16-port, and 24-port for diversified office applications.

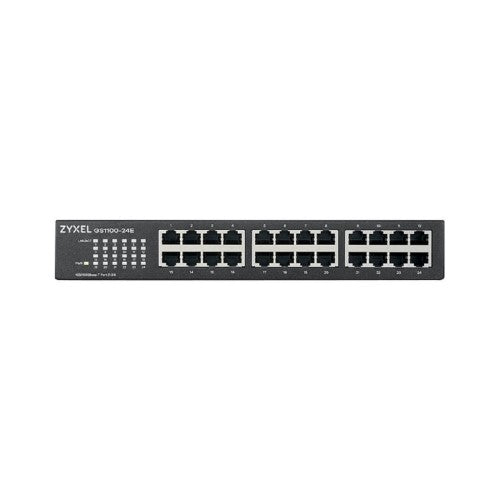

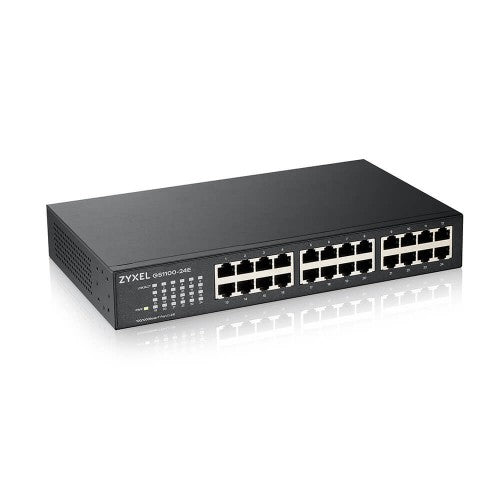

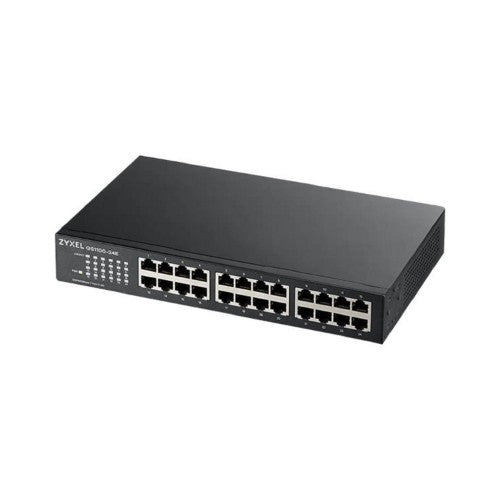

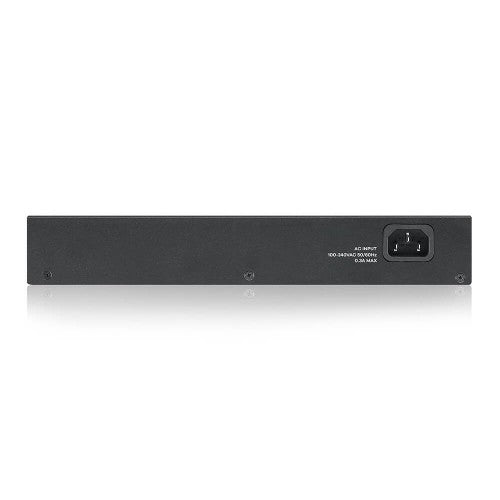

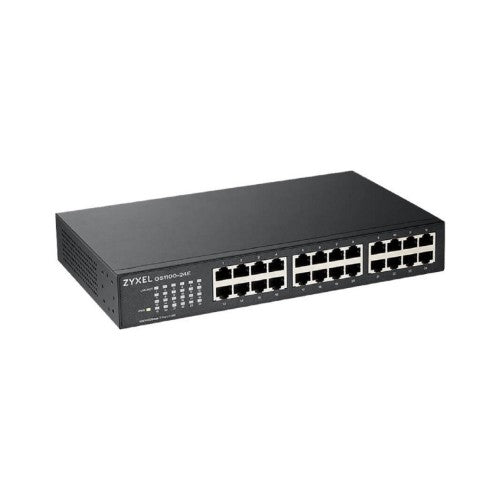

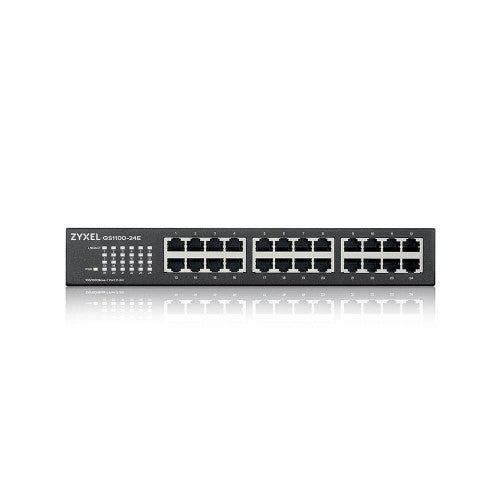

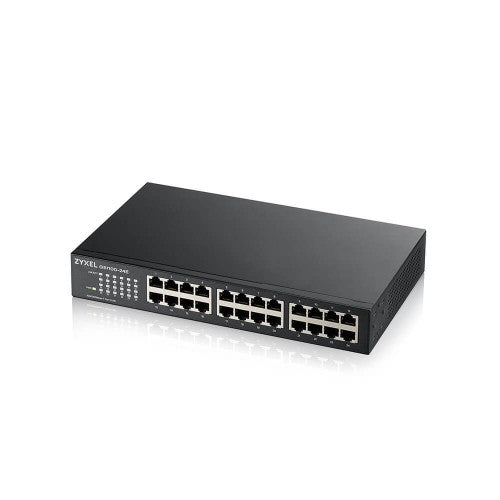

Zyxel GS1100-24E Unmanaged Gigabit Ethernet (10/100/1000) Black
MPN:
GS1100-24E-GB0103F
In stock: 12
£79.58
VAT included.
Shipping calculated at checkout.
Details
Description
Plug and play connectivitySimply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Support PoE+
The GS1100-10HP supports PoE+ (IEEE 802.3at) which provides a maximum of 30W per port, delivering fully automated support for powering compatible IP phones, video surveillance cameras or wireless access points.
Flexible choices for your office
The GS1100 Series switch offers multiple options including 8-port, 16-port, and 24-port for diversified office applications.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 0.525 MB |
| MAC address table | 8000 entries |
| Switching capacity | 48 Gbit/s |
| Forwarding rate | 35.7 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Certification | LVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH |
| Performance | |
| Mean time between failures (MTBF) | 366919 h |
| Fanless | Yes |
| Packet buffer memory | 0.525 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 13 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Heat dissipation | 43.53 BTU/h |
| Weight & dimensions | |
| Width | 267 mm |
| Depth | 162 mm |
| Height | 42 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 366919 h |
| Rack mounting | Yes |
| Memory | |
| Packet buffer memory | 0.525 MB |
| Certificates | |
| Certification | LVD, BSMI, EMC Class A, CE, FCC, RCM, ICES-003, BSMI, RoHS, REACH |
| Indication | |
| LED indicators | Yes |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
