GS1100-16 Revision B1 - 16-port GbE Unmanaged, GB
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.

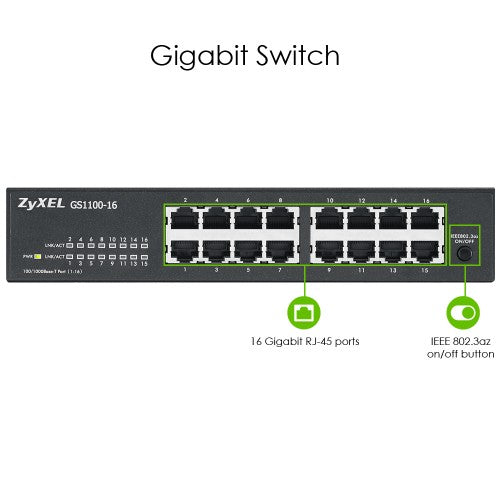

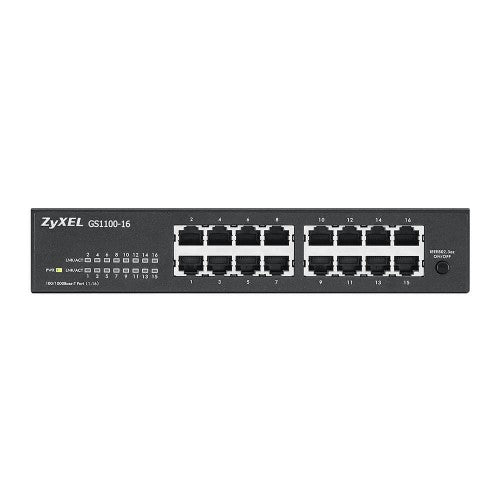

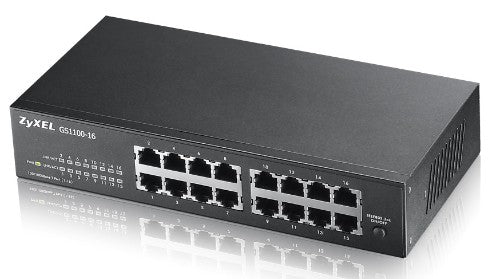

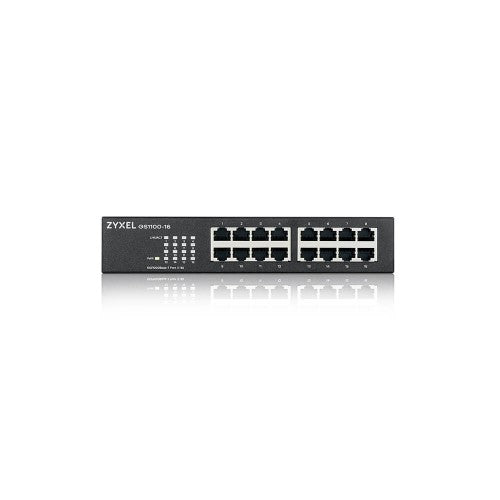

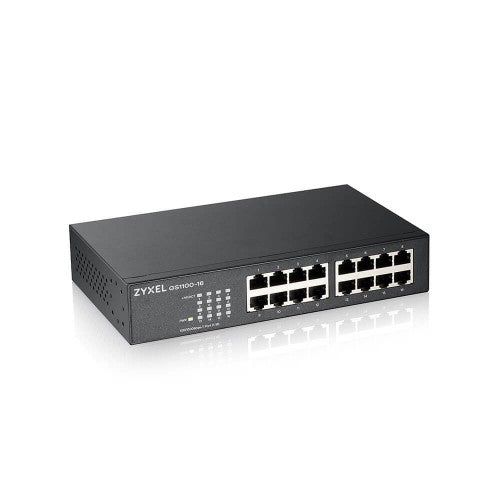

Zyxel GS1100-16 Unmanaged Gigabit Ethernet (10/100/1000)
£42.59
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3az EEE support
- IEEE 802.3x flow control
- IEEE 802.3z 1000BASE-X
- IEEE 802.1p CoS
Description

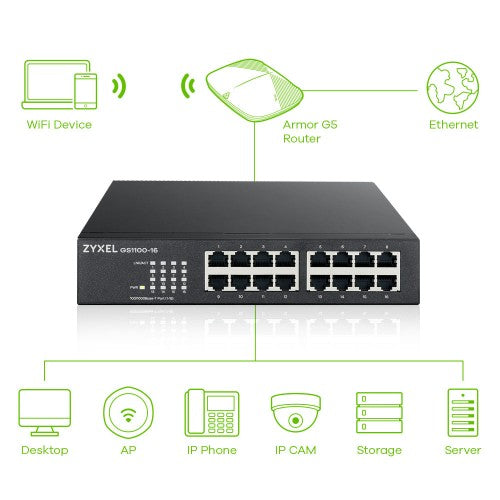

Plug and play connectivitySimply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |

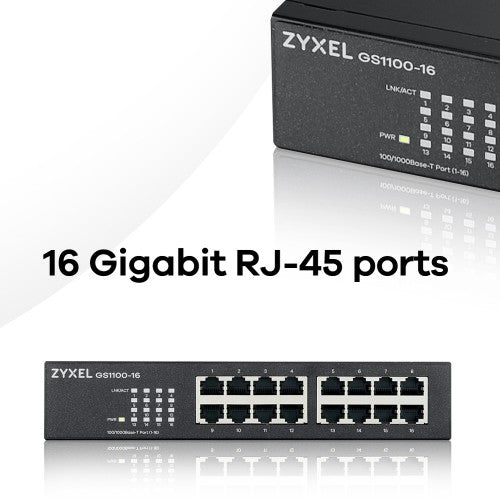

| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Active link detection | Yes |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Data transmission | |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 23.8 Mpps |
| Design | |
| Wall mountable | Yes |
| LED indicators | Activity, Link, Power |
| Electromagnetic compatibility | CE, FCC, RCM, ICES-003, BSMI |
| Rack mounting | Yes |
| Certification | LVD, BSMI RoHS, REACH |
| Performance | |
| Mean time between failures (MTBF) | 1156942 h |
| Fanless | Yes |
| Packet buffer memory | 0.5 MB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 10 W |
| Power supply included | Yes |

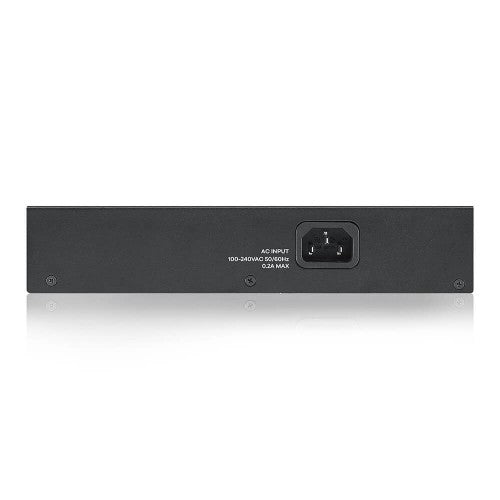

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Number of power supply units | 1 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 32.86 BTU/h |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 133 mm |
| Height | 42 mm |
| Weight | 19.8 kg |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Cables included | AC |
| Technical details | |
| Mean time between failures (MTBF) | 1156942 h |
| Rack mounting | Yes |
| Certificates | |
| Electromagnetic compatibility | CE, FCC, RCM, ICES-003, BSMI |
| Certification | LVD, BSMI RoHS, REACH |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Indication | |
| LED indicators | Activity, Link, Power |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
