15.6" display with PCAP touchscreen, ARM RK3288 processor, 2GB RAM, 8GB flash, camera, scanner, Wi-fi/ Bluetooth, NFC reader, 80 mm thermal printer, Android 8.1, black

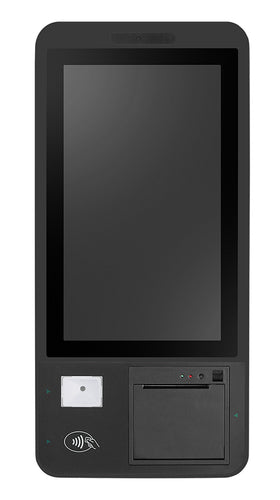

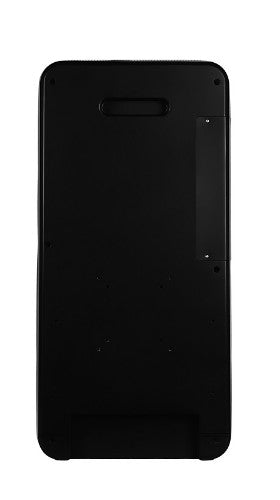

Advantech UTK-615 RK3288 All-in-One 39.6 cm (15.6") 1920 x 1080 pixels Touchscreen Black
£715.33
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Compact and lightweight for convenient installation in space-limited environments
- Colorful eye-catching LED indicators ensure intuitive operation
- Modularized design allows for easy upgrades and function expansion
- Can be flexibly configured for various field applications and scenarios
- Multiple mounting options for easy installation
- Remote device control and management
Description
Advantech UTK-615 is an indoor mini self-service kiosk equipped with a 15.6" touchscreen, QR code scanner, NFC reader, and receipt printer, and can be flexibly configured for a wide range of self-service applications.Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Touchscreen technology | Projected capacitive system |
| Touchscreen | Yes |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 39.6 cm (15.6") |
| Display brightness | 220 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Display type | TFT |
| Processor | |
| Processor cores | 4 |
| Processor family | Rockchip |
| Processor model | RK3288 |
| Processor manufacturer | Rockchip |
| Memory | |
| Internal memory type | DDR3L-SDRAM |
| Internal memory | 2 GB |
| Memory clock speed | 1333 MHz |
| Storage | |
| Total storage capacity | 8 GB |
| Storage media | Flash |
| Features | |
| Certification | FCC, CCC |
| Harmonized System (HS) code | 84715000 |
| Multimedia | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Card reader integrated | Yes |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Hard drive | |
| Total storage capacity | 8 GB |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Near Field Communication (NFC) | Yes |
| Design | |
| Product colour | Black |
| Chassis type | All-in-One |
| Software | |
| Operating system installed | Android 8.1 |
| Power | |
| AC adapter output voltage | 12 V |
| AC adapter output current | 5 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Certificates | |
| Certification | FCC, CCC |
| Ergonomics | |
| Product colour | Black |
| Printing | |
| Print technology | Thermal transfer |
| Maximum printing width | 8 cm |
| Built-in barcodes | QR Code |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Weight & dimensions | |
| Width | 275.8 mm |
| Depth | 95 mm |
| Height | 594.5 mm |
| Weight | 5 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| POS printer included | Yes |
| Barcode reader | Yes |
| Technical details | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Card reader integrated | Yes |
| Product colour | Black |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE |
| Logistics data | |
| Harmonized System (HS) code | 84715000 |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Chassis type | All-in-One |
