64GB, MLC, 2.5", SATA III (6.0 Gbps)

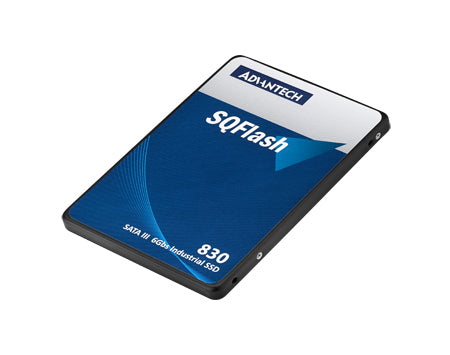

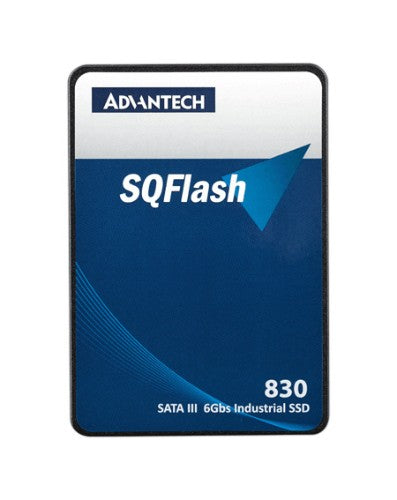

Advantech SQF-S25 830 64 GB 2.5" Serial ATA III MLC
£80.01
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Compliant with SATA III and SATA v3.2 standard
- Supports 120 bit ECC correct per 2K Byte data
- Supports Fragment Writing and Flush Manager
- Optional support for AES and voltage stabilizer
- Shock resistance, anti-vibration and low power consumption
- GUI management tool & software API package
Description
Advantech SQFlash 830 series 2.5” SATA-SSD (SQF-S25 830) delivers all the advantages of Flash Disk technology with the Serial ATA III (6.0Gb) interface, fully compliant with standard 2.5-inch form factor. The SATA SSD is based on a standard SATA 7-pin interface for data segment and 15-pin for power segment, designed to operate at a maximum operating frequency of 300MHz with 30MHz external crystal. Its capacity could provide a wide range up to 2TB. Moreover, it can reach up to 550MB/s read and 530MB/s write high performance based on Toggle 2.0 MLC flash (with 512MB DDR enabled and measured by CrystalDiskMark v3.0).Specifications
| Hard drive | |
|---|---|
| SSD capacity | 64 GB |
| Memory type | MLC |
| Data transmission | |
| Read speed | 540 MB/s |
| Write speed | 520 MB/s |
| Random write (4KB) | 24989 IOPS |
| Random read (4KB) | 52098 IOPS |
| Data transfer rate | 6 Gbit/s |
| Endurance | |
| Data retention | 10 year(s) |
| Features | |
| Interface | Serial ATA III |
| Component for | PC |
| NVMe | No |
| Password protection | Yes |
| TBW rating | 131 |
| SSD capacity | 64 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Data retention | 10 year(s) |
| TRIM support | Yes |
| Write speed | 520 MB/s |
| Protection features | Shock resistant, Vibration proof |
| ECC | Yes |
| Memory type | MLC |
| Random write (4KB) | 24989 IOPS |
| Random read (4KB) | 52098 IOPS |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| SSD form factor | 2.5" |
| JEDEC standard | Yes |
| Power | |
| Power consumption | 2000 mA |
| Operating voltage | 5 V |
| Performance | |
| Interface | Serial ATA III |
| Component for | PC |
| NVMe | No |
| Password protection | Yes |
| TBW rating | 131 |
| SSD capacity | 64 GB |
| S.M.A.R.T. support | Yes |
| Read speed | 540 MB/s |
| Data retention | 10 year(s) |
| TRIM support | Yes |
| Write speed | 520 MB/s |
| ECC | Yes |
| Memory type | MLC |
| Random write (4KB) | 24989 IOPS |
| Random read (4KB) | 52098 IOPS |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Design | |
| Component for | PC |
| Protection features | Shock resistant, Vibration proof |
| SSD form factor | 2.5" |
| Weight & dimensions | |
| Width | 69.8 mm |
| Height | 100.2 mm |
| Depth | 7 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating shock | 1500 G |
| Operating vibration | 20 G |
| Technical details | |
| Interface | Serial ATA III |
| S.M.A.R.T. support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
| TRIM support | Yes |
| Storage temperature (T-T) | -40 - 85 °C |
| Protection features | Shock resistant, Vibration proof |
| Operating relative humidity (H-H) | 5 - 95% |
| ECC | Yes |
| Operating shock | 1500 G |
| Operating vibration | 20 G |
| Hardware encryption | Yes |
| SSD form factor | 2.5" |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Other features | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
