1/2.5" CMOS, 4K UHD, 60 fps, 48 kHz, 20W

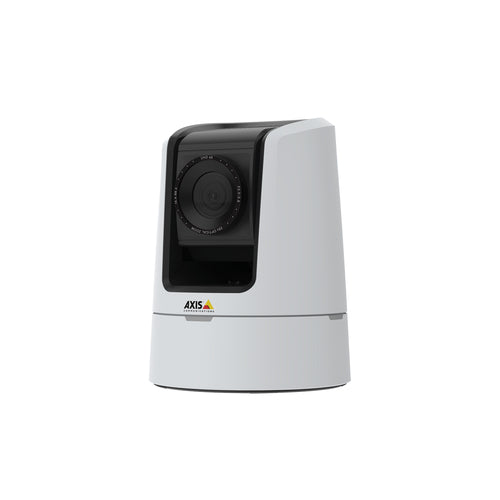

Axis 02022-002 security camera IP security camera Indoor 3840 x 2160 pixels Ceiling/wall
MPN:
02022-002
Low stock: 5
Price excluding VAT:
Exc Vat £2,529.49
Price including VAT:
Inc Vat £3,035.39
Shipping calculated at checkout.
Details
Key Features
- 3G-SDI and HDMI outputs; Broadcast-quality audio with XLR inputs; Camstreamer 3-month trial included; UHD 4K at 30 fps and 20x zoom; VISCA and VISCA over IP support
Description
AXIS V5938 combines excellent image quality with smooth PTZ control and broadcast-quality audio for professional webcasting. It’s compatible with VISCA joysticks and VISCA over IP, making it easy to integrate with your existing AV installations. Offering enhanced security features such as signed firmware and secure boot, it ensures the integrity and authenticity of the firmware. Furthermore, Axis Zipstream with H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality. NDI® compliant (license to be bought separately).Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Fog proof | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor |
| Day/night mode | Yes |
| Certification | EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Design | |
| Fog proof | Yes |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.1 lx |
| Tilt angle range | -20 - 90° |
| Tilt speed | 90 °/sec |
| Pan range | -170 - 170° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/10000 - 1 s |
| Lens viewing angle, horizontal | 70.2° |
| Lens viewing angle, vertical | 39.5° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 3.8 |
| Auto focus | Yes |
| Minimum aperture number | 2 |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 12x |
| Focal length range | 4.4 - 88 mm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Sharpness |
| Image stabilizer | Yes |
| Back Light Compensation (BLC) | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported video modes | 2160p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Audio | |
| Sample rate | 48 kHz |
| Audio system | 2-way |
| Audio formats supported | ADPCM, G.711, G.726, LPCM, PCM |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4/v6, HTTP, HTTP/2, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, MQTT, Syslog |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| RS-232 ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Security | |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Digest authentication | Yes |
| Power | |
| Power source type | DC |
| Power consumption (max) | 20 W |
| Power consumption (typical) | 17.5 W |
| DC-in jack | Yes |
| Certificates | |
| Certification | EN 55032 Class A, EN 55024, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 24, CISPR 35, KC KN32 Class A, KC KN35, IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, KC-Mark, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, NIST SP500-267 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 136 mm |
| Height | 180 mm |
| Weight | 1.5 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
