27" TFT LCD (LED) 1920 x 1080, 50 - 60 Hz, 270 nits, 14 msec, 16:9, IP-54, USB, VGA, HDMI, USB, PCAP, IEC 60601, Black

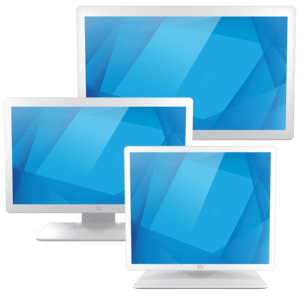

The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 -
Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
- Nurse Station
- Patient Rooms
- Laboratory
- Pharmacy
- Operating Theatres
- Medical Carts
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Configurability Made Easy
Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.
Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.
Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.

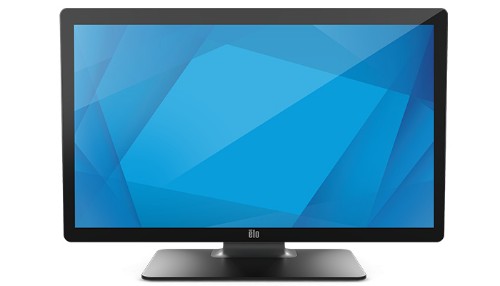

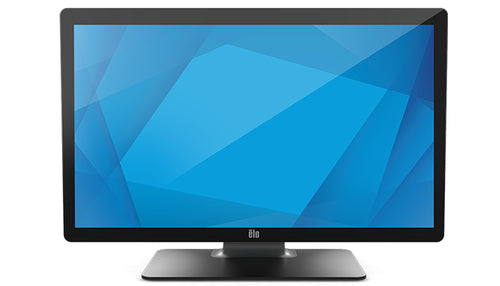

Elo Touch Solutions E659596 Signage Display 68.6 cm (27") LED 270 cd/m² Full HD Black Touchscreen
£776.91
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- DICOM 14. Ensures accurate and uniform image reproduction for reliable review
- Integrated Touch. TouchPro® PCAP offers a 10-touch tablet-like experience with capability for use with wet or dry gloves
- Built-to-Last. Backed by Elo’s 3-year standard warranty with optional EloCare service offerings
- Easy to Clean. Increase safety for healthcare providers and patients with the easy-to-clean touchscreen displays
Description
DICOM Medical Grade Touchscreen MonitorsThe 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 -
Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
- Nurse Station
- Patient Rooms
- Laboratory
- Pharmacy
- Operating Theatres
- Medical Carts
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Configurability Made Easy
Flexible Mounting
Every monitor is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts.
Privacy Matters
Optional privacy filters offer an additional safeguard when reviewing private health information or sensitive administrative data.
Ergonomic
Optional handles can be added to easily move or rotate the display to a comfortable orientation.
Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 270 cd/m² |
| HD type | Full HD |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 69 cm |
| Vertical scan range | 50 - 75 Hz |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 82 kHz |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| Touchscreen technology | Projected capacitive system |
| Audio | |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | Black |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Performance | |
| International Protection (IP) code | IP54 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
| Power consumption (off) | 0.24 W |
| Power consumption (typical) | 22.41 W |
| Power consumption (standby) | 1.006 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 21 kWh |
| Weight & dimensions | |
| Width (with stand) | 450.9 mm |
| Height (with stand) | 233 mm |
| Depth (with stand) | 647.6 mm |
| Weight (with stand) | 10.3 kg |
| Packaging data | |
| Package width | 560 mm |
| Package depth | 764 mm |
| Package height | 322 mm |
| Package weight | 14.3 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | AC/DC |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 7.13 kg |
| Display viewable area (HxV) | 597.88 x 336.31 mm |
| Weight (with stand) | 10.3 kg |
| Other features | |
| Power supply type | AC/DC |
| Number of simultaneous touchpoints | 10 |
| Weight (without stand) | 7.13 kg |
| Display viewable area (HxV) | 597.88 x 336.31 mm |
| Width (with stand) | 450.9 mm |
| Mean time between failures (MTBF) | 50000 h |
| Height (with stand) | 233 mm |
| Display technology | LED |
| Depth (with stand) | 647.6 mm |
| Weight (with stand) | 10.3 kg |
| Maximum refresh rate | 60 Hz |
