DXS-3610-54T - 48-port 10GBase-T, 6-port 100G QSFP28 interfaces switch with Standard Image with 2 front-to-back AC PSUs and 5 front-to-back fan modules
The DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy
The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.

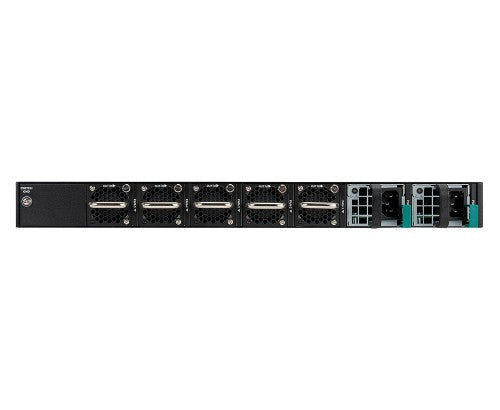

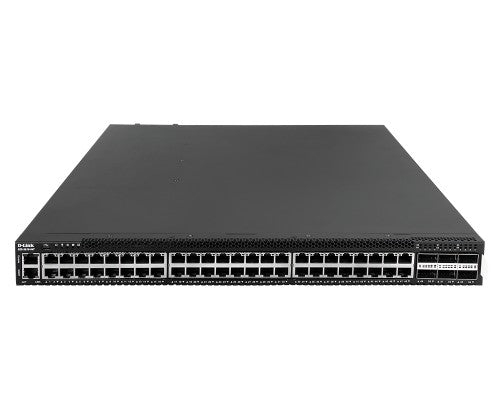

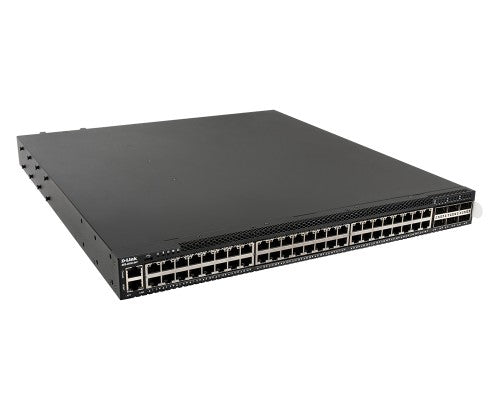

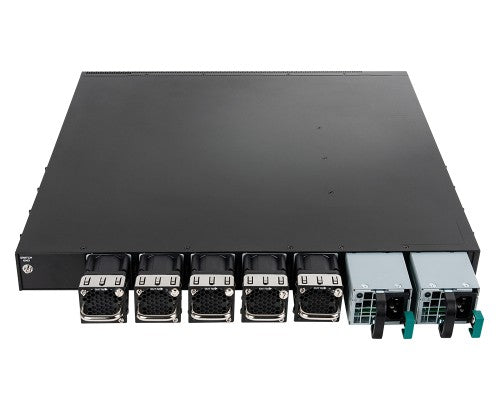

D-Link 48-port 10GBase-T Layer 3 Stackable 10G Managed Switch
£11,631.35
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- High port density: 48 x 10 GbE Base-T ports, 6 x 100G QSFP+ ports
- Stack up to 12 switches (up to 1.2 Tbps stacking bandwidth)
- OpenFlow 1.3 compliance for SDN-enabled network compatibility
- Modular PSU (1+1) and fan (N+1) with load sharing capabilities
- Switch locator LED and ID tag for maintenance convenience
- Upgradable license for full L3 and MPLS applications
Description
OpenFlow Switching that Stacks Above the CompetitionThe DXS-3610 Layer 3 Stackable 10G/100G Managed OpenFlow Switches are compatible with SDN-enabled network architecture for deployment in high-performance datacenter, enterprise, and campus applications. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption. Stackable up to 12 units and high port density makes the DXS-3610 the ideal choice for future-proofing your aggregation/core network.
High Availability
The DXS-3610 Series boasts high-performance 10G Ethernet switching capacity of up to 2.16 Tbps with forwarding rates of up to 1607 Mpps.
Hot-Swappable Redundancy
The DXS-3610 Series also features a modular fan back-up design, providing n+1 redundancy for the system. The modular power design allows either AC or DC power sources for maximum deployment flexibility. With dual power modules, the power load is distributed, extending the lifetime of the modules.
Robust and Versatile Stacking Capability
Stack up to 12 DXS-3610 switches with up to a total of 1200G (1.2T) stacking bandwidth. Perfect for small to medium-sized data centers in enterprise or campus applications using leaf-spine or top-of-rack (ToR) architecture.
Enhanced Manageability for Peace of Mind
For more complex network infrastructures, D-View 7, a centralized management platform, can be installed for in-depth network management and maintenance to optimize network availability, reliability, security, and resilience.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 48 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45 |
| QSFP28 ports quantity | 6 |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9436 |
| Packet buffer memory | 32 MB |
| MAC address table | 294912 entries |
| Switching capacity | 2211.84 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 1607.04 Mpps |
| Security | |
| BPDU filtering/protection | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3 |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Electromagnetic compatibility | FCC, CE, C-Tick, IC, VCCI |
| Rack mounting | Yes |
| Number of fans | 5 fan(s) |
| Certification | CB, cUL, LVD |
| Performance | |
| Physical stacking (units) | 12 |
| Virtual stacking (units) | 32 |
| Noise level | 76.6 dB |
| Packet buffer memory | 32 MB |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 330.2 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 108.2 W |
| Redundant power supply (RPS) support | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 1126 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN |
| Weight & dimensions | |
| Weight | 9.88 kg |
| Technical details | |
| Physical stacking (units) | 12 |
| Virtual stacking (units) | 32 |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Noise level | 76.6 dB |
| Rack mounting | Yes |
| Certificates | |
| Electromagnetic compatibility | FCC, CE, C-Tick, IC, VCCI |
| Certification | CB, cUL, LVD |
| Memory | |
| Packet buffer memory | 32 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
