6000 VA, 6000 W, PF >0.98, 48 dB, 220 - 240 V, 50 / 60 Hz, USB, RS-232, 20 kg, black
The Sentinel Dual range is available in 4 kVA and 5-6-8-10 kVA/kW models with ON LINE double conversion technology (VFI): the load is powered continuously by the inverter which supplies a sinusoidal voltage, filtered and stabilised in terms of voltage, form and frequency.
Reduce your power consumption using ECO and SMART ACTIVE modes. Prioritise your most critical loads with EnergyShare sockets that enable easy load-shedding. Load-controlled fans minimise noise disruption (<48 dBA).

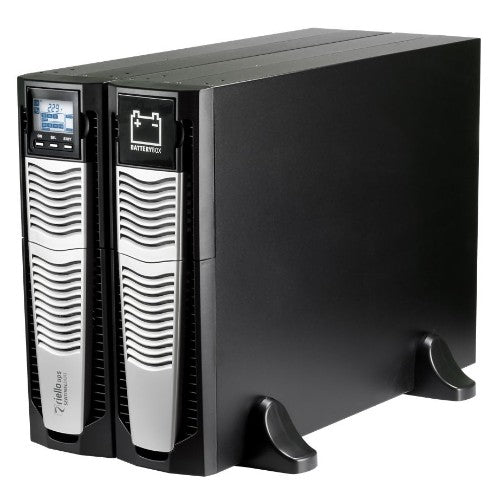

Riello Sentinel Dual SDU 6000 ER uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 2 AC outlet(s)
Sale price
£1,730.78
Regular price
£3,103.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features

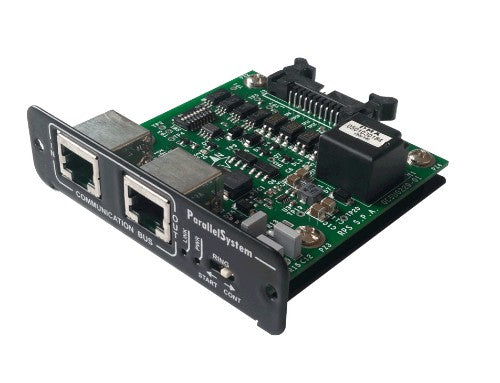

- Parallelable up to 3 units
- Simplified installation
- Operating mode selection
- High quality output voltage
- High battery reliability
Description
Sentinel Dual is the best solution for powering mission critical applications and electro-medical devices requiring maximum power reliability.The Sentinel Dual range is available in 4 kVA and 5-6-8-10 kVA/kW models with ON LINE double conversion technology (VFI): the load is powered continuously by the inverter which supplies a sinusoidal voltage, filtered and stabilised in terms of voltage, form and frequency.
Reduce your power consumption using ECO and SMART ACTIVE modes. Prioritise your most critical loads with EnergyShare sockets that enable easy load-shedding. Load-controlled fans minimise noise disruption (<48 dBA).
Specifications
| Power | |
|---|---|
| Output power | 6000 W |
| Input operation voltage (min) | 184 V |
| Input operation voltage (max) | 264 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Power factor | 0.98 |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| Efficiency (On-line mode) | 95% |
| Efficiency (ECO mode) | 98% |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of input phases | 1 |
| Surge protection | Yes |
| Power protection features | Battery discharge, Over current, Over voltage, Overheating, Short circuit, Under voltage |
| Noise level | 48 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Number of input phases | 1 |
| Output power | 6000 W |
| Input operation voltage (min) | 184 V |
| Input operation voltage (max) | 264 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge protection | Yes |
| Power protection features | Battery discharge, Over current, Over voltage, Overheating, Short circuit, Under voltage |
| Power factor | 0.98 |
| Noise level | 48 dB |
| Crest factor | 3:1 |
| Output power capacity | 6 kVA |
| Efficiency (On-line mode) | 95% |
| Efficiency (ECO mode) | 98% |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| AC outlets quantity | 2 AC outlet(s) |
| AC outlet types | C13 coupler, IEC 320, Terminal |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 6 h |
| Design | |
| Rack capacity | 3U |
| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |
| Safety | EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU |
| Cooling type | Active |
| Certification | EN 62040-2, 2014/30/EU |
| Built-in fan | Yes |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 4000 m |
| Technical details | |
| Output frequency | 50/60 Hz |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Certificates | |
| Certification | EN 62040-2, 2014/30/EU |
| Compliance certificates | RoHS |
| Safety | EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU |
| Packaging content | |
| Cables included | USB cable |
| Cooling | |
| Cooling type | Active |
| Built-in fan | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Safety regulation & standards | |
| Safety | EN 62040-1:2008; EN 62040-1/EC:2009; EN 62040-1/A1:2013 and Directive 2014/35/EU |
| Weight & dimensions | |
| Weight | 20 kg |
| Width | 131 mm |
| Height | 448 mm |
| Depth | 640 mm |
| Packaging data | |
| Cables included | USB cable |
