19", 1280 x 1024, VGA/DVI/HDMI interface, Front IP65 Monitor

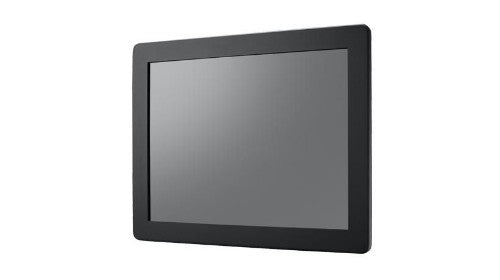

Advantech IDS-3319 48.3 cm (19") LCD 350 cd/m² SXGA Black Touchscreen
£572.90
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Front IP65 for waterproof and dustproof
- 19" SXGA LCD panel with LED backlight
- 20 ~ +60 °C wide range operation temperature
- 5-wire resistive and P-cap touchscreen solution or tempered smudge resistant protected glass
- Multiple signal interfaces with HDMI, VGA & DVI
- Standard integrated frame
- Versatile mounting methods for rear mounting and VESA mounting
- Anti-Reflective treatment (optional)
- Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)
Description
Advantech IDS-3319 Front IP65 Monitor Series offer waterproof and dustproof design supporting a 19" 1280 x 1024 pixels LCD screen, with -20 ~ 60℃ wide operating temperature, and optional touch touchscreens. The series supports rear and VESA mounting and is ideal for different embedded applications.Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.78 million colours |
| Number of simultaneous touchpoints | 5 |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 350 cd/m² |
| HD type | SXGA |
| Response time | 7 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Panel life | 70000 h |
| Touchscreen technology | Resistive |
| Ports & interfaces | |
| USB port | Yes |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| RS-232 interface | Yes |
| USB ports quantity | 1 |
| Design | |
| Placement supported | Outdoor |
| Product colour | Black |
| VESA mounting | Yes |
| Performance | |
| Purpose | Commercial |
| Panel life | 70000 h |
| Power | |
| Power consumption (typical) | 60 W |
| AC input voltage | 100 - 240 V |
| Input voltage | 12 V |
| Weight & dimensions | |
| Width | 449 mm |
| Depth | 49 mm |
| Height | 374 mm |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -30 - 70 °C |
| Technical details | |
| VESA mounting | Yes |
| Number of simultaneous touchpoints | 5 |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Number of simultaneous touchpoints | 5 |
| Display technology | LCD |
| DC-in jack | Yes |
| Input voltage | 12 V |
