8x 10G SFP+, 160 Gbps, 1U
The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.

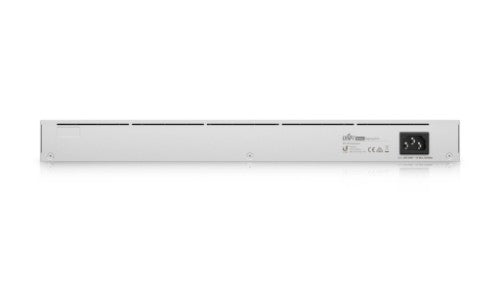

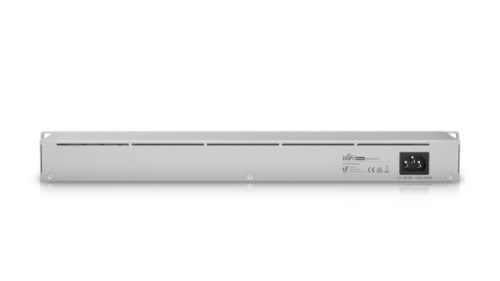

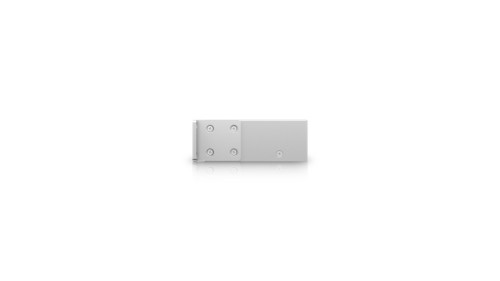

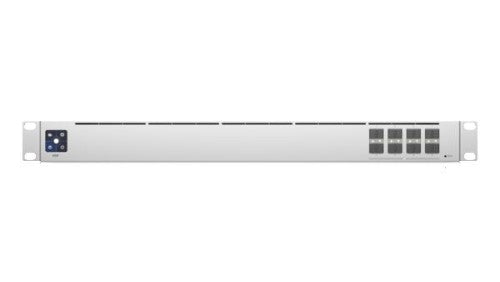

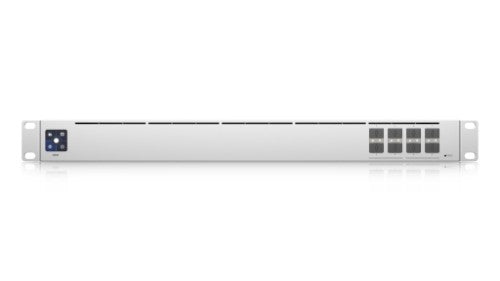

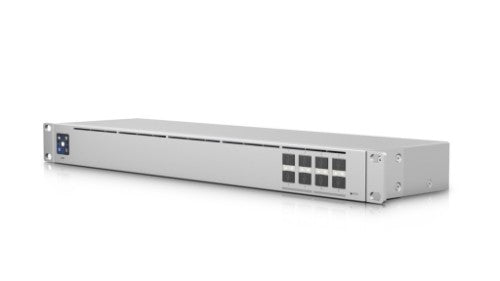

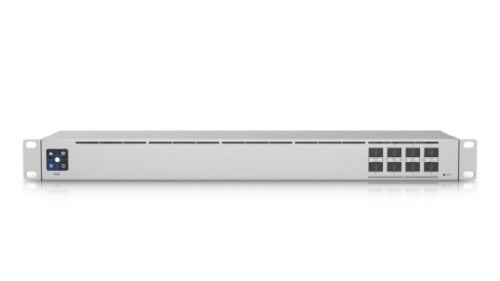

Ubiquiti USW-AGGREGATION network switch Managed L2 1U Silver
MPN:
USW-AGGREGATION
Low stock: 4
£244.61
VAT included.
Shipping calculated at checkout.
Details
Key Features
- (8) 10G SFP+ Ports
- 160 Gbps switching capacity
- 1.3" Touchscreen with AR switch management
- Fanless, 4.7" depth compact enclosure
- 1U Rackmountable (kit included)
Description
Managed layer 2 aggregation switch sporting (8) 10G SFP+ ports for high capacity link aggregation.The UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.
Specifications
| Technical details | |
|---|---|
| Form factor | 1U |
| Product colour | Silver |
| Housing material | Galvanized steel |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | No |
| Network | |
| 10G support | Yes |
| Data transmission | |
| Switching capacity | 160 Gbit/s |
| Forwarding rate | 119.04 Mpps |
| Throughput | 80 Gbit/s |
| Certificates | |
| Certification | CE, FCC, IC |
| Design | |
| Form factor | 1U |
| Product colour | Silver |
| LED indicators | System |
| Housing material | Galvanized steel |
| Certification | CE, FCC, IC |
| Rack mounting | Yes |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Fanless | Yes |
| Indication | |
| LED indicators | System |
| Power | |
| Power consumption (max) | 30 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 442.4 mm |
| Depth | 120 mm |
| Height | 43.7 mm |
| Weight | 2.65 kg |
| Packaging data | |
| Rack mount kit | Yes |
| Cables included | AC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Rack mount kit | Yes |
| Cables included | AC |
