800 VA, 640 W, 162 - 290 V, 50/60 Hz, 120 x 443 x 247 mm, 10.5 Kg
The Vision range is available in models from 800 VA to 2000 VA with sinusoidal digital technology.
The Vision range, with its advanced communications and connectivity options, is the ideal solution for installations requiring superior protection and versatility in the power supply system.
Vision provides proven protection of peripheral network devices, servers, and network back-up systems.
Superior protection
The Vision range uses LINE INTERACTIVE technology and provides a sinusoidal output. This technology provides efficiency levels of 98% and therefore reduced energy consumption. It also ensures a high level of protection against mains power disturbances.
The automatic voltage regulator (AVR) provides protection from surges, overvoltages and undervoltages, without battery intervention. Reduced battery usage ensures that the battery set is 100% available for mains power supply failures and is able to provide greater autonomy.
EMI filters then provide further protection from voltage surges and transients. When the mains power supply fails, the load is powered by the inverter and receives a perfectly sinusoidal supply for maximum power continuity and reliability. With energy savings in mind, the Vision range features a shut-off button to reduce energy consumption to zero during periods of prolonged inactivity.
High availability
An EnergyShare socket allows load-shedding and the shutdown of less sensitive peripheral devices to extend battery runtime for critical loads. “Hot Swap” batteries can be removed via the front panel for easy and safe UPS maintenance. Battery test facility to detect deteriorating battery performance. Deep discharge protection to reduce battery ageing.
Versatility
Cold Start function to allow the UPS to power up with no mains power supply present.
LCD display
Vision models have a backlit LCD display providing UPS status information, load and battery performance.
Advanced communications
- Advanced multi-platform communications for all operating systems and network environments: PowerShield3 monitoring and shutdown software for Windows operating systems 10, 8, 7, Hyper-V, 2019, 2016, 2012, and previous versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems;
- USB or RS232 serial port interface (selectable);
- Expansion slot for interface boards;
- Status, measurements, alarms and input, output and battery parameters available on LCD display.

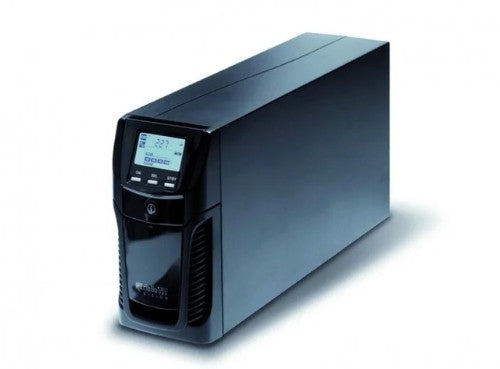

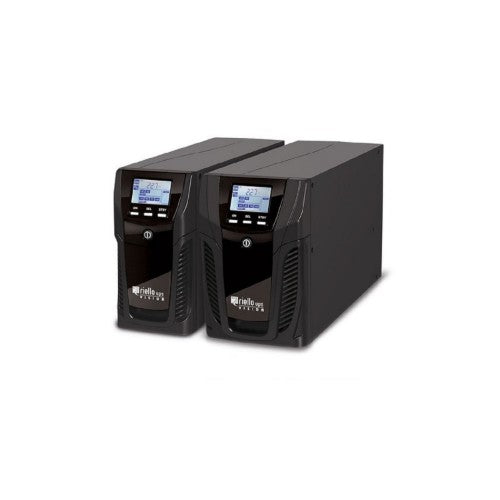

Riello VST 800 uninterruptible power supply (UPS) Line-Interactive 0.8 kVA 640 W 4 AC outlet(s)
Sale price
£229.03
Regular price
£379.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- EnergyShare socket
- Ability to switch on the UPS in the absence of mains power (Cold Start)
- Batteries are user replaceable without switching off equipment and without interruption to the load (Hot Swap)
- Maximum reliability and protection of PCs thanks to PowerShield3 monitoring and shutdown software, which can be downloaded free at www.riello-ups.com
- Fully configurable using UPS Tools configuration software
- Highly reliable batteries (automatic and manually-activated battery test)
- Built-in short circuit protection
- Auto restart (when mains power is restored, after discharge of the batteries)
- GS/Nemko safety seal
Description
Ideal solution for the most demanding users.The Vision range is available in models from 800 VA to 2000 VA with sinusoidal digital technology.
The Vision range, with its advanced communications and connectivity options, is the ideal solution for installations requiring superior protection and versatility in the power supply system.
Vision provides proven protection of peripheral network devices, servers, and network back-up systems.
Superior protection
The Vision range uses LINE INTERACTIVE technology and provides a sinusoidal output. This technology provides efficiency levels of 98% and therefore reduced energy consumption. It also ensures a high level of protection against mains power disturbances.
The automatic voltage regulator (AVR) provides protection from surges, overvoltages and undervoltages, without battery intervention. Reduced battery usage ensures that the battery set is 100% available for mains power supply failures and is able to provide greater autonomy.
EMI filters then provide further protection from voltage surges and transients. When the mains power supply fails, the load is powered by the inverter and receives a perfectly sinusoidal supply for maximum power continuity and reliability. With energy savings in mind, the Vision range features a shut-off button to reduce energy consumption to zero during periods of prolonged inactivity.
High availability
An EnergyShare socket allows load-shedding and the shutdown of less sensitive peripheral devices to extend battery runtime for critical loads. “Hot Swap” batteries can be removed via the front panel for easy and safe UPS maintenance. Battery test facility to detect deteriorating battery performance. Deep discharge protection to reduce battery ageing.
Versatility
Cold Start function to allow the UPS to power up with no mains power supply present.
LCD display
Vision models have a backlit LCD display providing UPS status information, load and battery performance.
Advanced communications
- Advanced multi-platform communications for all operating systems and network environments: PowerShield3 monitoring and shutdown software for Windows operating systems 10, 8, 7, Hyper-V, 2019, 2016, 2012, and previous versions, Mac OS X, Linux, VMWare ESXi, Citrix XenServer and other Unix operating systems;
- USB or RS232 serial port interface (selectable);
- Expansion slot for interface boards;
- Status, measurements, alarms and input, output and battery parameters available on LCD display.
Specifications
| Power | |
|---|---|
| Output power | 640 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output power capacity | 0.8 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Power protection features | Battery discharge, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Noise level | 40 dB |
| Features | |
| Output frequency | 50/60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power | 640 W |
| Input operation voltage (min) | 162 V |
| Input operation voltage (max) | 290 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Power protection features | Battery discharge, Over voltage, Overheating, Overload, Short circuit, Under voltage |
| Noise level | 40 dB |
| Output power capacity | 0.8 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |

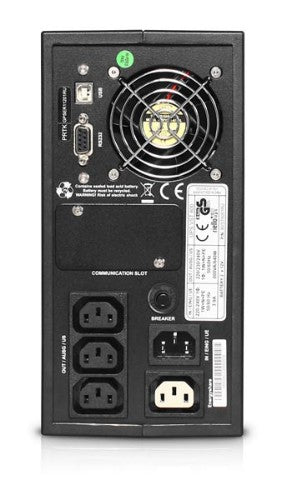

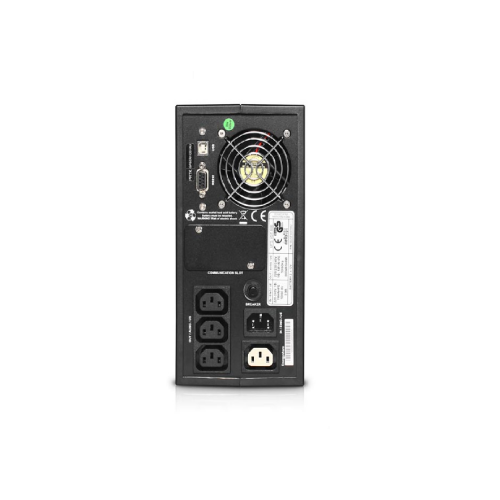

| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 6 h |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Safety | IEC EN 62040-1, EMC IEC EN 62040-2 |
| Certification | L V 2014/35/EU, EMC 2014/30/E |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Output frequency | 50/60 Hz |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 208 mm |
| Package depth | 530 mm |
| Package height | 342 mm |
| Weight | 10.5 kg |
| Width | 120 mm |
| Package weight | 12.2 kg |
| Height | 247 mm |
| Depth | 443 mm |
| Packaging data | |
| Manual | Yes |
| Package width | 208 mm |
| Package depth | 530 mm |
| Package height | 342 mm |
| Package weight | 12.2 kg |
| Certificates | |
| Safety | IEC EN 62040-1, EMC IEC EN 62040-2 |
| Certification | L V 2014/35/EU, EMC 2014/30/E |
| Packaging content | |
| Manual | Yes |
