1/2.8”,CMOS, 1920x1080p (HDTV 1080p), IK08, IK10, IP66, 1024 MB RAM, 512 MB Flash, PoE, AC, Pan, Tilt, 3kg

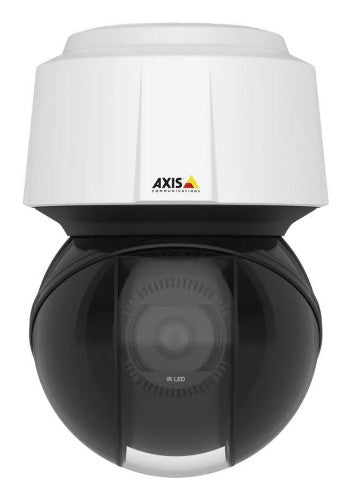

Axis 01958-002 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
MPN:
01958-002
Out of stock
Price excluding VAT:
Exc Vat £2,075.37
Price including VAT:
Inc Vat £2,490.44
Shipping calculated at checkout.
Details
Key Features
- Autotracking 2 and orientation aid; HDTV 1080p with 32x optical zoom; Lightfinder 2.0; OptimizedIR (250 m/820 ft range); TPM, FIPS 140-2 level 2 certified
Description
AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.Specifications
| Performance | |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Minimum illumination | 0.01 lx |
| Tilt angle range | 20 - 90° |
| Tilt speed | 500 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 700 °/sec |
| Camera shutter speed | 1/66500 s to 2s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
| Maximum aperture number | 4 |
| Auto focus | Yes |
| Minimum aperture number | 1.4 |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 250 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 320 x 180, 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Video streaming | Yes |
| Network | |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT, Syslog |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1204 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | AC, PoE |
| Power consumption (max) | 51 W |
| Power consumption (Power over Ethernet (PoE)) | 37 W |
| AC input voltage | 100-240 V |
| Power consumption (typical) | 13.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 241 mm |
| Diameter | 16.5 cm |
| Weight | 3 kg |
| Packaging content | |
| Number of cameras | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
