1/2.8”, CMOS, 4.3-137.6 mm, F1.4 - 4.0, 1/66500 - 2s, 1024 MB RAM, 512 MB Flash, H.264/H.265, 1920 x 1080p

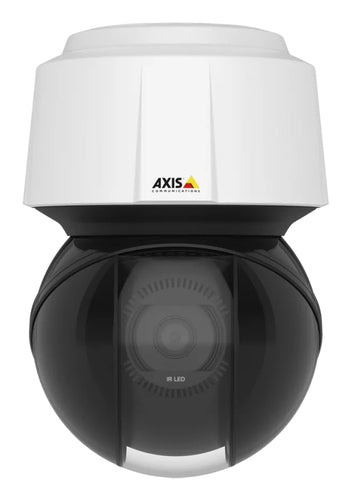

Axis 01958-003 security camera Dome IP security camera Outdoor 1920 x 1080 pixels Wall
MPN:
01958-003
Low stock: 2
Price excluding VAT:
Exc Vat £2,031.52
Price including VAT:
Inc Vat £2,437.82
Shipping calculated at checkout.
Details
Key Features
- Autotracking 2 and orientation aid; HDTV 1080p with 32x optical zoom; Lightfinder 2.0; OptimizedIR (250 m/820 ft range); TPM, FIPS 140-2 level 2 certified
Description
AXIS Q6135-LE offers HDTV 1080p with 32x optical zoom. It features OptimizedIR up to 250 m (820 ft) or more depending on the scene and Lightfinder 2.0 for clear, sharp images even in challenging light. Sharpdome technology allows you to see 20° above the horizon with the same sharp image quality as below. It includes orientation aid and autotracking 2 with click and track functionality. Privacy masking with mosaic lets you pixelate whole areas of the scene. It includes enhanced security features such as signed firmware, secure boot and TPM module. Plus, Axis Zipstream with support for H.264 and H.265.Specifications
| Performance | |
|---|---|
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| PTZ modes | Preset point |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Design | |
| IK code | IK08 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Wall |
| International Protection (IP) code | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Tilt angle range | -90 - 20° |
| Pan range | 0 - 360° |
| Camera shutter speed | 1/66500 - 2 s |
| Lens viewing angle, horizontal | 58.3° |
| Lens viewing angle, vertical | 34.9° |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 32x |
| Digital zoom | 12x |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 250 m |
| LED type | IR |
| Video | |
| Text caption overlay | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 320 x 180 |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Video recording | Yes |
| Audio | |
| Audio input channels | 2.0 channels |
| Audio system | 2-way |
| Network | |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, LLDP, MQTT v3.1.1, Syslog |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | Yes |
| HDD capacity | 1 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | E-mail, Snapshot alert message |
| Security algorithms | EAP-TLS, HTTPS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 74 W |
| Power consumption (Power over Ethernet (PoE)) | 74 W |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 13.5 W |
| Operational conditions | |
| Operating temperature (T-T) | -50 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Height | 241 mm |
| Diameter | 16.5 cm |
| Weight | 3 kg |
| Packaging content | |
| Number of cameras | 1 |
| Other features | |
| Video compression formats | H.264, H.265, M-JPEG |
| Logistics data | |
| Harmonized System (HS) code | 85258900 |
