EloPOS System, 17'' diagonal, Active matrix TFT LCD (LED) 1280x1024, Intel Q370 Express, Intel Core i5-8500T, Intel UHD Graphics 630, 8GB 2666MHz DDR4 SO-DIMM, 128GB M.2 SATA SSD, Wi-Fi 802.11 a/b/g/n/ac 2.4/5GHz, Bluetooth 5.0, Wall Mount & I/O Hub
Modern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 17-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.
Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Elo Edge Connect Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.

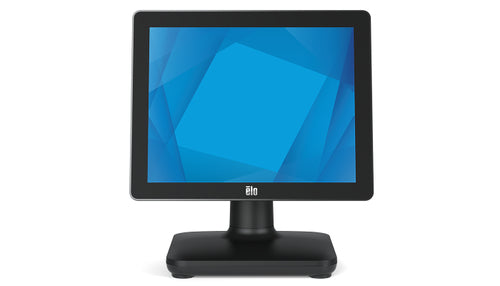

Elo Touch Solutions 17-inch (5:4) EloPOS All-in-One 2.1 GHz i5-8500T 43.2 cm (17") 1280 x 1024 pixels Touchscreen Black
MPN:
E484700
Low stock: 1
£1,641.39
VAT included.
Shipping calculated at checkout.
Details
Description
EloPOS SystemModern. Modular. Made for Retail.
The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 17-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.
Interactive Points of Sale
The EloPOS System is designed to offer flexibility across environments. Whether you need a fixed-lane point of sale system or a self-order solution, EloPOS can help ensure that every touch delivers the experience your employees need and your customers expect.
Connections. Connections. Connections.
The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all.
Add a Customer-Facing Display with Ease
The EloPOS System includes USB-C connectivity, allowing you to easily connect a 1302L customer-facing display - providing touch, data and power with just one cable. By reducing the number of cables required for setup from 3 to 1, installation and servicing is a breeze.
Elo Edge Connect Lets You do More!
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Windows or Linux. You Choose.
EloPOS utilizes the reliability-tested performance and security of Intel 8th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system. For added flexibility, the EloPOS offers models with no OS - all pretested with Linux SuSE, Ubuntu and Red Hat operating systems, allowing businesses to get the solution best-suited for them.
Retail-Hardened
Rigorously tested and backed by a three-year warranty, the EloPOS System delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design can easily withstand the adverse conditions associated with most commercial environments. Additional one and two-year warranty extensions are available as well as EloCare options - making EloPOS the ideal product for point of sale applications.
Specifications
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Touchscreen technology | Projected capacitive system |
| Touchscreen | Yes |
| Response time | 5 ms |
| Effective viewing area | 337.9 x 270.3 mm |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17") |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 5:4 |
| Display type | LED |
| Processor | |
| Processor cores | 6 |
| Processor cache | 9 MB |
| Processor threads | 6 |
| System bus rate | 8 GT/s |
| Processor frequency | 2.1 GHz |
| Processor family | Intel Core i5 |
| Processor model | i5-8500T |
| Motherboard chipset | Intel Q370 |
| Processor manufacturer | Intel |
| Processor generation | 8th gen Intel® Core™ i5 |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Internal memory | 8 GB |
| Memory clock speed | 2400 MHz |
| Maximum internal memory | 32 GB |
| Storage | |
| SSD interface | Serial ATA |
| Total storage capacity | 128 GB |
| SSD capacity | 128 GB |
| Storage media | SSD |
| SSD form factor | M.2 |
| Number of storage drives supported | 1 |
| Graphics | |
| Graphics adapter manufacturer | Intel |
| Graphics adapter | UHD Graphics 630 |
| Features | |
| Certification | UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Hard drive | |
| Total storage capacity | 128 GB |
| SSD capacity | 128 GB |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 2 |
| Serial ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Video | |
| Graphics adapter manufacturer | Intel |
| Graphics adapter | UHD Graphics 630 |
| Design | |
| Product colour | Black |
| Chassis type | All-in-One |
| Performance | |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Power supply | 180 W |
| Power consumption (typical) | 76 W |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 20 - 80% |
| Operating temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 35% |
| Certificates | |
| Certification | UL/cUL, FCC, TUV, CE, CB, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC |
| Ergonomics | |
| VESA mounting | Yes |
| Product colour | Black |
| Wall mountable | Yes |
| Panel mounting interface | 75 x 75 mm |
| Mean time between failures (MTBF) | 50000 h |
| Audio | |
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Weight & dimensions | |
| Width | 393.5 mm |
| Depth | 325.9 mm |
| Height | 83.3 mm |
| Width (with stand) | 393.5 mm |
| Depth (with stand) | 325.9 mm |
| Height (with stand) | 221.3 mm |
| Weight | 4.8 kg |
| Weight (with stand) | 6.7 kg |
| Package width | 476 mm |
| Package depth | 197 mm |
| Package height | 400 mm |
| Package weight | 6.8 kg |
| Packaging data | |
| Package width | 476 mm |
| Package depth | 197 mm |
| Package height | 400 mm |
| Package weight | 6.8 kg |
| Technical details | |
| Product colour | Black |
| Wall mountable | Yes |
| Panel mounting interface | 75 x 75 mm |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Other features | |
| Chassis type | All-in-One |
