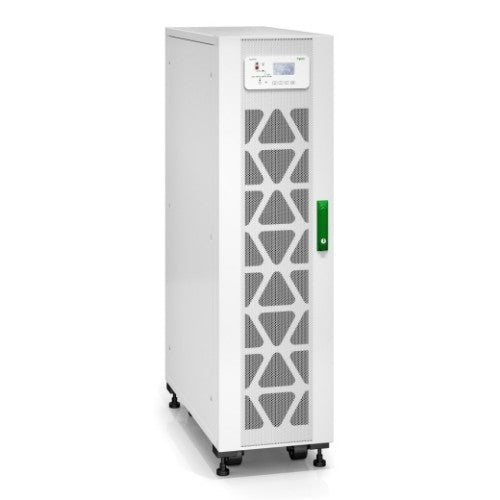

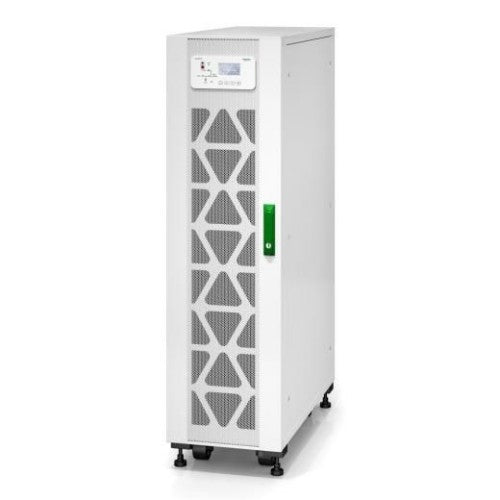

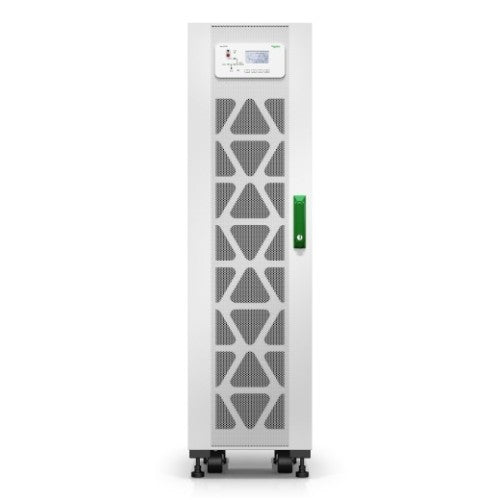

Easy UPS 3S 20 kVA 400 V (3:1)
APC Easy uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
Sale price
£6,361.38
Regular price
£7,625.71
Taxes included.
Shipping calculated at checkout.
Details
Description
Easy UPS 3S 20 kVA 400 V (3:1)Specifications
| Power | |
|---|---|
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 20000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 37 A |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 20 kVA |
| ECO mode | Yes |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Number of input phases | 3 |
| LED indicators | Yes |
| Features | |
| UPS topology | Double-conversion (Online) |
| Number of input phases | 3 |
| Output power factor | 1 |
| Input power factor | 0.99 |
| Output power | 20000 W |
| Input operation voltage (min) | 304 V |
| Input operation voltage (max) | 477 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Maximum current | 37 A |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 20 kVA |
| ECO mode | Yes |
| Input frequency | 45/65 Hz |
| Battery | |
| Number of batteries supported | 2 |
| Battery voltage | 240 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 15 min |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | White |
| Certification | EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 1000 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | CE, RoHS |
| Certificates | |
| Certification | EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM |
| Compliance certificates | CE, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Weight | 177 kg |
| Width | 380 mm |
| Package weight | 186 kg |
| Height | 1400 mm |
| Depth | 907 mm |
| Packaging data | |
| Package width | 563 mm |
| Package depth | 1014 mm |
| Package height | 1640 mm |
| Package weight | 186 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
