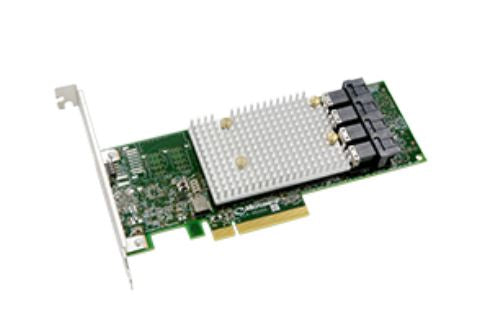

SmartHBA 2100-16i - 12 Gbps PCIe Gen3 SAS/SATA
Adaptec SmartHBA 2100-16i interface cards/adapter Internal Mini-SAS HD
£311.05
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Combines full HBA functionality with basic hardware RAID
- Offers basic RAID functionality for up to 32 devices supporting RAID levels 0, 1, 10, and 5 in conjunction with full HBA functionality for up to 238 devices in the same solution
- Broad operating system support through highly efficient, low-latency PQI driver (fully open-source for Linux®/FreeBSD® operating systems)
- 16 native SAS/SATA ports; low-profile MD2 form factor
- Significant power savings delivers lowest total cost of ownership versus competing solutions
Description
The SmartHBA 2100 Series, available in five different 12 Gbps configurations with up to 24 ports, uniquely combines the capabilities of a full-featured HBA, like the HBA 1100, with those of a basic RAID adapter using hardware RAID. The SmartHBA 2100 is an ideal solution for server-based storage systems that require maximum bandwidth and I/O connectivity, low power consumption, high reliability, plus options for data availability. The Smart Software stack even allows a combination of RAID and raw devices. This is useful in SDS environments where hardware RAID significantly increases OS boot reliability, but full HBA features and performance are otherwise needed.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Mini-SAS HD |
| Host interface | PCIe |
| Internal mini-SAS HD ports | 16 |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 3.0 |
| Technical details | |
| Hot-Plug support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Native Command Queuing (NCQ) | Yes |
| Data transfer rate (max) | 12 Gbit/s |
| Compliance certificates | RoHS |
| Performance | |
| Hot-Plug support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Native Command Queuing (NCQ) | Yes |
| Data transfer rate (max) | 12 Gbit/s |
| S.M.A.R.T. support | Yes |
| Harmonized System (HS) code | 84733020 |
| Built-in processor | Yes |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | CE, FCC, UL, C-tick, VCCI, KCC, CNS |
| Design | |
| Mean time between failures (MTBF) | 1360000 h |
| Hot-Plug support | Yes |
| Internal | Yes |
| Certification | CE, FCC, UL, C-tick, VCCI, KCC, CNS |
| Features | |
| RAID levels | 0, 1, 5, 10 |
| Native Command Queuing (NCQ) | Yes |
| Data transfer rate (max) | 12 Gbit/s |
| S.M.A.R.T. support | Yes |
| Harmonized System (HS) code | 84733020 |
| Built-in processor | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 167 mm |
| Height | 64 mm |
| Packaging data | |
| Mounting brackets included | Yes |
| Quantity | 1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Mounting brackets included | Yes |
| Quantity | 1 |
