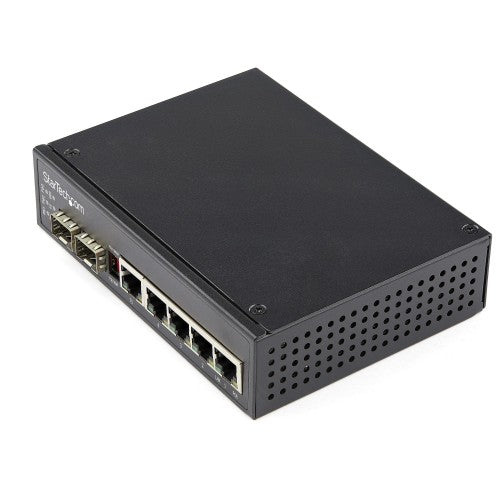

StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Connector/Mountable (IES1G52UPDIN)

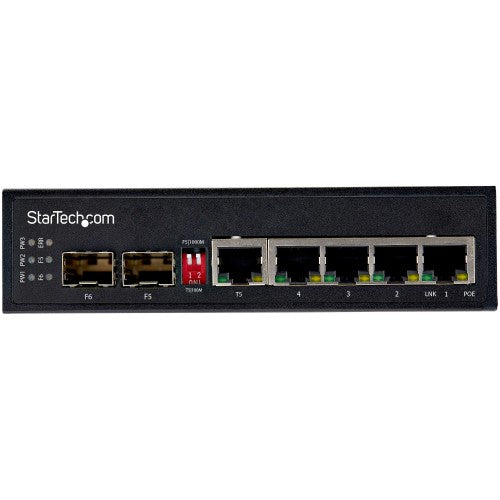

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & 48V Voltage
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

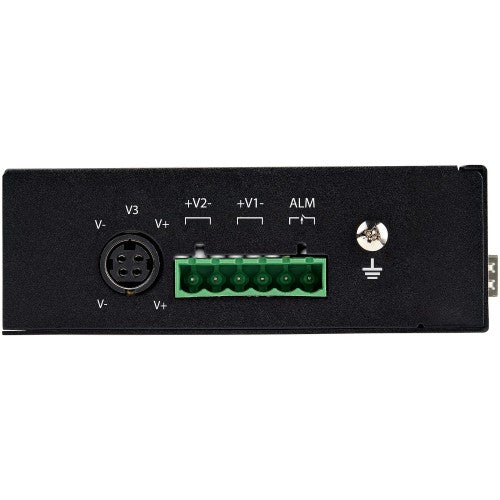

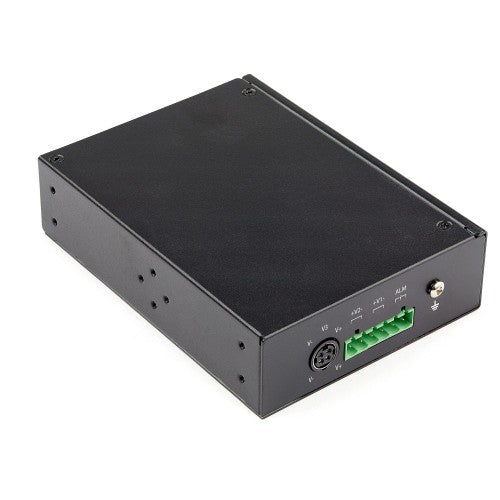

Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
StarTech.com Industrial 6 Port Gigabit Ethernet Switch 4 PoE RJ45 +2 SFP Slots 30W PoE+ 48VDC 10/100/1000 Power Over Ethernet LAN Switch -40C to 75C with DIN Connector/Mountable
Sale price
£84.55
Regular price
£109.99
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- FIBER & PoE: Industrial 6 Port Gigabit Ethernet Switch IEEE 802.3af (PoE) or 802.3at (PoE+) 30W max per 4 x PoE ports PSE + 2 x open SFP slots / Use with devices like cameras, sensors, wi-fi APs
- FLEXIBLE POWER INPUT: Use a DIN power connector or hardwire using terminal block power, or use dual power sources for redundancy / Input voltage range is 48-56V DC
- ROBUST DESIGN: Industrial Network Switch w/MTBF 500,000+hrs @ 50C / Vibration, shock & free fall rated / Rugged industrial IP-30 aluminum housing / -40C to 75C hardened operating temp / DIN/Wall Mount
- TECH SPECS: 10/100/1000 Mbps Auto-Negotiation / Unmanaged / 6 Total Mixed Fiber/Copper Connections: 4 PoE ports + 1 SFP + 1 Flexible Copper or SFP port (MSA Compliant) / Total power budget: 120W
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years / This Gigabit PoE switch is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Description
Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 48V DC | DIN Rail MountableEasily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & 48V Voltage
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Performance | |
| Packet buffer memory | 1 MB |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 525058 h |
| Harmonized System (HS) code | 85176990 |
| Technical details | |
| Product colour | Black |
| Mean time between failures (MTBF) | 525058 h |
| Housing material | Steel |
| Rack mounting | No |
| Management features | |
| Switch type | Unmanaged |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Packet buffer memory | 1 MB |
| Switching capacity | 12 Gbit/s |
| Jumbo frames support | Yes |
| Protocols | |
| Supported network protocols | CSMA/CD |
| Certificates | |
| Safety | EN60950-1, MET (UL) 60950-1 |
| Certification | CE, RoHS, FCC, UL |
| Memory | |
| Packet buffer memory | 1 MB |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP30 |
| DIN rail mounting | Yes |
| Safety | EN60950-1, MET (UL) 60950-1 |
| Product colour | Black |
| LED indicators | Link, PoE, Power |
| Housing material | Steel |
| Certification | CE, RoHS, FCC, UL |
| Rack mounting | No |
| Indication | |
| LED indicators | Link, PoE, Power |
| Power | |
| Power consumption (max) | 126 W |
| Surge protection voltage | 2 kV |
| DC input voltage | 48 - 56 V |
| Surge protection | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 105 mm |
| Depth | 142 mm |
| Height | 36.2 mm |
| Weight | 492 g |
| Packaging data | |
| Terminal block included | Yes |
| Quick start guide | Yes |
| Package width | 211 mm |
| Package depth | 162 mm |
| Package height | 64 mm |
| Package weight | 737 g |
| Logistics data | |
| Master (outer) case width | 355 mm |
| Master (outer) case length | 345 mm |
| Master (outer) case height | 225 mm |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Terminal block port | Yes |

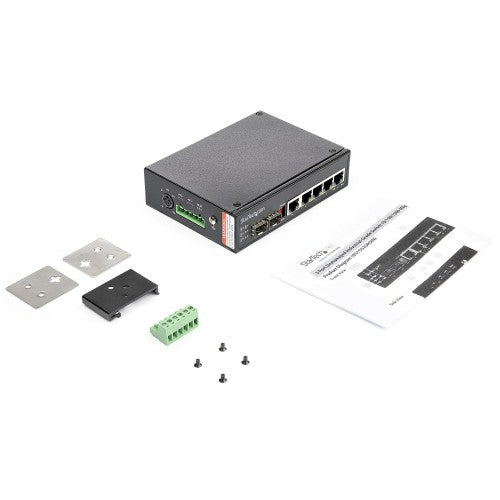

| Packaging content | |
| Terminal block included | Yes |
| Quick start guide | Yes |
