8 x 10/100/1000BASE-, 2 x SFP, 20 Gbps, 4K MAC, 190 x 100 x 28 mm, IP40
Plug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment

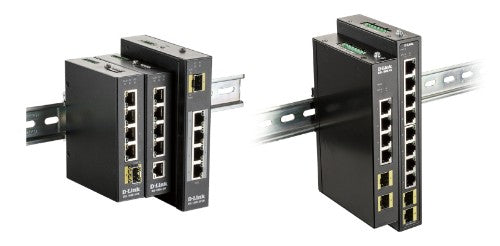

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 190 x 100 x 28 mm.

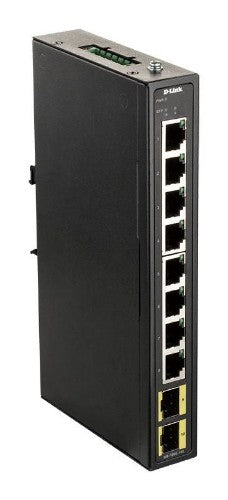

D-Link 8-port Gigabit Industrial Switch including 2 x 100/1000M SFP
Sale price
£115.70
Regular price
£168.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 8 x 100/1000Base-T ports, 2 x 100/1000BaseSFP slots
- Unmanaged plug-and-play simplicity
- Withstands extreme temperatures
- Tested against for vibration, shock, free-fall, EMC
Description
Unmanaged Plug and PlayPlug in and go. The DIS-100G-5SW reliably forwards Ethernet frames.
Gigabit Connectivity with SFP slot
Designed with 4 x 100/1000Base-T ports and 1 x 100/1000BaseSFP slot to suit a range of devices and network layouts.
Officially Certified
Certifications for vibration, shock, free-fall, NEMA‑TS2 Section 2, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.
Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.
Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 190 x 100 x 28 mm.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology | 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Transmission method | Store-and-forward |
| Forwarding rate | 14.88 Mpps |
| Design | |
| International Protection (IP) code | IP40 |
| Form factor | DIN rail |
| Product colour | Black |
| Stackable | Yes |
| LED indicators | Yes |
| Certification | 47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8 IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration CE, FCC |
| Performance | |
| Mean time between failures (MTBF) | 392267 h |
| Fanless | Yes |
| Stackable | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 7.44 W |
| Input current | 1 A |
| DC input voltage | 12 - 48 V |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 85 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 190 mm |
| Depth | 28 mm |
| Height | 100 mm |
| Weight | 498 g |
| Technical details | |
| Form factor | DIN rail |
| Product colour | Black |
| Stackable | Yes |
| Mean time between failures (MTBF) | 392267 h |
| Certificates | |
| Certification | 47 CFR FCC Part 15 Subpart B (Class A), ICES-003 Issue 6 (Class A) EN 61000-4-2 ESD, EN 61000-4-3 RS, EN 61000-4-4 EFT, EN 61000-4-5 Surge, EN 61000-4-6 CS, EN 61000-4-8 IEC 60068-2-27 Shock, • IEC 60068-2-32 Freefall, IEC 60068-2-6 Vibration CE, FCC |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
