DXS-1210-28T - 24 x 10GBASE-T, 4 x 10/25G SFP28
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.

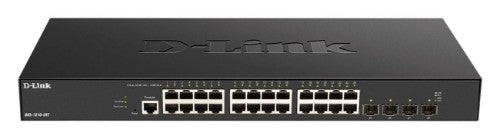

D-Link 24-port 10GBASE-T + 4-port 10/25G SFP28 Smart Managed Switch
Sale price
£1,360.25
Regular price
£2,387.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- Access Control List
- IP-MAC-Port Binding
- Clientless MAC/Web Access Control
- D-Link Safeguard Engine
- Port Security
- ARP Spoofing Prevention
Description
The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45 |
| SFP28 ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 24 |
| Network | |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| MAC address table | 32000 entries |
| Switching capacity | 680 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 505.92 Mpps |
| Number of VLANs | 4094 |
| Security | |
| Access Control List (ACL) rules | 256 |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3 |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Activity, Link, Speed |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE Class A FCC Class A VCCI Class A IC BSMI |
| Performance | |
| Noise level | 51.9 dB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 87.3 W |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Weight & dimensions | |
| Width | 441 mm |
| Depth | 209.5 mm |
| Height | 44 mm |
| Weight | 3.07 kg |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Noise level | 51.9 dB |
| Rack mounting | Yes |
| Certificates | |
| Certification | CE Class A FCC Class A VCCI Class A IC BSMI |
| Indication | |
| LED indicators | Activity, Link, Speed |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
