10.1", LCD, 1280x800, PCAP, USB, 242x165.6 mm
The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo’s touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.
How it Works

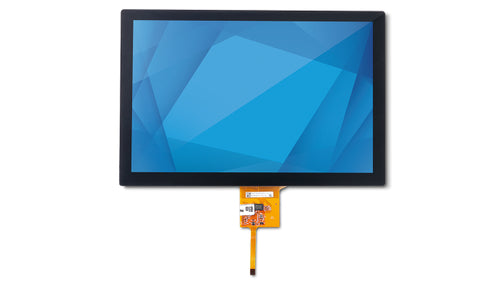

With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo’s Touchscreen Display Modules deliver reliability that is ready for integration.
Customize Your LCM
From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.

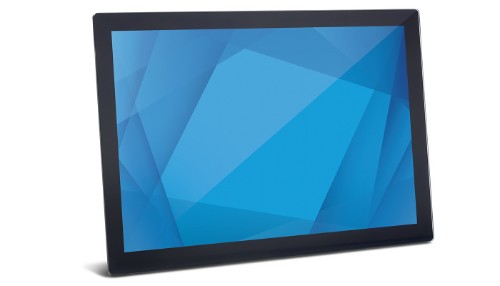

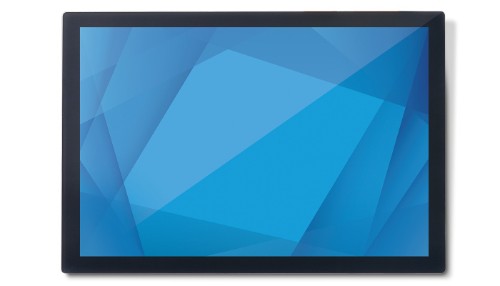

Elo Touch Solutions TouchPro 25.6 cm (10.1") LCD 400 cd/m² WXGA Black Touchscreen
£100.83
Taxes included.
Shipping calculated at checkout.
Details
Description
Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo’s touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.
How it Works
With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo’s Touchscreen Display Modules deliver reliability that is ready for integration.
Customize Your LCM
From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.
Specifications
| Display | |
|---|---|
| Number of simultaneous touchpoints | 10 |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 400 cd/m² |
| HD type | WXGA |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Touchscreen technology | Projected capacitive system |
| Design | |
| Product colour | Black |
| Screen shape | Flat |
| Performance | |
| Mean time between failures (MTBF) | 30000 h |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 70 °C |
| Technical details | |
| Number of simultaneous touchpoints | 10 |
| Height (without stand) | 165.6 mm |
| Other features | |
| Number of simultaneous touchpoints | 10 |
| Height (without stand) | 165.6 mm |
| Viewable size, vertical | 13.6 cm |
| Viewable size, horizontal | 21.8 cm |
| Mean time between failures (MTBF) | 30000 h |
| Display technology | LCD |
| Built-in microphone | No |
| Built-in camera | No |
