IEEE 802.11ac/a/b/g/n, 26dBm, 2.4+5 GHz, 2x2 MIMO, 26dBm, 4x N-type, 1x RJ-45, PoE
The ACCESS 1200 Dual AP can create multiple AP cells, which increases the number of devices able to connect per node and can achieve radio speeds up to 300Mbps and 867Mbps giving a potential bandwidth of 1167Mbps. It is fully integrateable with existing or new network installations were stable long range WiFi is required for connecting laptops, tablets or handheld devices.
Supports Bridging, MESHING, Roaming, PoE and comes with our FREE SilverView Controller Software.
SilverNet AP1200 1167 Mbit/s White Power over Ethernet (PoE)
MPN:
SIL AP1200
Out of stock
Price excluding VAT:
Exc Vat £635.43
Price including VAT:
Inc Vat £762.52
Shipping calculated at checkout.
Details
Description
The ACCESS 1200 Dual AP is a highly secure Dual Frequency WiFi access Point. Enhanced features, including, MIMO spatial multiplexing, ultrafast radio speed, gives the ACCESS 1200 Dual AP unparalleled data throughput capabilities of up to 240Mbps Duplex on 802.11n 2.4GHz and up to 500Mbps Duplex on 802.11ac 5GHz frequencies simultaneously.The ACCESS 1200 Dual AP can create multiple AP cells, which increases the number of devices able to connect per node and can achieve radio speeds up to 300Mbps and 867Mbps giving a potential bandwidth of 1167Mbps. It is fully integrateable with existing or new network installations were stable long range WiFi is required for connecting laptops, tablets or handheld devices.
Supports Bridging, MESHING, Roaming, PoE and comes with our FREE SilverView Controller Software.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1167 Mbit/s |
| Performance | |
| Full duplex | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Auto MDI/MDI-X | Yes |
| Country of origin | United Kingdom |
| Transmitting power | 26 dBmW |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Frequency band | 2.412-2.472, 5.1-5.8 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, -68dBm@1.3Gbps |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC |
| Maximum data transfer rate | 1167 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Wireless LAN features | |
| Frequency band | 2.412-2.472, 5.1-5.8 GHz |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Certificates | |
| Certification | CE, FCC |
| Software | |
| Bundled software | SilverView Pro Network Management & Monitoring Software |
| Number of VLAN IDs | 4095 |
| Automatic channel scanning | Yes |
| STA isolation (same VLAN) | Yes |
| MDI / DMI-X automatic switchover | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Duplex mode auto-negotiation | Yes |
| Features | |
| Full duplex | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Automatic channel selection | Yes |
| Auto MDI/MDI-X | Yes |
| Transmitting power | 26 dBmW |
| Frequency band | 2.412-2.472, 5.1-5.8 GHz |
| VLAN support | Yes |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, -68dBm@1.3Gbps |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 1167 Mbit/s |
| STA isolation (same VLAN) | Yes |
| Number of VLAN IDs | 4095 |
| MDI / DMI-X automatic switchover | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Duplex mode auto-negotiation | Yes |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| WLAN channel features | WLAN channel management |
| Virtual LAN features | IP subnet–based VLAN, Port-based VLAN, Tagged VLAN |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Security | |
| Security algorithms | 256-bit AES, SNMP, SNMPv2, SSH |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Internal RJ-45 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (max) | 16 W |
| Output voltage | 24-48, 48-56 V |
| Power plug type | Type G |
| Power consumption (typical) | 6 W |
| Power supply | 15.4 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Design | |
| International Protection (IP) code | IP67 |
| Placement | Pole |
| Country of origin | United Kingdom |
| Product colour | White |
| Reset button | Yes |
| LED indicators | LAN, Signal strength |
| Certification | CE, FCC |
| Cable length | 100 m |
| Antenna | |
| Number of connectors | 4 |
| Antenna type | External |
| Polarization | Dual polarization |
| Antennas quantity | 2 |

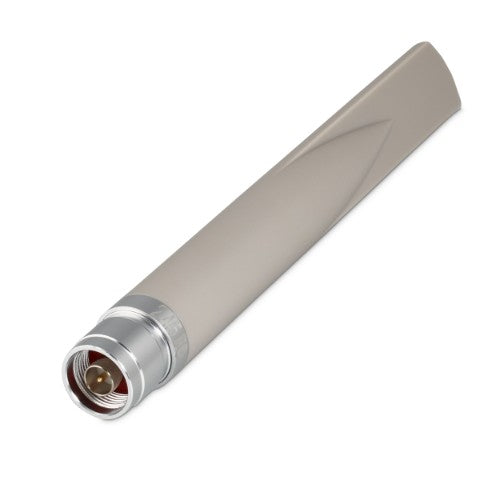

| Antenna connector type | N-type |
| Technical details | |
| Transmitting power | 26 dBmW |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -72dBm@867Mbps, -68dBm@1.3Gbps |
| Polarization | Dual polarization |
| Cable length | 100 m |
| Indication | |
| LED indicators | LAN, Signal strength |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 220 mm |
| Weight | 1.6 kg |
| Height | 75 mm |
| Package width | 307 mm |
| Package depth | 395 mm |
| Package height | 100 mm |
| Package weight | 2.15 kg |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Package type | Box |
| Package width | 307 mm |
| Package depth | 395 mm |
| Package height | 100 mm |
| Package weight | 2.15 kg |
| Bundled software | SilverView Pro Network Management & Monitoring Software |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| Bundled software | SilverView Pro Network Management & Monitoring Software |

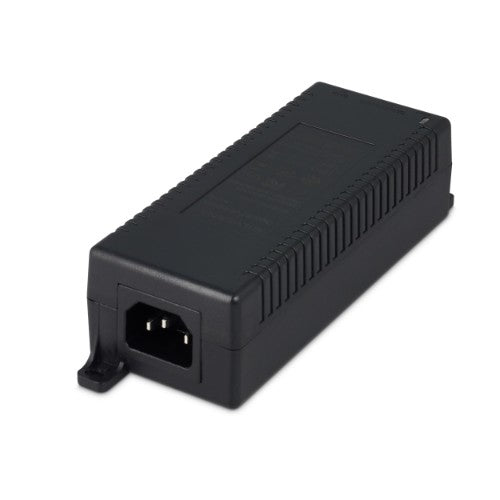

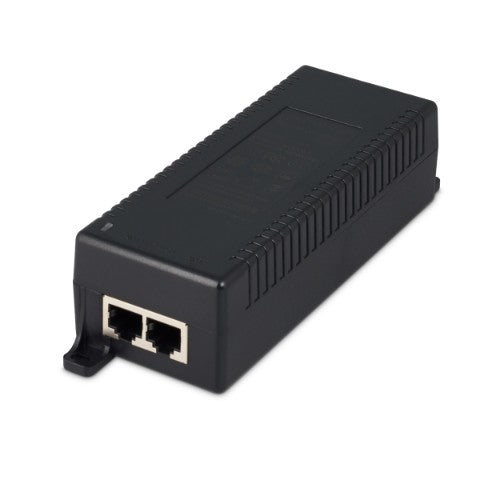

| Packaging content | Includes 1 x radio, 1 x PoE injector PSU and 1 x Tilt and Swivel 3 Axis mounting bracket. |
| Package type | Box |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| System requirements | |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Other features | |
| Polarization | Dual polarization |
| Logistics data | |
| Country of origin | United Kingdom |
| Quantity per pack | 1 pc(s) |
| UK Trade Tariff code | 85176200 |
