L3 Gigabit Switch, 8-port 10/100/1000T PoE+, 2-port 100/1000X SFP, 1-port AC-Input, 1-port PoE-in (supporting PD and PoE pass-through)

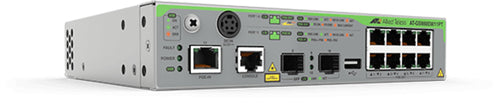

Allied Telesis AT-GS980EM/11PT-50 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Sale price
£876.86
Regular price
£1,001.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- AlliedWare Plus Enterprise-class operating system
- Allied Telesis Autonomous Management Framework™ (AMF) edge node
- Power by PoE from the GS980EM/10H and pass-through PoE to end devices, or power with a separate AC power adapter
- 30W PoE+ per port for connecting and powering end devices
- Active Fiber Monitoring secures uplink connectivity
- Fanless design provides silent operation
- DIN rail and rack-mount options support flexible deployment
Description
Gigabit Layer 3 Lite PoE++/PoE Pass-through Switches The Allied Telesis GS980EM Series of Gigabit Layer 3 Lite PoE++/PoE pass-through switches offer an impressive set of features in a compact design. Ideal for deployment at the network edge, the GS980EM Series feature flexible Power over Ethernet capabilities to support IoT device connectivity in today’s converged business environments. Overview Allied Telesis GS980EM Series are secure and reliable, offering 8 x Gigabit PoE enabled ports and 2 x SFP uplinks, and providing a high value solution for flexible PoE at the network edge. The GS980EM/10H can provide up to 90 Watts (PoE++) on all ports. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting and lighting controllers, and more. The GS980EM/10H requires a PWR300 external power supply to operate and provide PoE power. Up to three PWR300 PSUs can be used to increase the available PoE power. The GS980EM/11PT can supply up to 30 Watts (PoE+) to connected devices. It can be powered by an AC power adapter, or by PoE(1). When deployed together, the GS980EM/11PT can be powered by the GS980EM/10H, while PoE pass-through enables power from the GS980EM/10H to pass through the GS980EM/11PT to power connected end points.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Link aggregation | Yes |
| Flow control support | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN, Voice VLAN |
| Data transmission | |
| Number of VLANs | 4094 |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 16.4 Mpps |
| Optical fiber | |
| Fiber optic connector | SFP |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 8517.62.0050 |
| Export Control Classification Number (ECCN) | 5A992C |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| Rack mounting | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP |
| Security | |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Web-based authentication |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, PEAP, SHA-1, SHA-2, SHA-256, SSH, SSL/TLS, TLS, TTLS |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Routing protocols | OSPF, RIP, RIP-2 |
| Certificates | |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Power | |
| Power consumption (max) | 98 W |
| Power supply included | Yes |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) pass through | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 75 BTU/h |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
| Packaging data | |
| Package width | 417 mm |
| Package depth | 336 mm |
| Package height | 151 mm |
| Package weight | 3.5 kg |
