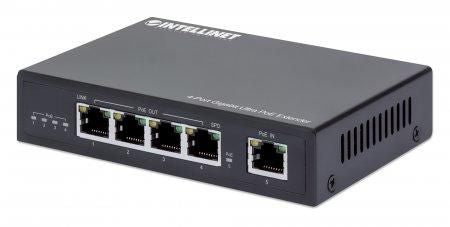

4-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, 90 W PoE Power Budget, Four PSE Ports with up to 30 W Output, IEEE 802.3bt/at/af Compliant, Metal Housing
The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to four output devices via Cat5e or Cat6 cable. This PoE extender does not need an additional power supply since it draws its power from the PoE input.
Reduced Wiring Costs
This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Power over Ethernet 802.3bt Compliant
The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 90 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).
Simple Installation
This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its "PoE In" port to your PoE injector or PoE switch and to connect the "PoE Out" ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).
Intellinet 4-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, 90 W PoE Power Budget, Four PSE Ports with up to 30 W Output, IEEE 802.3bt/at/af Compliant, Metal Housing
MPN:
561617
In stock: 13
Price excluding VAT:
Exc Vat £75.23
Price including VAT:
Inc Vat £90.28
Shipping calculated at checkout.
Details
Key Features
- Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
- Connects and powers four PoE devices such as network cameras, wireless access points or VoIP phones, from one PoE injector or PoE switch PSE port
- Delivers up to 90 W to four connected PoE devices with up to 30 W per port
- Supports 10/100/1000 Mbps data rates
- Total PoE power budget of 90 watts
- Saves time and money by delivering data and power via existing network cables
- PoE awareness, ensuring that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data
- Short-circuit, overload and high-voltage protection
- Grounding point to protect equipment from external electrical surges
- Requires no additional power supply; draws power directly from the PoE input
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
- Compatible with IEEE 802.3at/af-compliant powered devices (PD)
- Functional as a PoE-powered 5-Port Gigabit Switch with PoE Passthrough
- Switch fabric of 10 Gbps
- Supports jumbo frames up to 9 kBytes
- Supports 2048 MAC address entries
- LEDs for PoE and data
- Fanless design ideal for silent operation
- Compact metal case
- Three-year warranty
Description
The Gigabit PoE Extender — for doubling the range of a Gigabit Power over Ethernet connectionThe Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to four output devices via Cat5e or Cat6 cable. This PoE extender does not need an additional power supply since it draws its power from the PoE input.
Reduced Wiring Costs
This Ultra PoE Extender helps avoid the expense of running AC power lines for a wireless access point, network camera or IP phone. Simply connect the PoE Extender to the LAN switch port through existing Cat5e/6/6a cables to deliver DC power as well as transfer data.
Power over Ethernet 802.3bt Compliant
The Intellinet Network Solutions 4-Port Gigabit Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 90 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).
Simple Installation
This PoE Extender was designed to be as easy as possible to set up and use. All it takes to have it up and running is to connect its "PoE In" port to your PoE injector or PoE switch and to connect the "PoE Out" ports to the PoE devices you want to connect (e.g., a VoIP phone and a PoE network camera).
Specifications
| Performance | |
|---|---|
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Flow control support | Yes |
| Duplex system | Full |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Type | Network transmitter |
| Maximum transfer distance | 100 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 10000 Mbit/s |
| Cable types supported | Cat5e |
| Network | |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| Ports & interfaces | |
| Power over Ethernet (PoE) ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 5 |
| Design | |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE |
| Certification | FCC A, CE |
| Product colour | Black |
| Power | |
| Power over Ethernet (PoE) voltage range | 44 - 57 V |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 86 mm |
| Height | 29 mm |
| Weight | 337 g |
| Packaging content | |
| Manual | Yes |
| Technical details | |
| Jumbo frames support | Yes |
| MAC address table | 2048 entries |
| Flow control support | Yes |
| Duplex system | Full |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LED indicators | Activity, Link, PoE |
| Type | Network transmitter |
| Maximum transfer distance | 100 m |
| Power over Ethernet (PoE) | Yes |
| Data transfer rate | 10000 Mbit/s |
| Cable types supported | Cat5e |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC A, CE |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
