1000BTX-1000BSX, POE, 1000B-T, 850nm, MMF, SC, 550m
ADD-GMCP-SX-5SC provides a cost effective conversion from 1000Base Copper to 1000Base-SX fiber, while extending your network reach beyond the 100m reach limitation of copper. AddOn - Network Upgrade Media Converters and Network Interface Cards are 100% compliant for all of our networking needs.

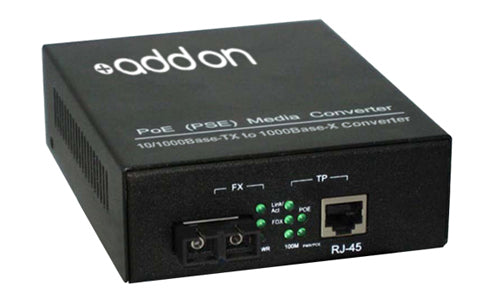

AddOn Networks 1000BTX-1000BSX network media converter 1000 Mbit/s 850 nm Black
Sale price
£127.55
Regular price
£230.74
Taxes included.
Shipping calculated at checkout.
Details
Description
ADD-GMCP-SX-5SC is a 10/100/1000Base-TX to 1000Base-SX media converter, which converts 1000Base Copper to 1000Base-SX via a 850nm multi-mode fiber (MMF) SC Connector, which allows reach distance up to 550m. Complied with IEEE802.3af standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 UTP cable (cable length up to 100meters /330feets). The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection, LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault.ADD-GMCP-SX-5SC provides a cost effective conversion from 1000Base Copper to 1000Base-SX fiber, while extending your network reach beyond the 100m reach limitation of copper. AddOn - Network Upgrade Media Converters and Network Interface Cards are 100% compliant for all of our networking needs.
Specifications
| Network | |
|---|---|
| Fiber optic connector | SC |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Transmission distance (max) | 0.55 km |
| Operating temperature (T-T) | 32 - 122 °F |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Indication | |
| LED indicators | Link, Power, Status |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Design | |
| LED indicators | Link, Power, Status |
| Product colour | Black |
| Internal | No |
| Power | |
| Input voltage | 120 V |
| Input current | 1 A |
| Output voltage | 48 V |
| Output current | 0.54 A |
| Power consumption (typical) | 25 W |
| Colour | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Other features | |
| Transmission distance (max) | 0.55 km |
| Operating temperature (T-T) | 32 - 122 °F |
