1000Base-SX SFP Transceiver, MMF, 850nm, 550m, LC
Agreement (MSA).

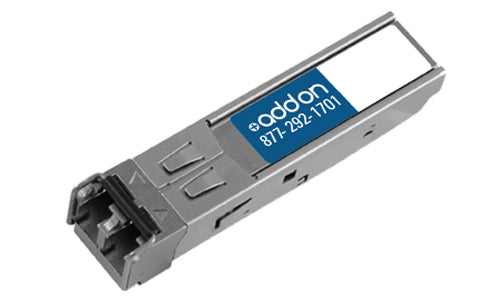

AddOn Networks 1000Base-SX SFP network transceiver module Fiber optic 1250 Mbit/s 850 nm
Sale price
£29.10
Regular price
£52.30
Taxes included.
Shipping calculated at checkout.
Details
Description
AddOn Computers 453151-B21-AO is a multi-mode transceiver small form factor pluggable module for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-SX and Fiber Channel SM-LC-L FC-Pl. This module is designed for multi-mode fiber and operates at a nominal wavelength of 850nm. The transmitter section uses a multiple quantum well laser and is a Class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC. The 453151-B21-AO is designed to be compliant with SFF-8472 SFP Multi-sourceAgreement (MSA).
Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Performance | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 62.5/125 µm |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
