1000BASE-LX SFP transceiver module, SMF, Optical monitoring capable, Brocade compatible
All our SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds
- 100% OEM Compatible
- 100% Tested
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant

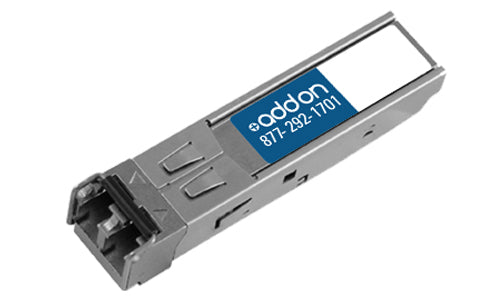

AddOn Networks 1000BASE-LX SFP network transceiver module Fiber optic 1000 Mbit/s 1310 nm
Sale price
£17.11
Regular price
£61.32
Taxes included.
Shipping calculated at checkout.
Details
Description
Add-On's Small Form Factor Pluggable (SFP) transceivers are designed to exceed OEM system requirements. All products are guaranteed 100% compatible and will not void OEM Service/support programs. Our SFP Transceivers utilize industry standard bi-directional serial optical data communication protocols such as Gigabit Ethernet or Fiber Channel reaching speeds up to 8Gbps.All our SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet and Gigabit Ethernet speeds
- 100% OEM Compatible
- 100% Tested
- Conforms to IEEE 802.3z standard
- Class 1 Laser Product Compliant with the Requirements of IEC 60825-1 and IEC 60825-2
- Compliant with Multi-Source Agreement (MSA)
- RoHS Compliant
Specifications
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Cabling technology | 1000BASE-LX |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Cabling technology | 1000BASE-LX |
| Compliance certificates | RoHS |
| Performance | |
| Hot-Plug support | Yes |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Cabling technology | 1000BASE-LX |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LX |
| Features | |
| Hot-Plug support | Yes |
| Certification | MSA |
| Power | |
| Input voltage | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Certificates | |
| Certification | MSA |
