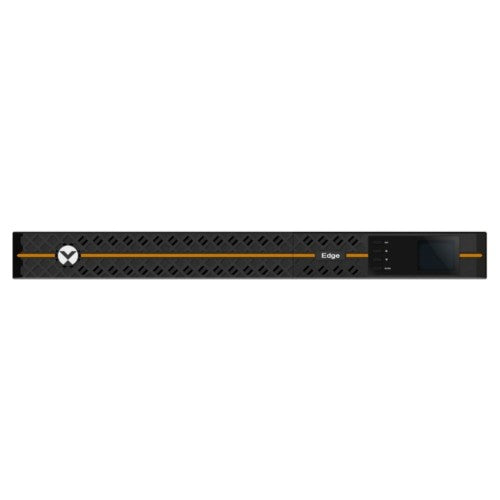

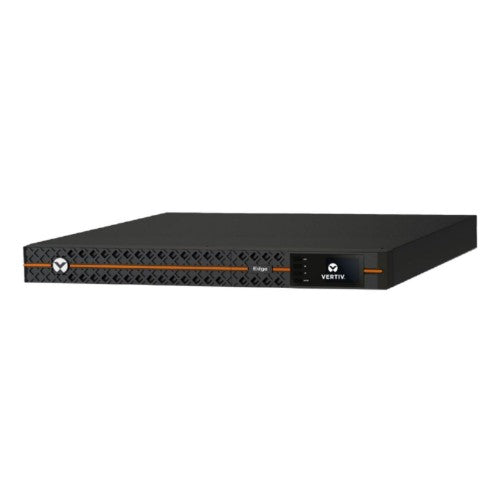

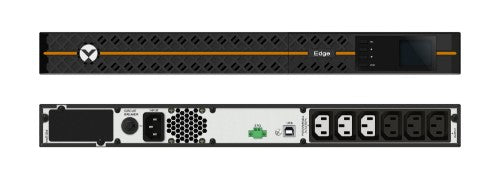

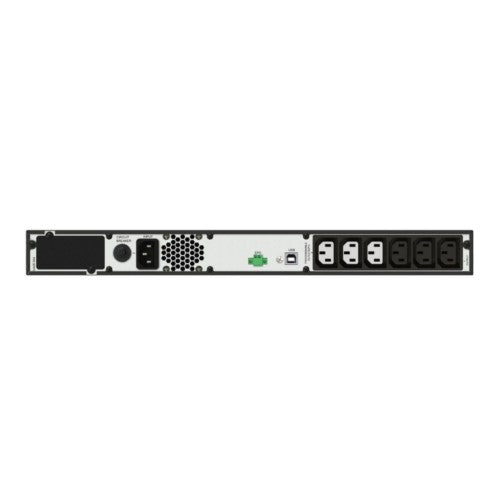

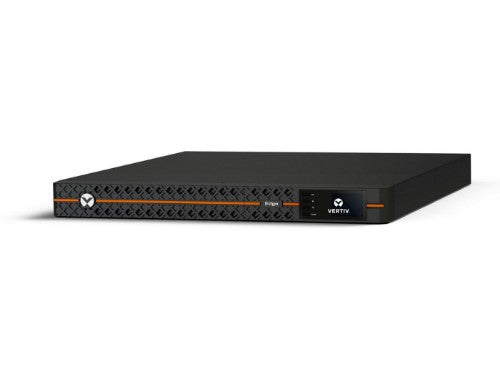

Edge UPS - 1500VA 1350W 230V 1U Line Interactive AVR Rack Mount Battery Backup Single Phase|0.9 PF (EDGE-1500IRM1U)
Vertiv Liebert Edge Uninterruptible Power Supply (UPS) - 1500VA 1350W 230V 1U Line Interactive AVR Rack Mount | 0.9 PF
Sale price
£476.34
Regular price
£627.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 1500VA UPS with advanced AVR for a more stable output voltage regulation
- This line interactive UPS has 0.9 output power factor ensuring more active power to protect larger loads
- Get similar features as a 2U battery backup in a compact 1U rack space
- Add a communication card to this single phase UPS to manage devices remotely
- Get 6 total outlets with 3 programmable outlets to prioritize critical loads and achieve longer runtime
Description
The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With compact 1U rack format, this 1500VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen.Specifications
| Power | |
|---|---|
| Output power | 1350 W |
| Input operation voltage (min) | 166 V |
| Input operation voltage (max) | 278 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 624 J |
| Efficiency | 97% |
| Output power capacity | 1.5 kVA |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Features | |
| Country of origin | China |
| UPS topology | Line-Interactive |
| Waveform | Pure sine |
| Output power | 1350 W |
| Input operation voltage (min) | 166 V |
| Input operation voltage (max) | 278 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 624 J |
| Efficiency | 97% |
| Output power capacity | 1.5 kVA |
| Input frequency | 45/65 Hz |

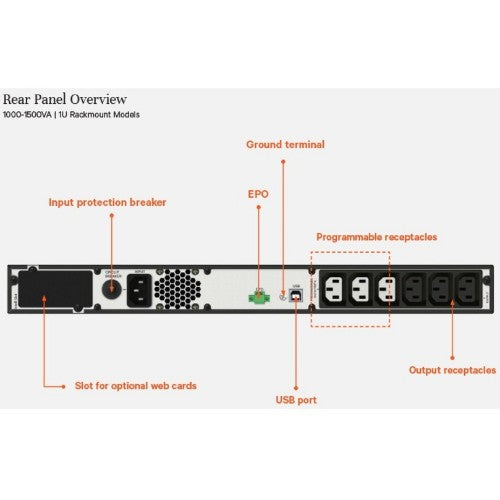

| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Battery | |
| Battery recharge time | 3 h |
| Design | |
| Country of origin | China |
| Rack capacity | 1U |
| Form factor | Rackmount |
| Product colour | Black |
| Safety | IEC/EN62040-1 |
| Certification | CE, CB Report, EAC, RCM, UKCA |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 570 mm |
| Package depth | 780 mm |
| Package height | 200 mm |
| Weight | 23 kg |
| Width | 438 mm |
| Package weight | 30 kg |
| Height | 43 mm |
| Depth | 600 mm |
| Packaging data | |
| Package width | 570 mm |
| Package depth | 780 mm |
| Package height | 200 mm |
| Package weight | 30 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Safety | IEC/EN62040-1 |
| Certification | CE, CB Report, EAC, RCM, UKCA |
