2 x 10/100/1000 Mbps (PoE) RJ-45, 3 x 10/100/1000 Mbps RJ-45, 10 Gbps, 7.44 Mpps, 2K MAC, 150 x 97 x 28 mm
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.

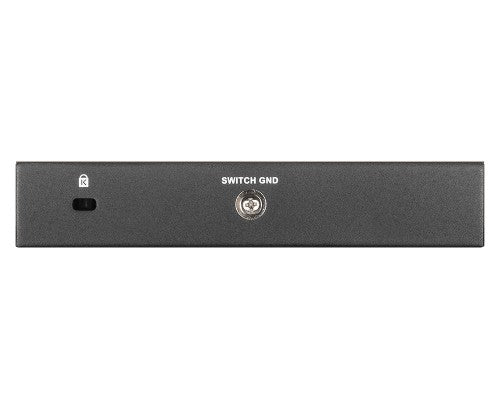

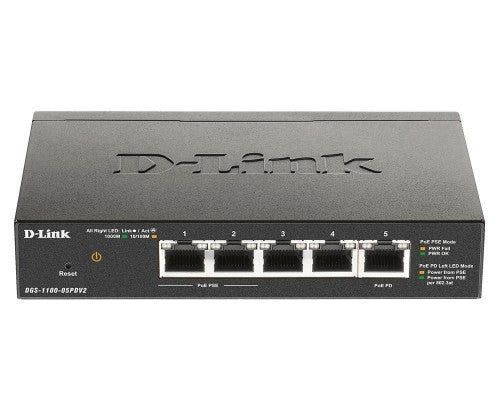

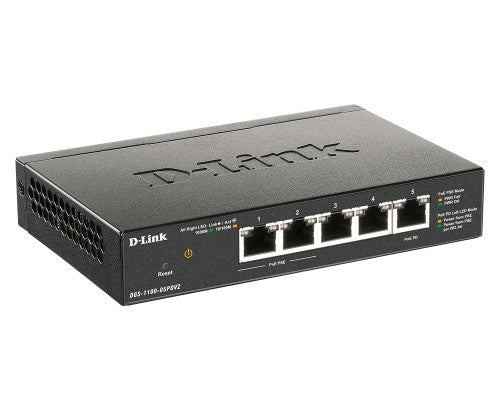

D-Link 5-Port Gigabit PoE Smart Managed Switch with 1 PD port
Sale price
£50.48
Regular price
£67.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- 5 x 10/100/1000BASE-T ports
- Powered by IEEE 802.3af/at PoE through port 5
- Supports PoE Pass-through (ports 1 and 2 only)
- Compact design for convenient placement
- Fanless design for silent operation
- Innovative D-Link Green energy saving features
- Complete web interface for comprehensive switch management
Description
Advanced Security FeaturesThe DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Flow control support | Yes |
| Ethernet LAN data rates | 10000 Mbit/s |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Virtual LAN features | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| IGMP entries | 128 |
| Data transmission | |
| Jumbo frames | 9216 |
| Packet buffer memory | 1 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Number of trunks | 1 |
| Number of queues | 4 |
| Forwarding rate | 7.44 Mpps |
| Number of VLANs | 4094 |
| Security | |
| Static port security | Yes |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| MAC address entries | Static MAC address entries |
| IGMP entries | 128 |
| DHCP features | DHCP client |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Performance | |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 2357475 h |
| Flash memory | 2 MB |
| Fanless | Yes |
| Packet buffer memory | 1 MB |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 24.08 W |
| Power supply included | No |
| Power consumption (typical) | 3.24 W |
| Power source | PoE |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 18 W |
| Power over Ethernet (PoE) ports quantity | 2 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 97 mm |
| Height | 28 mm |
| Weight | 380 g |
| Technical details | |
| Product colour | Black |
| Noise level | 0 dB |
| Mean time between failures (MTBF) | 2357475 h |
| Rack mounting | No |
| Compliance certificates | BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI |
| Memory | |
| Packet buffer memory | 1 MB |
| Flash memory | 2 MB |
| Certificates | |
| Compliance certificates | BSMI, CB, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI |
| Other features | |
| Ethernet LAN data rates | 10000 Mbit/s |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
