15.6" 1920 x 1080 TFT LCD (LED), 180 nits, 30 ms, Anti-glare, 16:9, PCAP, USB, VGA, HDMI
Touchscreen Monitor
The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You.
One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.
Elo Touch Solutions E155645 Signage Display 39.6 cm (15.6") LED Full HD Black Touchscreen
£439.45
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- PCAP (Projected Capacitive) - 10 Touch
- Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port (FHD Model only)
- Monitor Thickness: 1.28" / 32.4 mm panel depth
Description
Elo’s 1502LTouchscreen Monitor
The Elo 1502L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1502L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection
The 1502L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You.
One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Mount with Flexibility
Customers demand a seamless shopping experience from their first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party kiosk enclosures, the touchscreens can be integrated with ease.
Specifications
| Display | |
|---|---|
| Panel type | TFT |
| Display number of colours | 262144 colours |
| Touchscreen | Yes |
| Display technology | LED |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Response time | 30 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Vertical scan range | 50 - 75 Hz |
| Supported graphics resolutions | 640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+) |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 31.5 - 82 kHz |
| Anti-glare screen | Yes |
| Ports & interfaces | |
| DC-in jack | Yes |
| HDMI ports quantity | 1 |
| Audio | |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product colour | Black |

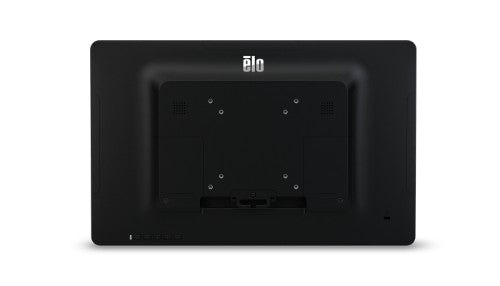

| Panel mounting interface | 75 x 100 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Performance | |
| International Protection (IP) code | IPX1 |
| On Screen Display (OSD) | Yes |
| Power | |
| Power consumption (off) | 0.2 W |
| Power consumption (typical) | 9.5 W |
| Power consumption (standby) | 1.87 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 12 kWh |
| Weight & dimensions | |
| Width (with stand) | 284.6 mm |
| Height (with stand) | 387 mm |
| Depth (with stand) | 199.1 mm |
| Weight (with stand) | 3.05 kg |
| Packaging data | |
| Package width | 204 mm |
| Package depth | 451 mm |
| Package height | 344 mm |
| Package weight | 5.01 kg |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-C |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC, HDMI, USB Type-A to USB Type-C |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Panel type | TFT |
| Package type | Box |
| Weight (with stand) | 3.05 kg |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Panel type | TFT |
| Package type | Box |
| Width (with stand) | 284.6 mm |
| Viewable size, vertical | 19.4 cm |
| Viewable size, horizontal | 34.4 cm |
| Height (with stand) | 387 mm |
| Display technology | LED |
| Depth (with stand) | 199.1 mm |
| DC-in jack | Yes |
| Quick start guide | Yes |
| Weight (with stand) | 3.05 kg |
| Energy efficiency scale | A to G |
