NWA110AX, Single Pack 802.11ax AP, incl Power Adaptor, EU and UK, Unified AP, ROHS, WIFI 6
NWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.

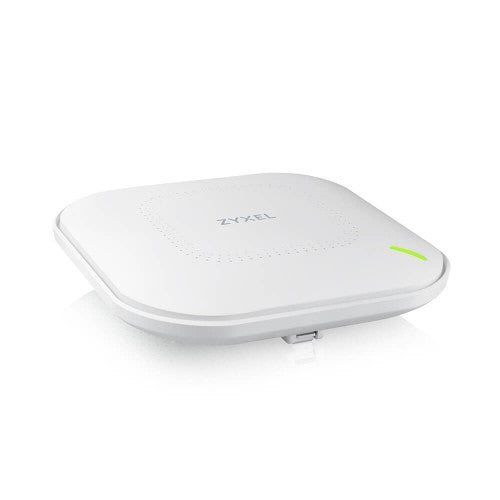

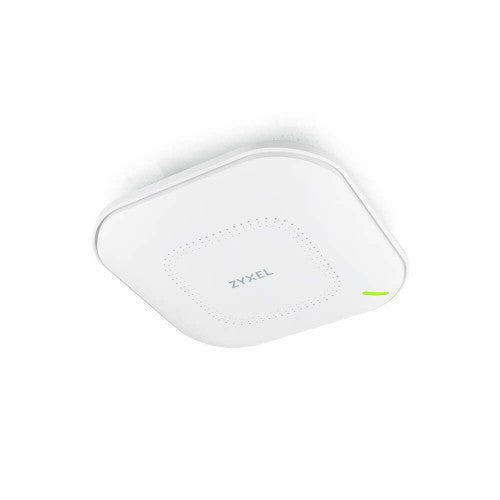

Zyxel NWA110AX 1000 Mbit/s White Power over Ethernet (PoE)
MPN:
NWA110AX-EU0102F
In stock: 39
Price excluding VAT:
Exc Vat £128.73
Price including VAT:
Inc Vat £154.48
Shipping calculated at checkout.
Details
Description
WiFi 6, Wait No MoreNWA110AX The Best Deal of 11ax Access Point
True WiFi 6
The NWA110AX is truly the next generation of wireless (WiFi 6) AP for businesses looking for a most economical upgrade path to 11ax. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO which can’t be found in earlier releases of 802.11ax products.
Simpler upgrade path
The NWA110AX has been designed to be highly efficient in PoE budget, allowing for an easy upgrade path for those wishing to experience all that WiFi 6 has to offer without the need to upgrade existing PoE+ switches
Manage it your way!
As it comes with support for NebulaFlex, Zyxel’s scalable, cloud-based management system, the NWA110AX can be managed via NCC (Nebula control Center) or simply operate alone (controller less). You can choose the way that is best suited to your needs.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| On/off switch | Yes |
| Transmitting power | 22 dBmW |
| Reset button | Yes |
| Bandwidth | 0.08 GHz |
| Frequency band | 2.412 - 2.472, 5.470 - 5.725 GHz |
| Web-based management | Yes |
| VLAN support | Yes |
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
| Maximum data transfer rate | 1000 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Wireless LAN features | |
| Frequency band | 2.412 - 2.472, 5.470 - 5.725 GHz |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth | |
| Bandwidth | 0.08 GHz |
| Management features | |
| VLAN support | Yes |
| Web-based management | Yes |
| Command-line interface (CLI) | Yes |
| Certificates | |
| Certification | FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Automatic channel selection | Yes |
| Transmitting power | 22 dBmW |
| Bandwidth | 0.08 GHz |
| Frequency band | 2.412 - 2.472, 5.470 - 5.725 GHz |
| VLAN support | Yes |
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Maximum data transfer rate | 1000 Mbit/s |
| Fast roaming | Yes |
| Automatic channel scanning | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Virtual LAN features | SSID-based VLAN assignment |
| Security | |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-Enterprise, WPA3 |
| Protocols | |
| Routing protocols | IP |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Power | |
| Power consumption (typical) | 17 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| AC input voltage | 5 - 12 V |
| Design | |
| Placement | Ceiling, Table, Wall |
| On/off switch | Yes |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893 LP0002 EMC FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 Safety Safety EN 60950-1 IEC 60950-1 BSMI CNS14336-1 |
| WPS push button | Yes |
| Antenna | |
| Antenna type | Internal |
| Polarization | Dual polarization |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
| Antenna features | Integrated antenna |
| Technical details | |
| Transmitting power | 22 dBmW |
| Reset button | Yes |
| Receiver sensitivity | Min. Rx sensitivity up to -101 dBm |
| Polarization | Dual polarization |
| WPS push button | Yes |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Yes |
| Software | |
| Automatic channel scanning | Yes |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 180 mm |
| Depth | 180 mm |
| Weight | 453 g |
| Height | 39 mm |
| Package width | 229 mm |
| Package depth | 216 mm |
| Package height | 64 mm |
| Package weight | 770 g |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package width | 229 mm |
| Package depth | 216 mm |
| Package height | 64 mm |
| Package weight | 770 g |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| AC adapter included | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| Polarization | Dual polarization |
| WPS push button | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
