L3 Gigabit Switch, 8-port 10/100/1000T PoE++, 2-port 100/1000X SFP, 3-port DC-Input, One designated PWR300 requires at least (as supports up to 3)

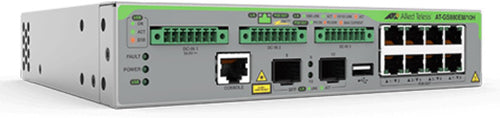

Allied Telesis AT-GS980EM/10H Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Sale price
£949.14
Regular price
£1,106.00
Taxes included.
Shipping calculated at checkout.
Details
Key Features
- AlliedWare Plus Enterprise-class operating system
- Allied Telesis Autonomous Management Framework™ (AMF) edge node
- 90W PoE++ per port for high power devices, or for powering the GS980EM/11PT and its connected devices with PoE pass-through
- Triple external PSUs provide power resilience and up to 720W capacity, and simplify UPS backup of the business network
- Active Fiber Monitoring secures uplink connectivity
- Fanless design provides silent operation
- DIN rail and rack-mount options support flexible deployment
Description
Gigabit Layer 3 Lite PoE++/PoE Pass-through Switches The Allied Telesis GS980EM Series of Gigabit Layer 3 Lite PoE++/PoE pass-through switches offer an impressive set of features in a compact design. Ideal for deployment at the network edge, the GS980EM Series feature flexible Power over Ethernet capabilities to support IoT device connectivity in today’s converged business environments. Overview Allied Telesis GS980EM Series are secure and reliable, offering 8 x Gigabit PoE enabled ports and 2 x SFP uplinks, and providing a high value solution for flexible PoE at the network edge. The GS980EM/10H can provide up to 90 Watts (PoE++) on all ports. This enables powering high power devices such as high resolution PTZ cameras with heater/blowers for outdoor applications, enhanced infrared lighting and lighting controllers, and more. The GS980EM/10H requires a PWR300 external power supply to operate and provide PoE power. Up to three PWR300 PSUs can be used to increase the available PoE power. The GS980EM/11PT can supply up to 30 Watts (PoE+) to connected devices. It can be powered by an AC power adapter, or by PoE(1). When deployed together, the GS980EM/11PT can be powered by the GS980EM/10H, while PoE pass-through enables power from the GS980EM/10H to pass through the GS980EM/11PT to power connected end points.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Configuring Location Settings (CLI) | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Virtual LAN features | Private VLAN |
| Data transmission | |
| Multicast MAC address table | 2000 entries |
| Number of VLANs | 4094 |
| Jumbo frames | 10000 |
| Latency (10-100 Mbps) | 5.4 µs |
| Latency (1 Gbps) | 3 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 24 Gbit/s |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Forwarding rate | 14.9 Mpps |
| Performance | |
| Packet buffer memory | 1.5 MB |
| Stackable | No |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Export Control Classification Number (ECCN) | 5A992C |
| Technical details | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| Rack mounting | Yes |
| Ports & interfaces | |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q, IEEE 802.1v, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Flow control support | Yes |
| 10G support | No |
| Policy-based routing | Yes |
| Virtual LAN features | Private VLAN |
| Security | |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Guest VLAN |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, DES, MD5, SHA-1, SHA-2, SHA-256 |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Password protection | Yes |
| Authentication type | AAA |
| DHCP features | DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Multicast features | |
| Multicast MAC address table | 2000 entries |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | OSPF, RIP |
| Certificates | |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Design | |
| Form factor | 1U |
| Product colour | Grey |
| Stackable | No |
| LED indicators | Yes |
| Electromagnetic compatibility | EN55032 A, FCC A, VCCI A, ICES-003 A |
| Certification | EN55024, EN61000-3 UL60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN60950-1, EN60825-1, AS/NZS 60950.1 UL, cUL RoHS |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -25 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 180 mm |
| Height | 42.5 mm |
| Weight | 1.6 kg |
| Packaging data | |
| Package width | 417 mm |
| Package depth | 336 mm |
| Package height | 151 mm |
| Package weight | 2.7 kg |
