UFiber Instant Optical Transceiver, SFP, 20 km, 2 W, 69.46 x 13.70 x 11.30 mm, 30 g

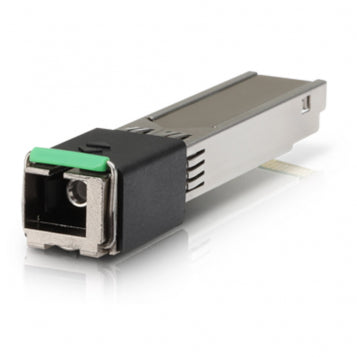

Ubiquiti UF-Instant network transceiver module Fiber optic 2.488 Mbit/s SFP
MPN:
UF-INSTANT
Low stock: 2
£36.80
VAT included.
Shipping calculated at checkout.
Details
Key Features
- High-Performance GPON CPE
- Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream GPON structure
- Supports up to 20 km GPON Links
- Powerful Layer 2/3 Management Features
- (1) GPON WAN Port, SC/APC
- (1) 1Gbps SFP interface
Description
The U Fiber Instant is a high‑performance GPON CPE in the form factor of an SFP module. It features an SGMII Ethernet LAN port and is powered by SFP.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum transfer distance | 20000 m |
| Tx power (min) | 1.5 dBmW |
| Tx power (max) | 5 dBmW |
| Rx power (min) | -28 dBmW |
| Rx power (max) | 8 dBmW |
| Maximum data transfer rate | 2.488 Mbit/s |
| Interface type | SFP |
| Product colour | Black, Metallic |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Black, Metallic |
| Certification | CE, FCC, IC |
| Power | |
| Input voltage | 3.3 V |
| Power consumption (typical) | 2 W |
| Certificates | |
| Certification | CE, FCC, IC |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Network | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 2.488 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 69.5 mm |
| Depth | 13.7 mm |
| Height | 11.3 mm |
| Weight | 30 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Maximum transfer distance | 20000 m |
| Tx power (min) | 1.5 dBmW |
| Tx power (max) | 5 dBmW |
| Rx power (min) | -28 dBmW |
| Rx power (max) | 8 dBmW |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
