86BH5F, 86", IPS, 58:9, 3840 x 600, 500 cd/m2, 178 x 178
The 86-inch Ultra Stretch Signage 86BH5F is the ideal digital display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring virtually any unused and leftover space to life where conventional digital signage would not fit.
58:9 Extended Wide Format
The unique bar-type 58:9 wide screen provides much more flexibility in playing content than a conventional display with 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multiple content on one display by dividing it in up to four parts. It is very useful and convenient for delivering various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene with up to 15x15 configuration. This is the best choice if you want to use a large screen, or provide high visual impact to your customers in a different way.
IP5X Certified Design
The IP5X Dustproof Certification ensures that the product is protected from dust, virtually eliminating the risk of performance degradation.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, the LG webOS Signage platform enhances user convenience with an intuitive GUI.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with Signage365Care
Easier and faster maintenance is available with Signage365Care,* our optional cloud service solution for remotely monitoring and managing the operating status of signage displays installed in client workplaces. It provides fault diagnosis and remote-control service, ensuring the stable operation of a client’s business.

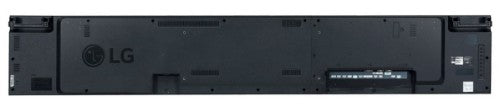

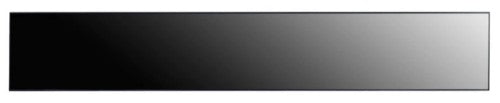

LG 86BH5F Digital signage display 2.18 m (86') IPS 500 cd/m² Black
Sale price
£2,920.39
Regular price
£5,947.02
Taxes included.
Shipping calculated at checkout.
Details
Description
Ultra Stretch Signage, 58:9 Space-Fitting Wide ScreenThe 86-inch Ultra Stretch Signage 86BH5F is the ideal digital display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring virtually any unused and leftover space to life where conventional digital signage would not fit.
58:9 Extended Wide Format
The unique bar-type 58:9 wide screen provides much more flexibility in playing content than a conventional display with 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multiple content on one display by dividing it in up to four parts. It is very useful and convenient for delivering various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene with up to 15x15 configuration. This is the best choice if you want to use a large screen, or provide high visual impact to your customers in a different way.
IP5X Certified Design
The IP5X Dustproof Certification ensures that the product is protected from dust, virtually eliminating the risk of performance degradation.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, the LG webOS Signage platform enhances user convenience with an intuitive GUI.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with Signage365Care
Easier and faster maintenance is available with Signage365Care,* our optional cloud service solution for remotely monitoring and managing the operating status of signage displays installed in client workplaces. It provides fault diagnosis and remote-control service, ensuring the stable operation of a client’s business.
Specifications
| Display | |
|---|---|
| Display technology | IPS |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 600 pixels |
| Display brightness | 500 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 1100:1 |
| Contrast ratio (dynamic) | 500000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Panel life | 50000 h |
| Native aspect ratio | 58:9 |
| Ports & interfaces | |
| DisplayPorts out | 1 |
| USB port | Yes |
| DisplayPorts in | 1 |
| DisplayPorts quantity | 2 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| Audio (L/R) in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 interface | Yes |
| USB version | 2.0 |
| USB ports quantity | 2 |
| Design | |
| Product design | Digital signage flat panel |
| Bezel width (top) | 5.9 mm |
| Bezel width (side) | 4.4 mm |
| Bezel width (bottom) | 5.9 mm |
| Product colour | Black |
| Panel mounting interface | 600 x 200 mm |
| Certification | CB, NRTL, FCC Class "A", CE, KC, ErP |
| VESA mounting | Yes |
| Performance | |
| Purpose | Retail |
| Panel life | 50000 h |
| Power | |
| Power consumption (typical) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 143 kWh |
| Weight & dimensions | |
| Width | 2158.3 mm |
| Depth | 81.7 mm |
| Height | 348.5 mm |
| Weight | 20.5 kg |
| Packaging data | |
| Package width | 2290 mm |
| Package depth | 228 mm |
| Package height | 599 mm |
| Package weight | 38.2 kg |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | DisplayPort |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | DisplayPort |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 85% |
| Certificates | |
| Certification | CB, NRTL, FCC Class "A", CE, KC, ErP |
| Technical details | |
| VESA mounting | Yes |
| DisplayPorts out | 1 |
| DisplayPorts in | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| DisplayPorts out | 1 |
| DisplayPorts in | 1 |
| Display technology | IPS |
| Bezel width (top) | 5.9 mm |
| Bezel width (side) | 4.4 mm |
| Bezel width (bottom) | 5.9 mm |
| Energy efficiency scale | A to G |
